Product Introduction
The Pro-Face 3620003-05 is the OEM internal manufacturing/assembly model number for the high-performance APL3700 series 15-inch industrial Panel PC / operator interface monitor. Built by Digital Electronics Corporation (Pro-Face), this heavy-duty terminal acts as a primary operator interface for complex PLC networks, SCADA visualization node points, and localized machinery control.
Designed to thrive in harsh manufacturing environments, the 3620003-05 features a rugged front bezel rated for NEMA 4X/IP65 washdown protection when panel-mounted, an analog resistive touchscreen, and an isolated internal power supply stage. It provides real-time monitoring and parameter input for high-speed automated assembly lines without risking system lockups from plant electrical noise or thermal buildup.
Key Technical Specifications
| Parameter | Specification |
| Board / Assembly Model | 3620003-05 |
| System Series Designation | APL3700 Series (e.g., APL3700-KFM-BLD / APL3700-KA) |
| Display Panel | 15.0-inch TFT Color LCD (1024 × 768 XGA resolution) |
| Touch Screen Technology | High-Resolution Analog Resistive Overlay |
| Internal Power Ratings | +12V DC @ 2.5A, +5V DC @ 1A, +3.3V DC @ 1A |
| Main Power Supply Unit | AC 100–240V, 50/60 Hz (via integrated rear power block model like 3582302-01) |
| Max Ambient Operating Temp | 50°C (122°F) |
| Housing / Enclosure Class | IP65 / NEMA Type 4X / 12 equivalent front panel rating |
Application Scenarios & The “Trench” Experience
The “Trench” Reality
When a 15-inch APL3700 unit loses its backlight or suffers touchscreen calibration drift during mid-production, replacing the entire enclosure or re-engineering the enclosure cut-out is a time-consuming nightmare. Locating the exact board revision—marked internally or on the rating label as 3620003-05—allows field service engineers to perform direct chassis swaps or internal assembly repairs without modifying panel cutouts, rewiring communication drops, or translating software runtime licenses.
Target Applications
- Automotive Body & Weld Shops: Serving as a main operator station for robotics cell monitoring, safety zone interlocks, and weld quality logging.
- Marine Engine Room Automation: Mounted in centralized control rooms for generator monitoring, fuel trim oversight, and alarm telemetry.
- Chemical & Batch Processing: Providing process control views (temperatures, valve states, flow rates) in environments prone to ambient dust or moisture.

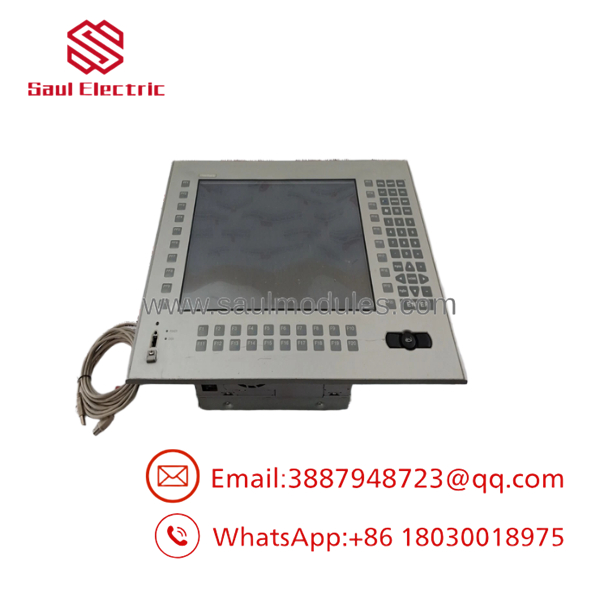

3620003-05

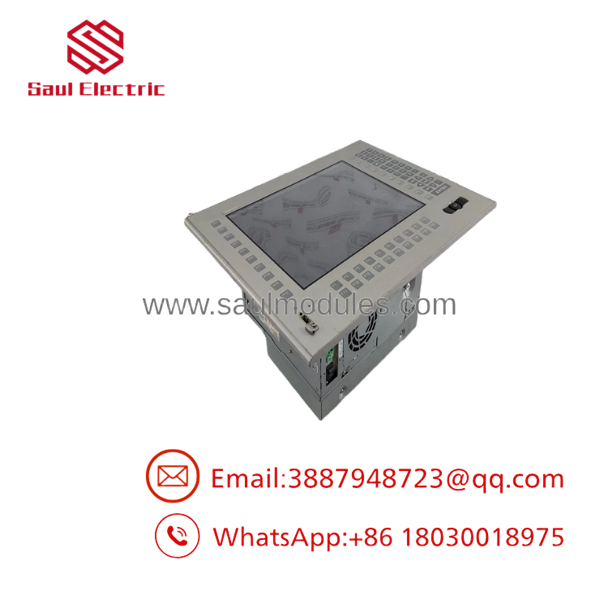

3620003-05
Transparency SOP: Quality Assurance & Testing
Before shipping pre-owned or refurbished 3620003-05 hardware:
- Visual & Internal Mechanical Check: Inspection for cracked front overlays, seal degrade, corroded board traces, or bulging capacitors on the internal power board.
- Voltage & Power Rail Testing: Bench testing the 12V, 5V, and 3.3V internal distribution lines under load to confirm power delivery stability.
- Touch Grid & Display Burn-In: Performing full multi-point touch matrix calibration, checking CCFL/LED backlight consistency, and running a 24-hour visual stress test.
- I/O & Expansion Bus Diagnostics: Testing all active serial, Ethernet, and expansion interfaces for packet loss under continuous polling conditions.
- ESD Packaging & Secure Shipping: Cleaning the bezel and vacuum-sealing the unit inside heavy anti-static foam containment.
The Veteran’s Tech Trap Guide
⚠️ Trap 1: Assembly Part Number vs. Full System Part Number
The number 3620003-05 often appears on internal stickers or component plates within the APL3700 family. Always cross-check the full model code on the outer cabinet sticker (e.g., -KFM-BLD or -KA...) to confirm drive type, memory size, and expansion board options match your existing machine setup.
❗ Trap 2: SRAM Data & Battery Backup
If swapping in a replacement panel that has been stored long-term, replace the internal 3V coin cell battery before applying main power. A dead CMOS/SRAM battery can wipe retentive recipe data and trigger BIOS halt errors upon boot.
⚠️ Trap 3: Gasket Integrity during Panel Re-Installation
Never re-use a flattened or chemical-degraded rubber sealing gasket. Water or oil mist entering through a loose panel cutout seal will drop straight into the display inverter board at the bottom of the 3620003-05 assembly, causing short circuits.
Frequently Asked Questions
Q: What is the difference between Pro-Face 3620003-05 and ?
3620003-05 is the sub-assembly or internal hardware model code assigned by Digital Electronics Corp. (Pro-Face), whereas represents the commercial product series name for the 15-inch industrial computer.
Q: Can I transfer my existing project software to a replacement 3620003-05 panel?
Yes. If the underlying operating system and hardware configuration match, moving your CF card, hard disk, or transferring the runtime application via Pro-Face GP-Pro EX / Pro-Control software will restore normal operation without requiring software re-programming.
Q: What power supply does this module require?
The internal board assembly uses 12V DC, 5V DC, and 3.3V DC rails. The overall terminal housing receives standard 100–240V AC line power through its built-in internal power module.
