PRO-FACE PFXSP5800WCD SP5000 Premium HMI 19 Inch Wide Display

Product Introduction & Engineering Value

Large operator interfaces create different engineering challenges. Screen visibility, touch response, mounting space, and long-term reliability all become important when equipment operators depend on the HMI every minute of production.

The PRO-FACE PFXSP5800WCD is designed as a premium display module for the SP5000 modular HMI platform. It provides a 19-inch wide FWXGA display, projected capacitive touch technology, automatic scaling, and a brightness sensor for applications requiring a larger visualization area.

This unit is a display module, not a complete standalone HMI. It requires an SP5000 Box Module such as an SP-5B series unit to form a complete operating system. Compatibility between display module and box module must be confirmed before installation.

Technical Specifications

The SP-5800WC specifications include a 19-inch wide FWXGA display, projected capacitive 5-point touch, brightness sensor, DC12–24V input, USB interfaces, and industrial panel protection ratings.

Field Application & the “Trench” Experience

A machine builder upgraded a large operator station on a production line where operators monitored multiple process screens simultaneously. The existing HMI hardware was still functional, but the 10-inch display size limited visibility of alarms, trends, and production data.

The engineering team selected:

PRO-FACE PFXSP5800WCD
SP-5800WC Premium Display Module

Before installation, they verified:

• Existing SP5000 Box Module compatibility
• GP-Pro EX project compatibility
• Panel cutout dimensions
• DC24V power availability
• USB front access requirements

After commissioning, operators could view more process information without excessive screen switching.

Typical applications:

• Large machine control consoles
• Production monitoring stations
• Process visualization panels
• Packaging line operator terminals
• Assembly equipment control rooms

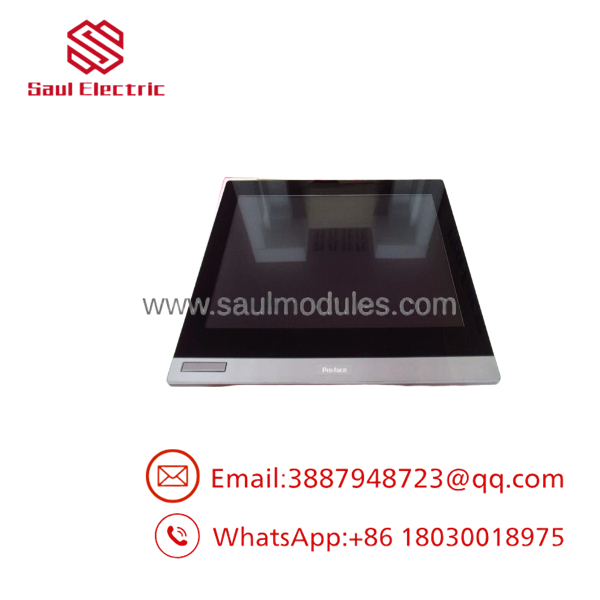

PFXSP5800WCD

Transparency SOP: QA & Testing

A display module requires more than a simple power-on check.

Inspection and Test Procedure

1. Identification Verification

Confirm:

• PRO-FACE label
• Model:
  • PFXSP5800WCD
  • SP-5800WC
• Serial information

2. Display Quality Test

Check:

• Full-screen image output
• Color uniformity
• Brightness adjustment
• Pixel condition
• Backlight operation

3. Touch Function Test

Verify:

• Five-point touch response
• Touch calibration
• Entire active area response

4. Interface Testing

Test:

• USB Type-A port
• USB Mini-B connection
• Communication with compatible SP5000 Box Module

5. Mechanical Inspection

Inspect:

• Front bezel condition
• Mounting brackets
• Connector condition
• Protective cover

A tested spare display should include evidence of image quality and touch performance, not only cosmetic inspection.

The Veteran’s Tech Trap Guide

⚠️ Do not treat PFXSP5800WCD as a complete HMI replacement.

This is only the display module.

A complete SP5000 system requires:

• Display Module
• Box Module
• Application project

Replacing only the screen does not replace the processing hardware.

⚠️ Check Box Module compatibility before ordering.

The platform uses a modular structure. Some older Box Modules are not compatible with premium displays such as SP-5800WC.

⚠️ PRO TIP: Protect the original GP-Pro EX project.

The display hardware contains no machine sequence logic. The actual operator screens, alarms, recipes, and communication settings are stored in the HMI project.

⚠️ Do not ignore touch technology differences.

The SP-5800WC uses projected capacitive touch:

• Better suited for finger operation
• Supports multi-touch gestures
• Different from resistive touch panels used in older PRO-FACE HMIs

Operator workflow testing is recommended after migration.

Dynamic FAQ

Q1. What is PRO-FACE PFXSP5800WCD?

The PRO-FACE is the SP-5800WC Premium Display Module for the Series HMI platform. It is a 19-inch wide industrial touchscreen display.

Q2. Is a complete HMI?

No. It is a display module only. A compatible Box Module is required to create a complete HMI system.

Q3. What is the screen resolution?

The display resolution is:

1366 × 768 pixels (FWXGA)

with a 19-inch wide TFT color LCD panel.

Q4. What type of touchscreen does it use?

It uses:

Projected Capacitive Touch

with support for five simultaneous touch points.

Q5. What power supply does require?

The display module requires:

12–24VDC

with an allowable range of:

10.8–28.8VDC.

Q6. Can replace older PRO-FACE HMIs?

Only after checking:

• Mechanical dimensions
• Box Module compatibility
• GP-Pro EX project conversion
• Communication requirements

Q7. Is New Surplus available?

Availability depends on industrial spare inventory. display modules are commonly sourced through automation spare suppliers, surplus inventory, and refurbishment channels.

Q8. What should buyers verify before purchasing?

Recommended checks:

• Actual display photos
• Model label confirmation
• Power-on image test
• Touchscreen test record
• Compatible Box Module information
• Warranty terms

For modular HMIs, matching the exact display and processing module combination is critical to avoid commissioning delays.
