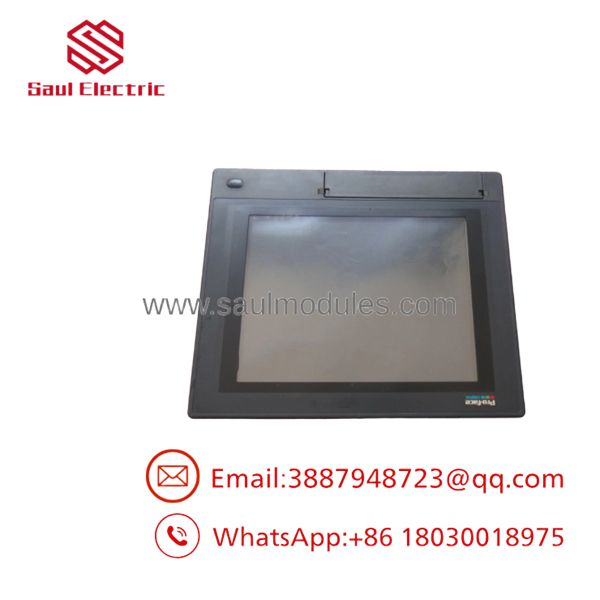

Pro-face PL6921-T41 2780054-03 Panel Computer 12.1 Inch Industrial IPC

Product Introduction & Engineering Value

Aging industrial computers often fail long before the machine they control reaches the end of its useful life. Storage devices, operating systems, and legacy expansion hardware become the weak points.

The PRO-FACE PL6921-T41 was built for long-running automation systems where reliability and compatibility with existing applications were more important than frequent hardware upgrades. It combines a 12.1-inch TFT display, industrial PC hardware, and panel-mount design in a single enclosure.

This model is part of the discontinued PL-x920 Series. The original unit reached end of sales on June 29, 2007, with repair support ending January 10, 2014. Modern replacement paths include newer PRO-FACE PS6000 Series panel PCs, but migration requires software and mechanical verification.

Technical Specifications

The PL6921-T41 specifications include a 12.1-inch SVGA TFT display, Intel Pentium III 700MHz processor, SDRAM expansion capability, AC100–240V input, and IP65F-equivalent front protection when installed in a panel.

PL6921-T41 2780054-03

Field Application & the “Trench” Experience

A semiconductor handling machine installed in the early 2000s began experiencing random operator workstation failures. The PLC system continued running, but the embedded industrial computer would occasionally fail during Windows startup.

The maintenance team identified the installed computer:

PRO-FACE PL6921-T41 (2780054-03)

The replacement evaluation focused on:

• Existing Windows image backup
• HMI application recovery
• Expansion card compatibility
• Touchscreen operation
• PLC communication drivers
• Panel mounting dimensions

Instead of replacing the complete control system, the plant restored the operator computer function and kept the original PLC and field wiring unchanged.

Typical applications:

• Semiconductor equipment operator terminals
• Packaging machine control stations
• Assembly line visualization systems
• Legacy SCADA workstations
• Production monitoring panels

Transparency SOP: QA & Testing

Legacy industrial computers require deeper inspection than standard office PCs.

Inspection Procedure

1. Hardware Identification

Verify:

• PRO-FACE label
• Model:
  • PL6921-T41
  • 2780054-03
• CPU configuration
• Expansion slot configuration

2. Display Testing

Check:

• SVGA image output
• LCD brightness
• Touchscreen response
• Pixel condition
• Backlight operation

3. Computer System Test

Perform:

• BIOS startup verification
• Memory test
• Storage detection
• Operating system boot test

4. Interface Verification

Test:

• Serial ports
• Expansion interfaces
• RAS functions
• External communication

5. Extended Operation Test

Monitor:

• Startup reliability
• Temperature behavior
• Fan operation
• Storage stability

A spare PL6921-T41 should be evaluated as a complete automation computer, not only as a display assembly.

The Veteran’s Tech Trap Guide

⚠️ Do not assume a modern PC replacement will run the old application.

The biggest challenge is usually software compatibility.

Check:

• Windows version
• HMI runtime software
• PLC communication drivers
• Dongle/license requirements

⚠️ PRO TIP: Preserve the original hard drive image.

Older PL-x920 systems may contain:

• Custom operator software
• Machine-specific settings
• Legacy drivers
• Database files

A replacement computer without the original software environment may power on but fail during production operation.

⚠️ Watch the expansion slots.

The uses a two-slot architecture. Existing expansion boards may be critical for:

• Communication interfaces
• Motion control
• Data acquisition

Verify card compatibility before replacement.

⚠️ Cooling maintenance matters.

This generation of industrial PC depends on airflow management. Check:

• Cooling fan condition
• Cabinet temperature
• Dust buildup
• HDD temperature

Dynamic FAQ

Q1. What is PRO-FACE ?

The PRO-FACE is a PL-x920 Series industrial panel computer with a 12.1-inch TFT display and Intel Pentium III 700MHz processor.

Q2. What is the part number for ?

The corresponding part number is:

2780054-03

This identifier is used for the industrial panel computer configuration.

Q3. What operating systems were supported?

The PL-x920 family supported legacy Windows environments including:

• Windows NT 4.0
• Windows 2000
• Windows XP

depending on installed configuration.

Q4. What display resolution does use?

The display resolution is:

800 × 600 pixels (SVGA)

with a 12.1-inch TFT color LCD.

Q5. Is still manufactured?

No. PRO-FACE lists as discontinued. End of sales was June 29, 2007, and repair support ended January 10, 2014.

Q6. What is the recommended replacement?

PRO-FACE lists newer PS6000 Series industrial PCs as replacement options, including PFXP6 series configurations. Migration requires checking software, hardware expansion, and installation requirements.

Q7. Is New Surplus available?

Availability depends on industrial spare inventory. Because this model is discontinued, typical sources include new surplus stock, refurbished units, and tested industrial spare suppliers.

Q8. What should buyers verify before purchase?

Recommended checks:

• Model label photo
• Part number confirmation
• CPU specification
• Memory size
• Storage condition
• Display test result
• Touchscreen operation
• Warranty coverage

For legacy industrial computers, configuration accuracy is the key factor in avoiding unexpected commissioning work.
