Description
Product Introduction
The ProSoft MVI56-PDPMV1 is a dedicated PROFIBUS DP Master network interface card designed to plug natively into an Allen-Bradley 1756 ControlLogix chassis. It establishes high-speed cyclical data exchange between ControlLogix programmable automation controllers and up to 125 PROFIBUS DP field slaves—including variable frequency drives, motor management systems, instrumentation transducers, and remote I/O drops.
By handling complex PROFIBUS DP-V0 acyclic messaging and DP-V1 parameterization directly on the module hardware, the MVI56-PDPMV1 offloads heavy communication overhead from the main ControlLogix processor. Integrated Add-On Profiles (AOP) and customized Add-On Instructions (AOI) allow control engineers to easily configure, diagnose, and map external fieldbus registers directly into Studio 5000 controller tags without needing external protocol translation gateways.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | ProSoft Technology |
| Model Number | MVI56-PDPMV1 |
| Chassis Compatibility | Allen-Bradley 1756 ControlLogix (Single Slot) |
| Protocol Supported | PROFIBUS DP-V0 Master (Class 1 & 2), DP-V1 Acyclic |
| Max Network Slaves | Up to 125 PROFIBUS DP Slaves |
| Baud Rates | 9.6 kbps up to 12 Mbps (Auto-Baud Detect) |
| Port Interface | DB-9 Female (PROFIBUS) |
| Internal Data Memory | 1536 Bytes Input / 1536 Bytes Output Data |
| Backplane Power | 800 mA @ 5.1 VDC |
| Configuration Software | ProSoft Configuration Builder (PCB) / PROFIBUS Master Configurator |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Application Scenarios & The “Trench” Experience
Picture this: It’s 1:45 AM during a critical batch cycle in a chemical processing facility. Suddenly, the main mixer deck goes silent—your ControlLogix 1756-L72 controller drops every field instrument on the line due to a hard hardware bus failure inside an aging MVI56-PDPMV1 card. Raw material is hardening in the reactor tanks at a loss of $12,000 every twenty minutes. Upgrading the entire field network to EtherNet/IP would take weeks of panel rewiring, recalibration, and PLC software re-architecting. Having a fully bench-tested, drop-in replacement MVI56-PDPMV1 module ready to slide into Slot 4 gets the fieldbus scanner back online in under ten minutes, saving the entire production run.
- Oil & Gas Refineries – Interfaces ControlLogix PACs with distributed PROFIBUS PA/DP smart valve actuators and flowmeters.
- Water Treatment Facilities – Controls vast networks of Siemens ET200S remote I/O drops and VFDs spread across processing basins.
- Mining & Material Handling – Synchronizes overland conveyor drives and soft starters across long-distance PROFIBUS fieldbus runs.

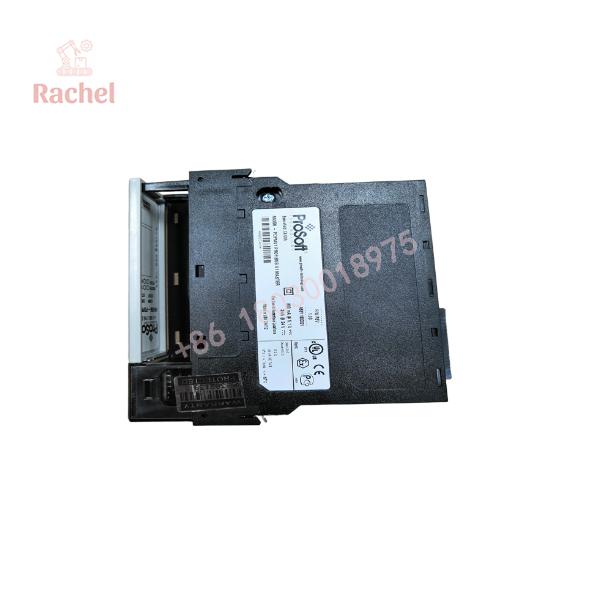

MVI56-PDPMV1

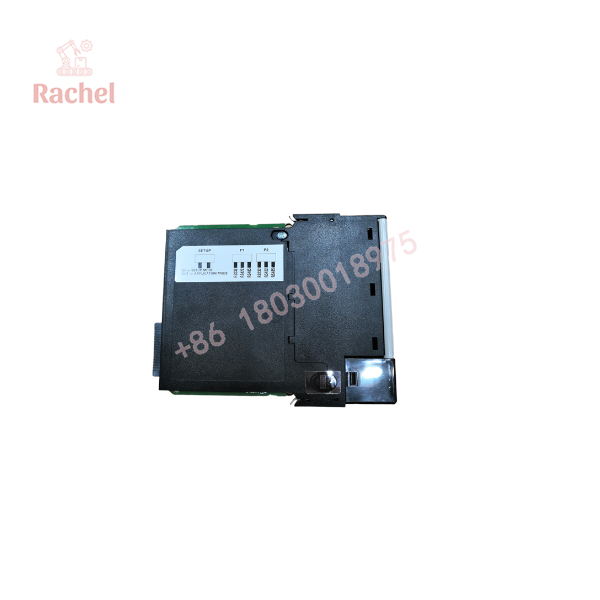

MVI56-PDPMV1
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual ControlLogix racks. Every MVI56-PDPMV1 card undergoes a rigid 5-step quality verification before leaving our warehouse:
- Inbound Visual & Physical Inspection: Detailed audit of PCB traces, edge connector pins, front-panel DB9 port threads, and serial number authenticity tags.
- Backplane Power-On Self-Test: Module is seated in an active 1756 rack to confirm 4-character scrolling LED display boot sequences and backplane voltage draw.
- PROFIBUS Active Loop Test: Connected via DB9 to a multi-slave test loop containing Siemens ET200 drops and ABB drives; verified error-free 12 Mbps cyclic data exchanges.
- DP-V1 Acyclic & Config Handshake: Software verification using ProSoft Configuration Builder to test configuration downloads, GSD file parses, and backplane tag synchronization.
- ESD Security & Heavy-Duty Packaging: Unit receives anti-static ESD wrapping and is packed inside custom-cut high-density foam shipping boxes.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Watch Out for Terminal Resistors: In our field experience, 80% of spurious network drops are caused by physical layer issues, not module hardware failures. Make sure the PROFIBUS DB9 connector plugged into the MVI56-PDPMV1 has its built-in termination resistor switch set correctly. If the module sits at the physical end of the cable segment, the switch MUST be ON; if it’s in the middle of a daisy chain, it MUST be OFF!
❗ Baud Rate vs. Cable Length Limits: Don’t just crank the module’s PROFIBUS baud rate to 12 Mbps during commissioning because it sounds faster. At 12 Mbps, your maximum segment length without repeaters drops down to a strict 100 meters. If your field sensors are spread across a large plant floor, drop the baud rate down to 1.5 Mbps or 500 kbps to maintain signal noise immunity and prevent random packet dropouts.
⚠️ Backup Your .PBD Configuration File: The ControlLogix processor ladder code does NOT store the PROFIBUS network configuration or GSD mapping files—those live directly inside the MVI56-PDPMV1 card’s non-volatile memory. Before pulling a damaged or suspected faulty card, pull the .pbd configuration file using ProSoft Configuration Builder over the debug port. Trust me, building a 90-node GSD mapping from scratch at 3 AM is pure nightmare fuel.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the main difference between the legacy MVI56-PDPMV1 and the newer MVI56E-PDPMV1?
A: The “E” version stands for Enhanced. The MVI56E offers an onboard Ethernet port for configuration/diagnostics instead of the older serial debug port, and supports web-based diagnostics. However, the original MVI56-PDPMV1 is 100% hardware drop-in compatible if you upload the existing project configuration.
Q: Can I hot-swap this module into an energized ControlLogix chassis?
A: Yes, ControlLogix chassis support Removal and Insertion Under Power (RIUP). However, pulling a live PROFIBUS Master card will instantly break communication to all 125 field devices, driving your connected drives and actuators into their loss-of-signal fault states. Always shift the process into a safe manual hold first.
Q: Do I need separate software to configure the PROFIBUS network parameters?
A: Yes. You use ProSoft Configuration Builder (PCB) along with its embedded PROFIBUS Master Configuration tool to import slave device .GSD files, set slave node addresses, and build the cyclic I/O data map before downloading it to the module.
Q: What warranty coverage comes with this surplus ProSoft scanner?
A: Every unit comes backed by our comprehensive 12-month operational warranty. If the board exhibits backplane errors, DB9 port failures, or memory lockups within 365 days of installation, we will issue an immediate replacement or a complete refund.
Q: Why purchase legacy surplus units over upgrading to modern network hardware?
A: Upgrading a legacy PROFIBUS plant infrastructure to modern EtherNet/IP architecture involves replacing hundreds of field instruments, re-pulling industrial Ethernet cable runs, and rewriting complex PLC code. Sourcing an authentic surplus MVI56-PDPMV1 preserves your existing field wiring investment and restores full plant operation in minutes.
