Description
Product Introduction
The ProSoft PTQ-PDPMV1 is a single-slot PROFIBUS DP-V1 Master network interface module designed specifically for the Schneider Electric Modicon Quantum PAC/PLC platform. By plugging directly into a standard Quantum backplane, it bridges Modicon controllers to PROFIBUS field devices, handling cyclic data exchanges alongside acyclic messaging for diagnostics and device configuration.
Unlike generic serial bridges or external protocol converters that choke execution speed, the PTQ-PDPMV1 acts as a native option card. It transfers data directly across the Quantum backplane using mapped memory registers. This eliminates external power wiring and latency, allowing engineers to retain their preferred Modicon control architecture while running standard European field instrumentation and motor drives.
Key Technical Specifications
| Parameter | Specification |
| Compatible Platform | Schneider Electric Modicon Quantum (Single-Slot Backplane) |
| Protocol Support | PROFIBUS DP-V1 Master (Class 1 and Class 2) |
| Max Slave Count | Up to 125 slave devices |
| Baud Rates | 9.6 kbps to 12 Mbps (Auto-baud detection supported) |
| Input Data Capacity | Up to 1536 words (16-bit) |
| Output Data Capacity | Up to 1536 words (16-bit) |
| Acyclic Data Support | DP-V1 Read/Write operations for asset management |
| Interface Port | DB9 Female connector (RS-485 PROFIBUS standard) |
| Backplane Current Load | 800 mA at 5 VDC |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
Application Scenarios & The “Trench” Experience
It’s 2:15 AM on a Sunday. A main drive skid on the hot-roll mill trips out on a communication timeout. The old PROFIBUS Master card threw an unrecoverable red light, taking down the entire line at a cost of $12,000 an hour in lost throughput. You don’t have time to retrofit the system to Ethernet/IP or rewire 40 variable frequency drives. You need a drop-in PTQ-PDPMV1 card, configured right, flashed right, and running before the morning shift starts.
- Metals & Mining – Hot Strip Rolling Mill – Integrates 30+ Siemens S120 drives into a central Modicon Quantum PLC logic architecture over high-speed PROFIBUS DP.
- Water & Wastewater – Secondary Sludge Treatment – Handles cyclic control and acyclic DP-V1 calibration parameters for flowmeters and motorized valve actuators scattered across the plant.
- Oil & Gas – Offshore Production Skids – Links legacy PROFIBUS field instrumentation and motor management relays directly to the main Modicon safety and control system without adding external gateway hardware.
Field Case Study:
A chemical processing facility in Texas experienced an unexpected failure on a legacy PTQ-PDPMV1 module controlling their batch reactor agitators. Because the original OEM had phased out the Quantum line, local distributors quoted a 16-week lead time for a system overhaul. We dispatched a verified surplus PTQ-PDPMV1 module via counter-to-counter air freight. The plant engineer transferred the GSD configuration file, swapped the module during a scheduled 4-hour window, and brought the plant back to 100% capacity without modifying a single line of PLC ladder code.

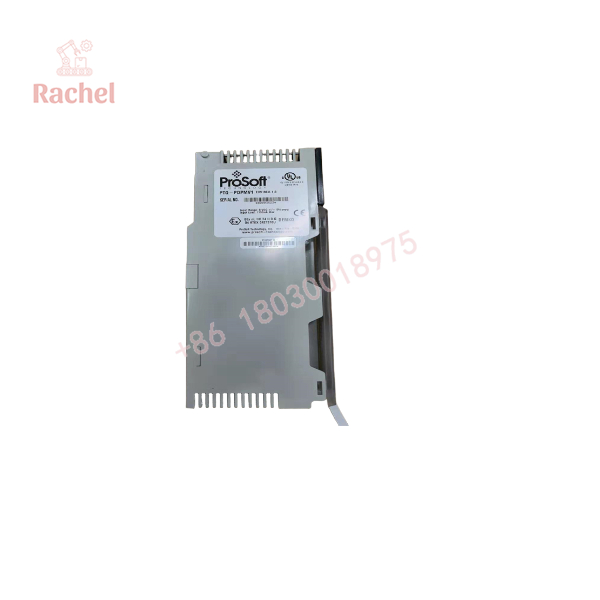

PTQ-PDPMV1

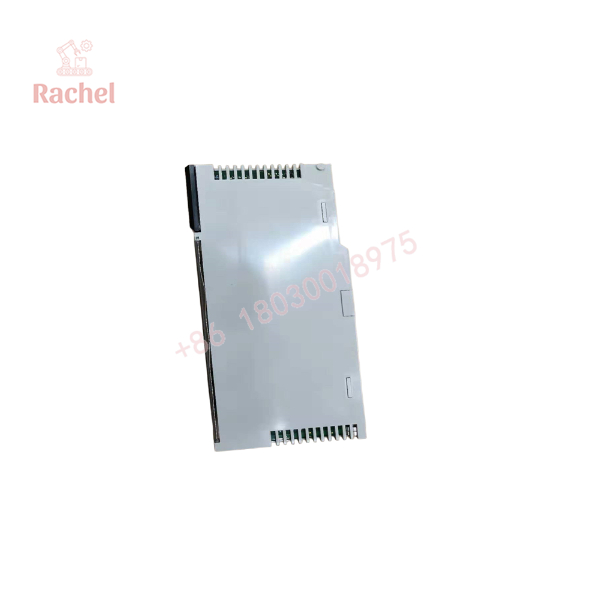

PTQ-PDPMV1
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Modicon Quantum racks.
- Inbound Physical Inspection: Thorough verification of physical condition, PCB trace integrity, connector pin alignment, and authentic ProSoft factory markings.
- Live Rig Power-On & Backplane Handshake: Insertion into a powered Modicon Quantum rack (140CPU controller) to verify low-level backplane initialization and bus health.
- Communication Test: Connection to a live PROFIBUS test loop with multiple slave nodes (ET200S I/O and ABB drives) running at 1.5 Mbps to verify zero frame loss and stable cyclic communication.
- Firmware Logging & Config Flash Test: Verification of firmware revision using ProSoft Configuration Builder (PCB) via the front diagnostic port.
- ESD Protection & Final QC: Electrostatic discharge clearing, physical tagging, anti-static shielding bag packaging, and heavy foam casing before shipment.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Memory Address Overlaps:
When mapping the I/O configuration in Unity Pro (Concept), double-check your %IW and %MW block boundaries. The PTQ-PDPMV1 can transfer large data blocks. Overlapping your register assignments with other rack I/O modules will silently corrupt sensor readings.
❗ Set Your Baud Rate to Match Cable Distance:
Don’t just set the PROFIBUS baud rate to 12 Mbps and hope for the best. If your cable run exceeds 100 meters, 12 Mbps will generate excessive CRC errors and drop slaves randomly. Drop to 1.5 Mbps or 500 kbps on long runs.
⚠️ Check the Terminating Resistors:
Take a look at the DB9 connectors on both ends of your segment before powering up. Trust me. Missing or double-enabled PROFIBUS terminating resistors cause 80% of the “ghost” bus faults engineers spend hours troubleshooting at midnight.
❗ Diagnostic Port Configuration:
Do not lose your serial mini-DIN to DB9 configuration cable. Flashing or diagnosing the PTQ-PDPMV1 requires this dedicated serial port; you cannot push configuration files to the module through the Quantum PLC CPU over Ethernet unless routing is explicitly configured in older firmware versions.
Frequently Asked Questions
Q: Can I hot-swap the PTQ-PDPMV1 card while the Quantum backplane is powered?
A: While the Modicon Quantum rack technically supports Hot Swap (RIUP – Removal and Insertion Under Power), doing so without pausing the PLC process can trigger a bus fault or trip your field devices into failsafe modes. Always turn off field power to the PROFIBUS segment or set the CPU to Stop mode if your plant safety protocol requires it.
Q: Do I need special software to configure the PROFIBUS network on this module?
A: Yes. You will use ProSoft Configuration Builder (PCB) to import your slave GSD files, build the network slave map, and set the bus parameters. Once configured, you download the configuration file directly into the PTQ-PDPMV1 via its CFG port.
Q: Is the PTQ-PDPMV1 a direct replacement for older PTQ-PDPM cards?
A: Yes, but keep in mind that the V1 suffix indicates support for acyclic DP-V1 messaging (used for advanced diagnostics and instrument parameters). If you are replacing a non-V1 legacy module, your existing cyclic DP-V0 configuration will import smoothly, but verify your memory allocation in the Quantum controller.
Q: Why is new surplus stock cheaper than buying direct from Schneider or ProSoft?
A: New surplus items come from canceled capital projects, system upgrades, or plant spares inventory. They are original, authentic ProSoft manufactured units that never saw power in a production environment. We source them globally to bypass long factory lead times and pass the cost savings on to you.
Q: What warranty comes with this module?
A: Every PTQ-PDPMV1 module we ship is backed by our full 12-month replacement warranty. If the card fails under normal operating conditions within a year, we replace it immediately from our stock.
