Description
Product Introduction
The ProSoft MVI69-MCM is a single-slot, 1769-backplane compatible serial communication module engineered specifically for Rockwell Automation CompactLogix PACs and MicroLogix 1500 LRP PLCs. It acts as a dedicated protocol converter, enabling seamless data transfers between the controller’s memory and complex Modbus serial networks without burning processor overhead.
Unlike native serial ports on older CompactLogix CPUs—which force you to write tedious custom ASCII ladder logic—the MVI69-MCM handles protocol execution directly on its internal processor. Its dual application ports operate independently as either Modbus Masters or Slaves. This hardware-level offloading keeps scan times tight on legacy 1769-L32E and 1769-L35E processors while bridging variable frequency drives, power meters, and legacy field instrumentation directly into RSLogix 5000 tag structures.
Key Technical Specifications
| Parameter | Specification Value |
|---|---|
| Backplane Compatibility | Single-slot 1769 I/O Bus (CompactLogix / MicroLogix 1500 LRP) |
| Backplane Current Draw | 800 mA max @ 5 VDC |
| Power Supply Distance Rating | 2 slots (Must be installed within 2 slots of power supply, e.g., L43/L45) |
| Application Ports | 2 x PRT1, PRT2 (RS-232, RS-422, or RS-485 selectable via internal jumpers) |
| Configuration Port | 1 x RJ45 (RS-232 serial only, DB-9F adapter included) |
| Supported Protocols | Modbus RTU Mode and Modbus ASCII Mode |
| Baud Rate Range | 110 to 115,200 Baud |
| Modbus Command Capacity | Up to 100 commands per Master port (configurable polling) |
| Modbus Function Codes | 1, 2, 3, 4, 5, 6, 8, 15, 16, 17, 22, 23 |
| Floating Point Support | Native, Enron, Daniel, and custom register mapping |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
Application Scenarios & The “Trench” Experience
Picture this: It is 2:15 AM on a Sunday. A critical chilled-water system at a major pharmaceutical plant goes offline. The CompactLogix L35E CPU loses communication with four multi-zone power meters and six VFDs via an old RS-485 daisy chain. The MVI69-MCM card in Slot 3 has a solid red ERR LED—its internal flash memory corrupted following a utility voltage sag. No spare on site. Every minute the chillers stay idle, thousands of dollars in batch product risk destruction.
To be honest, situations like this happen every day with legacy 1769 systems. Having a pre-tested, drop-in replacement card ready to swap saves plant managers from complete operational disaster.
- Oil & Gas Processing: Interfacing EFMs (Electronic Flow Meters) using Enron Modbus floating-point mapping to CompactLogix PACs for custody transfer logging.
- Water/Waste Water Treatment: Master polling over 15 distant VFDs and chemical feed pumps on an RS-485 loop scattered across a 2-mile facility.
- Power & Microgrid Systems: Polling legacy protective relays and digital power meters over Modbus RTU to dump real-time telemetry into RSLogix 5000 controller tags.
- Factory Automation: Integrating third-party temperature controllers or barcode scanners into a packaging line without installing complex Ethernet/IP gateway hardware.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Rockwell Automation 1769 racks. Every refurbished or new surplus MVI69-MCM unit undergoes a mandatory 5-step bench test before shipment:
- Inbound Visual & Anti-Counterfeit Inspection: Inspection of the PCB solder joints, connector pins, edge contacts, and OEM batch labels. Verification that trace jumpers are intact.
- Live Rack Bench Testing: Mounting into a live 1769 chassis with a 1769-L33ER / L35E processor to verify backplane handshake and logic execution.
- Serial Port Stress Test: Wiring Port 1 and Port 2 to an active RS-485 Modbus RTU simulator. We pump continuous read/write function code queries at 115,200 baud for 4 hours to verify zero bit-drop rates.
- Firmware & Memory Audit: Reading and logging the onboard flash memory, verifying config file parsing via ProSoft Configuration Builder (PCB), and clearing test configuration files.
- ESD-Safe Packaging: Clearing physical diagnostic logs, inserting the port jumpers to factory default settings (RS-232), and sealing in anti-static ESD shielding bags with custom foam casing.

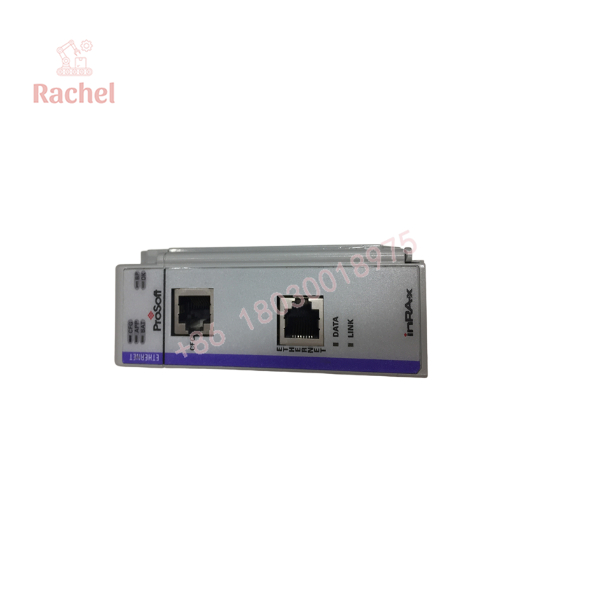

MVI69-MCM

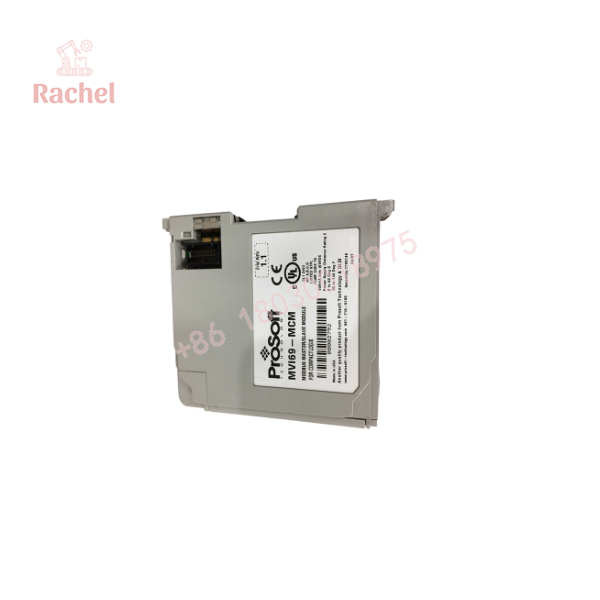

MVI69-MCM
The Veteran’s Tech Trap Guide (Crucial Value-Add)
In our field experience, replacing an MVI69-MCM module trips up engineers on four very specific details:
- ⚠️ The Hardware Jumper Trap: Port 1 and Port 2 do NOT configure their physical layer (RS-232 vs RS-422 vs RS-485) in the software! You MUST pull the card and manually set the physical physical jumpers on the circuit board. Take a photo of the old card’s jumpers before you yank it out of the rack. Trust me.
- ❗ The 2-Slot Power Distance Rule: The MVI69-MCM draws a massive 800 mA off the 5VDC backplane bus. It has a Power Supply Distance Rating of 2. If you install this card 3 slots away from the 1769 power supply module, the card will intermittently brown out, freeze, or cause unrecoverable bus faults on your CompactLogix CPU.
- ⚠️ MVI69 vs MVI69E Firmware Incompatibility: Do not confuse the older with the newer MVI69E-MCM (Enhanced version). Their sample ladder logic routines, AOIs, and configuration file formats are fundamentally different. Dropping an MVI69-MCM into a slot programmed for an MVI69E will fail to pass I/O connection configuration.
- ❗ Config Port Cable Pinout: The RJ45 port on the front panel is NOT an Ethernet port! It is an RS-232 configuration port. Plugging an Ethernet switch into that RJ45 jack can damage the serial line drivers. Use the factory ProSoft RJ45-to-DB9 cable.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the MVI69-MCM module while the CompactLogix rack is powered on? A: No. Standard 1769 CompactLogix backplanes do NOT support RIUP (Removal and Insertion Under Power). Pulling or inserting this module live will spark the backplane pins, potentially corrupting memory on the CPU or frying adjacent I/O modules. Always kill rack power first.
Q: Why is your new surplus/refurbished unit cheaper than buying direct from OEM distribution? A: We source surplus inventory directly from system integration excess, cancelled plant expansions, and decommissioned cleanroom facilities globally. These are 100% genuine ProSoft hardware modules—never knockoffs or cloned boards. We pass the supply chain savings straight to your maintenance budget.
Q: Do I need special software to program the module’s Modbus commands? A: You configure the communication commands using ProSoft Configuration Builder (PCB), which is available as a free download from ProSoft. Once created, the config file is transferred via the serial config cable or passed down through ladder logic blocks from the RSLogix 5000 / Studio 5000 controller tags.
Q: Will the MVI69-MCM work with CompactLogix 5370 or 5380 controllers? A: It works with 5370 controllers that utilize 1769 I/O buses (like the L1, L2, and L3 series that accept 1769 modules). It is NOT compatible with newer CompactLogix 5380 (5069 I/O platform) systems without a dedicated network bridge.
Q: What warranty coverage comes with this module? A: We back every module—both New Surplus and Refurbished—with an independent 12-Month Replacement Warranty. If the module fails due to component breakdown within 365 days of installation, we replace it immediately from our ready-to-ship shelf stock.
