ProSoft MVI56E-SIE ControlLogix Siemens Ethernet Module

Description

Product Introduction

The ProSoft MVI56E-SIE is an enhanced Siemens Industrial Ethernet communication module built specifically to sit natively in an Allen-Bradley 1756 ControlLogix chassis. It bridges the gap between Rockwell ControlLogix PACs and up to 20 Siemens S7 PLCs (including S7-200, S7-300, S7-400, S7-1200, and S7-1500) operating as an Ethernet Client. This enables seamless cross-platform control data exchanges without cumbersome hardwiring or external protocol gateways.

By offloading protocol conversion directly to the 1756 backplane, the MVI56E-SIE frees up ControlLogix CPU scan time while eliminating latency seen in third-party serial or standalone converters. It includes standard Add-On Instructions (AOI) and Add-On Profiles (AOP) for rapid Studio 5000 / RSLogix 5000 integration, making high-speed data mapping to Siemens DB, Flags, Inputs, and Outputs simple to maintain.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:00 AM on a Friday, and a bottling line loses handshake communication between an Allen-Bradley 1756-L73 main controller and a German OEM palettizer driven by a Siemens S7-1500 PLC. The legacy external gateway box fried its power supply, and the entire packaging floor has ground to a halt at $6,000 an hour in lost output. Nobody has the source code to reprogram the standalone gateway’s software, and the shift team is stumped. Swapping to a backplane-integrated MVI56E-SIE card eliminates external hardware failure points completely, letting you manage the Siemens data mapping straight out of your native Studio 5000 project files.

• Automotive Body Shops – Connects Rockwell line controllers to specialized Siemens robotic welding cells.
• Food & Beverage Packaging – Synchronizes Allen-Bradley processing skids with Siemens-based blow-molding and labeling machines.
• Water Treatment Plants – Integrates legacy Siemens S7-300 telemetry panels into modern ControlLogix SCADA backbones.

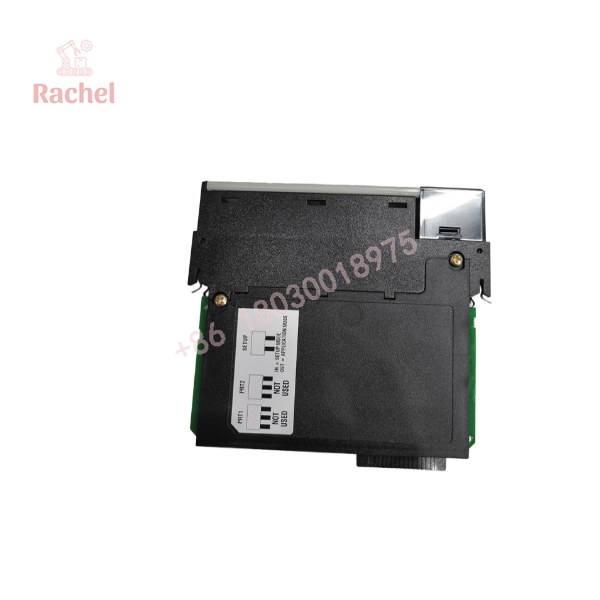

MVI56E-SIE

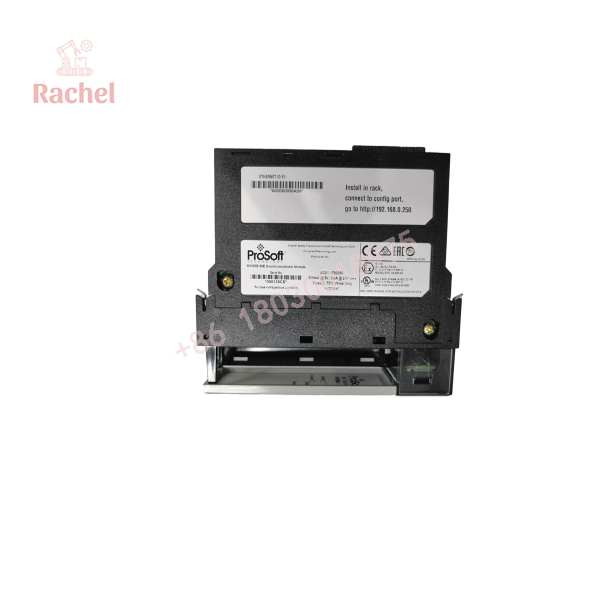

MVI56E-SIE

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ControlLogix racks. Every MVI56E-SIE card undergoes our strict quality inspection before entering inventory:

1. Inbound Physical & Anti-Counterfeit Inspection: Inspection of the faceplate display, card edge contacts, retaining latches, and OEM serial verification.
2. Backplane Power-On Self-Test: Module is plugged into a 1756 chassis rack to verify boot sequence, scrolling 4-character display boot status, and backplane current draw.
3. Siemens Handshake Verification: Connected via Ethernet to an S7-1200 test bench to verify read/write register cycles (DB, M, I, O addresses) using ProSoft Configuration Builder.
4. CIPconnect / AOI Data Verification: Verification of Studio 5000 ladder logic polling via Add-On Instructions (AOI) to confirm smooth data array transfer across the backplane.
5. ESD Handling & Anti-Static Packaging: Sealed in anti-static shielding bags and packaged with customized dense foam padding for transit.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ DB Optimizations in TIA Portal Will Break Communication: If you are connecting to a Siemens S7-1200 or S7-1500 PLC, make sure the target Data Block (DB) has “Optimized Block Access” TURNED OFF in TIA Portal! The MVI56E-SIE uses standard S7 communication mechanisms (absolute addressing), which require standard, non-optimized DB memory layouts.

❗ Watch Your RPI Settings: Don’t set the ControlLogix Requested Packet Interval (RPI) for the MVI56E module too fast. Setting the RPI down to 2ms or 5ms won’t speed up your Siemens network—it will just flood the module’s internal buffer. Leave the backplane RPI at 20ms to 50ms and let the module execute its commands asynchronously.

⚠️ Register Swap Gotchas: Byte-swapping (Big-Endian vs. Little-Endian) is the single biggest headache when mapping 16-bit integers and 32-bit floating point numbers between Siemens and Allen-Bradley systems. Check the “Swap Code” options inside the ProSoft Configuration Builder command list if your floating-point numbers look like garbled gibberish in Studio 5000 tags.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I replace an older MVI56-SIE with this newer MVI56E-SIE?

A: Yes. All MVI56E “Enhanced” series modules are 100% backward-compatible with legacy non-E MVI56 modules. They fit in the same slot, use identical memory mappings, and require no major changes to your existing controller ladder logic.

Q: Does the MVI56E-SIE require licensing software or extra hardware keys?

A: No. The firmware protocol stack is fully unlocked out of the box. Configuration is handled via the free ProSoft Configuration Builder (PCB) utility and imported Studio 5000 Add-On Instructions (AOI).

Q: Can this module act as a Siemens Ethernet Server instead of a Client?

A: No. The MVI56E-SIE operates specifically as a Siemens Ethernet Client. It actively initiates command reads and writes to up to 20 Siemens PLCs operating as S7 servers.

Q: What is the warranty coverage on this ProSoft module?

A: Every unit comes backed by a full 12-month operational warranty. If you experience hardware failures or backplane comm errors within 365 days of installation, we will replace the unit or issue a refund immediately.

Q: Why buy new surplus instead of direct factory lead time?

A: Direct OEM lead times for specialty in-chassis protocol modules can stretch out for weeks or months during supply chain snarls. Sourcing genuine surplus gives you instant access to fully tested, original hardware at a fraction of factory lead time and cost.
