Product Introduction & Engineering Value
The 5302-MBP-MCM4 addresses a very specific legacy-integration problem: keeping Modbus serial devices connected to a Modbus Plus control architecture without replacing the field equipment. Both protocol drivers are built into the gateway, and the Modbus Plus interface can be configured for Master or Slave operation.
That makes this module useful in older Modicon-based installations where serial instruments, drives, meters, or controllers remain operational but need to exchange data with the existing Modbus Plus network. It is a protocol gateway, not a conventional PLC I/O module.
Technical Specifications
- Manufacturer: ProSoft Technology
- Part Number: 5302-MBP-MCM4
- Product family: ProLinx Gateway
- Primary function: Modbus Plus ↔ Modbus protocol conversion
- Modbus Plus port: 1, DB9 female
- Modbus serial ports: Up to 4
- Serial configuration: Individually configurable
- Modbus operation: Master and Slave
- Modbus Plus operation: Master and Slave
- Mounting: Stand-alone DIN rail
- Internal database: ProLinx register-based data exchange architecture
- Configuration: ProSoft Configuration Builder / applicable ProLinx configuration tools
The ProSoft documentation for the related ProLinx MBP family confirms that the module maintains an internal database used for data exchange and supports Modbus Plus slave access, while the 5302-MBP-MCM4 product references specifically identify the four-port Modbus architecture.
Specification caution: Some secondary-market listings publish conflicting dimensions, environmental ratings, or interface counts for the 5302-MBP-MCM4. The protocol architecture and port configuration should be verified from the module label and applicable ProSoft documentation rather than copied from an unverified reseller listing.
Field Application & the “Trench” Experience
A legacy process plant had a Modbus Plus control network with several serial analyzers and package controllers still communicating through Modbus RTU. During a network upgrade, the engineering team did not want to replace validated field devices merely because the supervisory architecture needed additional data paths.
The 5302-MBP-MCM4 can serve as the protocol boundary in this type of installation. The Modbus Plus side communicates with the plant control network while the four serial ports provide individually configured interfaces to Modbus devices. The real engineering work is in the data map, serial parameters, slave addresses, polling strategy, and command configuration.
Niche application scenarios
- Legacy Modicon Process Cells — integrating serial analyzers and controllers into an established Modbus Plus network.
- Water-Treatment Chemical Dosing Skids — collecting flow, pressure, pump status, and dosing-controller data through Modbus serial connections.
- Motor Control Center Monitoring — aggregating serial drive or power-monitor data into a Modbus Plus supervisory system.

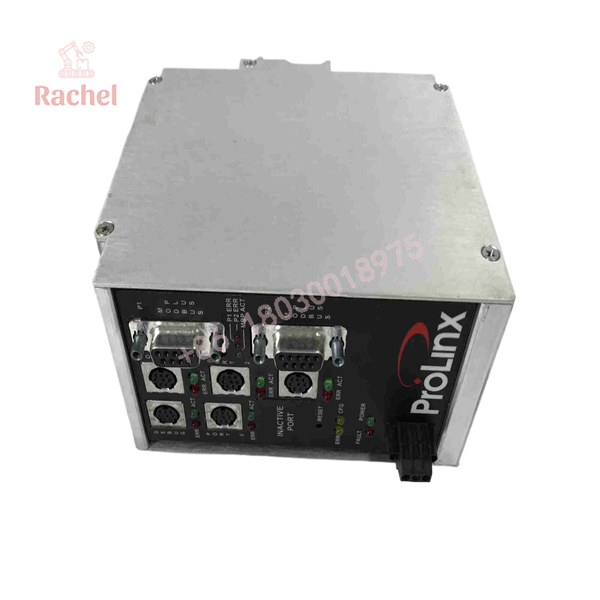

5302-MBP-MCM4

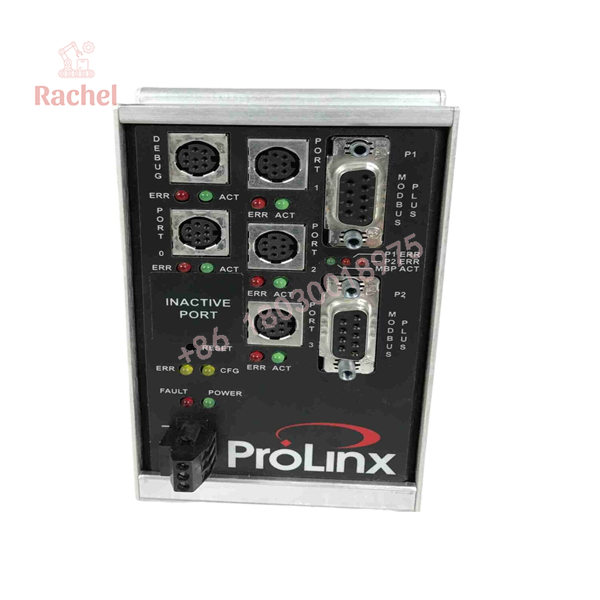

5302-MBP-MCM4
Transparency SOP: QA & Testing
For New Surplus or refurbished 5302-MBP-MCM4 inventory, a meaningful test should verify communications rather than merely checking whether the unit powers up.
1. Identification inspection
Confirm 5302-, manufacturer markings, serial information, and hardware revision.
2. Physical inspection
Check the DIN-rail housing, Modbus Plus DB9 connector, serial interfaces, power terminals, LEDs, and accessible PCB areas.
3. Power-up test
Apply the specified supply under controlled conditions and verify startup and diagnostic indications.
4. Modbus Plus test
Connect the unit to a controlled Modbus Plus test network and verify expected Master/Slave behavior.
5. Serial-port test
Exercise the required Modbus serial interfaces using appropriate RS-232/RS-485/RS-422 test equipment and the configured protocol mode.
6. Data-map verification
Confirm that representative read/write transactions reach the intended internal database registers.
The ProLinx MBP documentation describes an internal register database and configurable command structure, including read/write commands associated with specific database addresses.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming all four serial ports use the same settings.
They are individually configurable. Baud rate, parity, addressing, mode, and other parameters need to be checked against each connected device.
⚠️ Trap #2 — Confusing Modbus Plus with ordinary Modbus serial.
They are different communication layers. The 5302-MBP-MCM4 exists specifically to bridge the two.
⚠️ Trap #3 — Losing the original configuration file.
A replacement gateway without the original database mapping and command configuration can require substantial commissioning work.
PRO TIP: Keep a copy of the working ProSoft configuration together with the spare. Record every serial-port parameter and Modbus Plus node address before removing the failed unit.
Dynamic FAQ
Q: What does the ProSoft 5302-MBP-MCM4 do?
A: It provides protocol conversion between a Modbus Plus network and multiple Modbus serial devices. It can operate with Master or Slave functionality on the supported protocol interfaces.
Q: How many serial Modbus devices can it connect to?
A: The product documentation and supplier references identify up to four configurable Modbus serial ports. The actual number of connected devices depends on the selected serial architecture and network configuration.
Q: Is the 5302-MBP-MCM4 a PLC?
A: No. It is an industrial communication gateway intended to exchange data between Modbus Plus and Modbus networks.
Q: Is the 5302-MBP-MCM4 suitable for legacy Modicon systems?
A: Yes, its Modbus Plus interface makes it relevant to installations that retain Modbus Plus infrastructure while needing communication with Modbus serial equipment.
Q: What should I verify before buying New Surplus stock?
A: Verify the complete part number, label and revision markings, physical condition, serial information, configuration status, and—preferably—evidence of both Modbus Plus and serial communication testing.
Q: What warranty should I request?
A: Confirm the supplier’s warranty period, DOA coverage, functional-test scope, and return conditions. For legacy ProLinx equipment, the supplier’s actual warranty terms should be documented rather than assumed.
