R. STAHL 80701-1-HR311 Explosion Proof Position Switch

Description

Product Introduction & Engineering Value

In hazardous production areas, a standard limit switch can become a safety concern. The R. STAHL 80701-1-HR311 is designed for mechanical position monitoring where equipment status must be detected reliably inside classified explosion-risk zones.

This switch is commonly applied in process automation installations where conveyors, valves, actuators, and machine mechanisms require certified position feedback. Its explosion-protected construction allows engineers to maintain automation functions without replacing existing hazardous-area designs.

Technical Specifications

Field Application & The “Trench” Experience

A chemical processing facility operating a solvent transfer system began receiving intermittent valve position alarms. Operators could manually verify that the valve mechanism was moving, but the control room occasionally received incorrect open/close feedback.

The maintenance team traced the issue to a position switch installed near the hazardous process area. Environmental exposure, vibration, and years of switching cycles had degraded the original device.

Replacing the failed unit with an R. STAHL 80701-1-HR311 position switch restored reliable status feedback without modifying the existing explosion-proof installation.

Typical application scenarios include:

• Explosion-protected valve position monitoring on chemical process skids
• Hazardous-area conveyor position detection
• Actuator limit monitoring in classified production zones
• Petrochemical equipment safety interlock systems

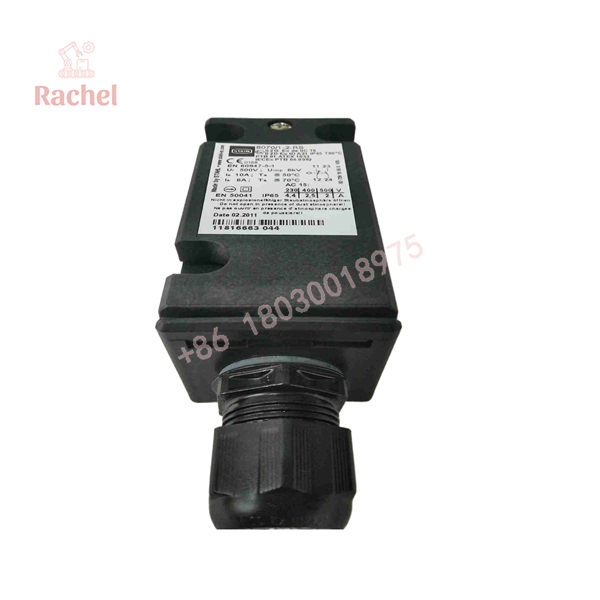

80701-1-HR311

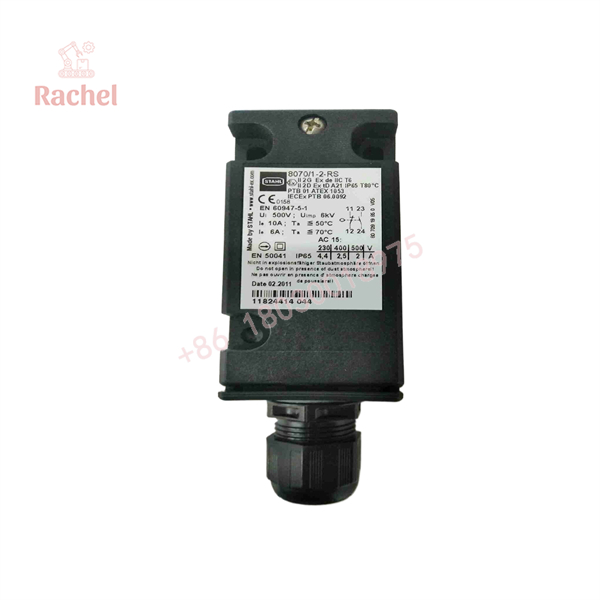

80701-1-HR311

Transparency SOP: QA & Testing

Explosion-protected switches require additional inspection beyond normal electrical checks.

Inspection workflow:

1. Mechanical inspection
   • Verify enclosure condition
   • Check actuator mechanism movement
   • Inspect mounting threads and entry points
2. Electrical verification
   • Confirm contact switching operation
   • Check insulation condition
   • Verify terminal integrity
3. Certification review
   • Confirm nameplate information
   • Verify explosion-proof markings
   • Match installation requirements with site classification

Each unit should be checked against the original equipment specification before installation in hazardous areas.

The Veteran’s Tech Trap Guide

⚠️ Do not replace hazardous-area switches by appearance alone.

A physically similar switch may not have the required explosion protection certification for the installation location.

⚠️ Check contact configuration before wiring.

Different versions may use different NO/NC contact arrangements. A wiring mismatch can create false equipment status signals.

⚠️ Inspect cable entry components.

Explosion protection depends on the complete installation, including correct cable glands and sealing components.

PRO TIP: Photograph the original nameplate and terminal arrangement before removal. This prevents unnecessary commissioning delays.

Dynamic FAQ

Q1. What is the R. STAHL 80701-1-HR311 used for?

The 80701-1-HR311 is an explosion-protected position switch used for mechanical position detection in hazardous industrial environments.

Q2. Is this switch suitable for hazardous areas?

The R. STAHL 8070 series includes explosion-protected switches designed for hazardous-area applications with ATEX and IECEx certifications depending on model configuration.

Q3. Can the 80701-1-HR311 directly replace another limit switch?

Replacement depends on mounting dimensions, certification requirements, contact arrangement, and the existing control circuit.

Q4. Is the 80701-1-HR311 available as new surplus or refurbished stock?

Availability depends on inventory. Industrial suppliers may offer new surplus, unused warehouse stock, or tested used units.

Q5. What should be checked before installing this switch?

Verify explosion protection certification, area classification, electrical ratings, contact configuration, and mechanical mounting compatibility.

Q6. What warranty is normally provided?

Warranty coverage depends on supplier condition and inspection status. New surplus and tested used hazardous-area components usually have different warranty terms that should be confirmed before purchase.
