Description
Core Product Summary
The Reliance Electric DDS-LPS is a drive system logic interface power supply unit engineered for integration within industrial motor drive systems and automated control assemblies. Functioning as a specialized power distribution and control interface module, the unit conditions and routing internal logic voltages to drive control boards, feedback processing circuits, and command input sub-assemblies.
Constructed for panel-mount industrial drive cabinets, the DDS-LPS converts line-level AC power inputs into regulated low-voltage DC levels required for drive microprocessors and signal-level I/O. The module maintains electrical stability across control circuits, helping protect sensitive processing hardware from supply fluctuations during heavy motor loading and dynamic speed changes.
Key Technical Specifications
| Parameter | Specification |
| Product Type | Drive Logic Power Supply / Interface Unit |
| System Family | Reliance Electric Drive Systems |
| Nominal Input Voltage | 100 V AC / 115 V AC nominal |
| Logic Output Voltage | Low-voltage regulated DC (drive internal logic rail) |
| Analog Input Voltage Range | 0 V DC to 10 V DC (on board signal channel) |
| Analog Input Impedance | 100 kΩ |
| Mounting Style | Panel mount inside drive enclosure / rack frame |
| Approximate Weight | ~2.72 kg (6.0 lbs) |
Detailed Product Overview
The Reliance Electric DDS-LPS serves as an internal power and signal management interface within engineered drive enclosures. Variable speed drives and servo control platforms require isolated, stable DC power to operate microprocessor control cards, analog feedback loops, and digital command logic. The DDS-LPS steps down incoming line supply power to provide clean logic-level voltages across internal backplanes or wiring harnesses.
In addition to voltage transformation, the module incorporates signal routing channels designed to interface user commands and analog feedback devices to the primary drive processor. By housing regulated power conversion and logic interface paths on a single assembly, the module reduces internal cabinet wiring complexity and minimizes electromagnetic noise coupling into control logic.
The assembly features an industrial housing designed for mounting directly inside drive cabinets or control racks. Integrated terminal points allow secure connection of incoming line power, internal logic distribution lines, and analog interface wiring.

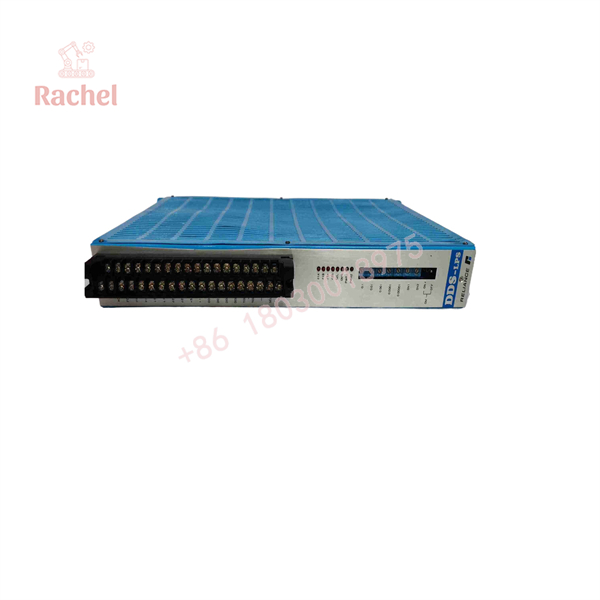

DDS-LPS

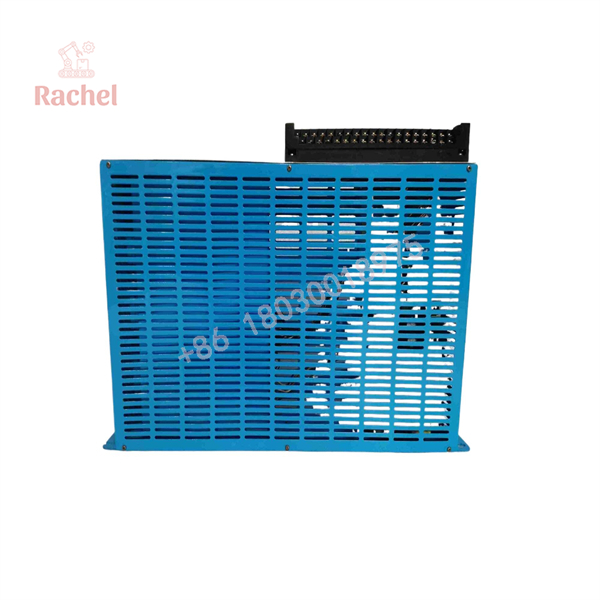

DDS-LPS
Dimensions, Mounting & Connection Notes
- Mounting Configuration: Panel-mount construction for installation within grounded metal drive enclosures.
- Connection Interface: Terminal connections for main AC input lines, internal DC logic output rails, and external signal wiring.
- Signal Channel Impedance: Analog signal input channels feature a high input impedance (100 kΩ) to avoid loading down external reference circuits.
- Enclosure Grounding: The module chassis must be securely bonded to the main control panel protective earth ground to ensure noise immunity and electrical safety.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Drive Architecture | Reliance Electric Drive Systems | Interfaces with internal control buses and processing cards. |
| AC Line Input | 100 V AC nominal supply line | Requires proper line protection and branch fusing. |
| Analog Feedback / Command | 0–10 V DC signal levels (100 kΩ input impedance) | Suitable for standard speed reference potentiometers or external PLC outputs. |
| Physical Mounting | Sub-panel or drive rack assembly | Intended for cabinet installation with adequate passive thermal ventilation. |
FAQ
What is the function of the Reliance DDS-LPS?
The Reliance Electric DDS-LPS is a drive logic power supply and interface module that converts incoming AC power into stable low-voltage DC power for internal drive processing cards and signal logic.
What supply input voltage does the DDS-LPS accept?
The module is designed for standard 100 V AC nominal utility inputs.
What signal range does the onboard analog input support?
The analog input channel supports a standard 0 to 10 V DC voltage range with an input impedance of 100 kΩ.
Where is the DDS-LPS typically installed?
The module is panel-mounted directly inside the main electrical enclosure or rack assembly of a Reliance Electric industrial drive system.
