Reliance MD-B6027C GV3000/SE Gate Drive Board

Description

Product Introduction

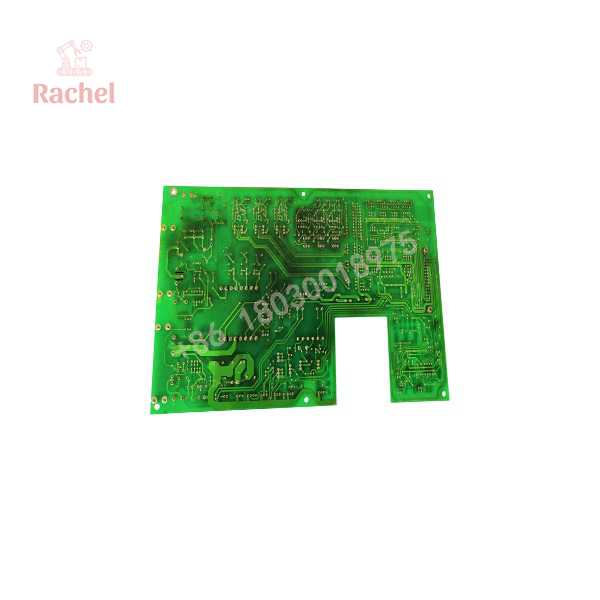

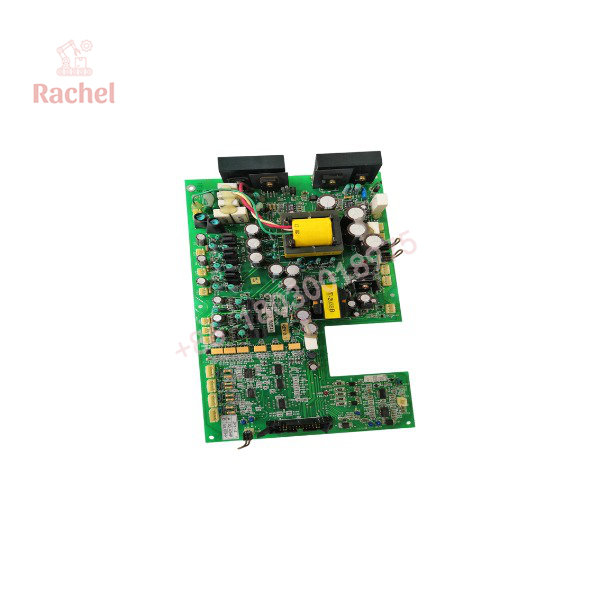

The Reliance Electric MD-B6027C (often designated alongside drawing reference 0-58718) is an internal power interface board built for the widely deployed GV3000 and GV3000/SE series variable frequency drives (VFDs). Positioned directly between the main control regulator board and the high-power IGBT inverter stage, the MD-B6027C handles critical gate-trigger distribution, DC bus pre-charge timing, and board-level fault monitoring.

Unlike external option cards, the MD-B6027C is an essential structural element of the drive’s power section. It converts local control signals into high-current gate pulses to fire the power semiconductors reliably under shifting motor load profiles. When an aging GV3000 drive trips on mysterious bus faults or fails to engage its pre-charge contactors, swapping this board is often the fastest route to recovery without undertaking a costly panel-wide VFD upgrade.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 4:00 AM on a processing line. A 100 HP blower drive drops out with a nuisance DC bus fault. You cycle the main breaker, but instead of hearing the familiar click of the pre-charge relay closing, the drive sits there dead while the DC bus capacitors fail to charge. The motor is fine, and the main regulator card boots, but the power stage refuses to handshake because a pre-charge relay on the MD-B6027C board has pitted and failed open after 20 years of continuous service. Every hour the line sits idle costs $18,000. Ripping out a complete GV3000 chassis and re-parameterizing a modern PowerFlex drive will take 14 hours. Replacing the internal MD-B6027C board gets the line back online in under an hour.

• Continuous Web Handling & Converting: Sits inside drive racks running unwind/rewind tension control axes where consistent gate firing prevents motor torque ripples.
• Extruders & Heavy Mixing Skids: Handles heavy thermal cycling loads in plastic extrusion plants running closed-loop vector control profiles.
• Pumping & HVAC Infrastructure: Powers continuous-duty municipal or industrial pump drives that demand high reliability against power-sag events.

MD-B6027C

MD-B6027C

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Reliance Electric test racks.

1. Inbound Inspection: Detailed physical check for PCB trace discoloration, thermal stress around power resistors, bulged capacitors, or damaged pin headers.
2. Component-Level Bench Checks: Testing internal relay coils, checking line fuses, and measuring passive component resistance values against OEM reference specs.
3. Live Rig Installation: Mounting the board into an active GV3000 test drive chassis fed with 460V AC mains and 24V DC control power.
4. Dynamic Load Run: Running a connected induction motor through acceleration, deceleration, and steady-state vector profiles to confirm clean gate-drive firing and proper pre-charge sequencing.
5. Final QC & Anti-Static Packaging: Applying serial-tracked QC seals and wrapping the board in heavy-gauge ESD shielding with custom-cut protective foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Discharge the DC bus completely before unbolting. GV3000 drives store high DC voltage across their main capacitor bank long after AC power is cut. Measure bus voltage with a calibrated meter across terminals DC+ and DC- to verify it’s below 50V DC before touching the MD-B6027C board.

❗ Watch out for ribbon cable pin misalignment. When reattaching the multi-pin header cables from the regulator board to the MD-B6027C, ensure every pin mates cleanly. Offset ribbon connectors by one pin row will short the 24V supply and immediately blow internal board traces.

⚠️ Inspect the gate-drive connector pins. Corroded or bent header pins lead to high contact resistance. This causes missing gate pulses, which leads directly to single-phasing on the motor output or blown IGBT modules.

❗ Check the pre-charge resistor bank. Before installing a fresh MD-B6027C, check your drive’s external/internal pre-charge resistors with an ohmmeter. If a resistor has failed shorted, applying power will instantly fry the new relay on the replacement board.

Frequently Asked Questions (FAQ for Conversion)

Q: Does replacing the MD-B6027C require reprogramming drive parameters?

A: No. Drive parameters are stored on the main GV3000 regulator control card, not on this interface board. Replacing the MD-B6027C is a pure hardware swap that requires no software configuration.

Q: Can I hot-swap this card while control power is applied?

A: Absolutely not. Removing or inserting this board while power is present will arc internal pin headers, blow the 24V supply fuses, and risk destroying downstream IGBT gates. Fully isolate power first.

Q: Why repair an old GV3000 drive instead of migrating to Allen-Bradley PowerFlex?

A: A full drive migration requires cabinet engineering, changing communication networks (e.g., AutoMax or RIO to EtherNet/IP), and redrawing schematics. Swapping a failed internal board keeps your existing panel configuration running without expensive engineering downtime.

Q: Is the MD-B6027C interchangeable across all GV3000 horsepower ratings?

A: While the MD-B6027C fits multiple frame sizes across the GV3000 lineup, you must cross-reference your specific drive’s horsepower, voltage rating, and power board revision (0-58718 dash numbers) to confirm exact compatibility.

Q: What warranty is included with this surplus part?

A: Every unit comes backed by a comprehensive 12-month operational replacement warranty, supported by our bench test procedures.
