Product Introduction & Engineering Value
The 61C22B is not a conventional standalone digital I/O module. It serves as the local I/O head within a Reliance Electric AutoMate control architecture, making it an important interface component in legacy PLC installations. Both the 61C22B and 61C22A revisions are documented in the secondary market.
For maintenance teams keeping an older AutoMate installation operational, the value is straightforward: replace the failed local head without immediately redesigning the surrounding control system. The critical requirement is matching the correct revision and voltage configuration.
Technical Specifications
Manufacturer: Reliance Electric
Model: 61C22B
System: AutoMate
Component: Local I/O Head
Nominal Control Voltage: 115/120 VAC class
Alternate Part Number: 61C-22B
Revision: B
Application: Reliance AutoMate PLC/control systems
Installation Type: AutoMate local I/O architecture
Physical Dimensions: Classic Automation lists approximately 5.5 × 3.5 × 6.8 inches for its 61C22B listing.
Weight: Approximately 2 lb 8.3 oz in that same listing.
Catalog Status: Legacy/obsolete industrial automation component; secondary-market sourcing is typical.
A useful distinction: several third-party pages incorrectly expand the 61C22B into generic descriptions such as a programmable controller or modern I/O module. The more consistent identification across specialist automation suppliers is Reliance Electric AutoMate Local I/O Head, 115/120 VAC.
Field Application & the “Trench” Experience
Picture an older production line running an AutoMate controller. The CPU is still healthy, the field wiring checks out, and the machine’s application program has not changed. Yet the local I/O section no longer initializes correctly.
The maintenance team isolates the fault to the 61C22B Local I/O Head. Replacing it with a generic I/O module is not an option because the head is part of the AutoMate architecture. The practical repair is an exact or properly validated 61C22B replacement.
This is typical of legacy automation work: the difficult part is often not finding a board that looks similar. It is proving that the replacement belongs to the same control architecture.
Specific Application Scenarios
- Legacy material-handling systems using Reliance AutoMate PLC hardware.
- Older continuous-process machinery where the AutoMate local I/O network remains in service.
- Production-line controller cabinets requiring replacement of a failed local I/O head without migrating the entire PLC system.
- Maintenance spares programs where 61C22B units are held as contingency inventory for obsolete AutoMate installations.
A 2022 industrial surplus catalog also lists the 61C22B specifically as a Reliance Local I/O Head, with the inventory condition categorized separately from refurbished stock.

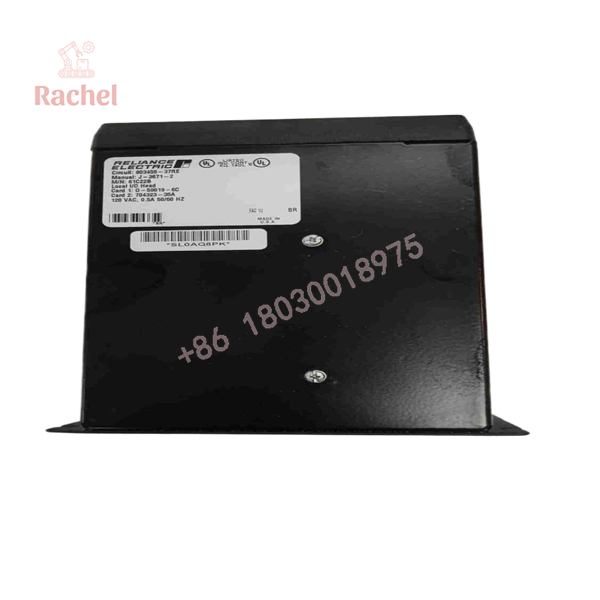

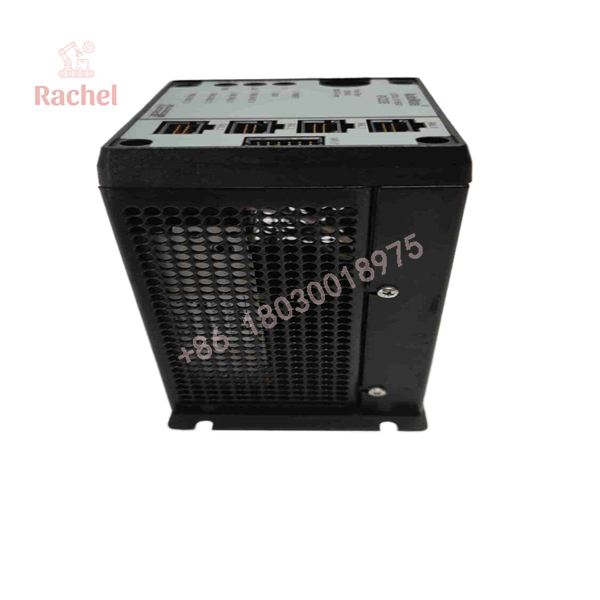

61C22B
61C22B
Transparency SOP: QA & Testing
For a 61C22B replacement, a proper inspection should go beyond powering up the unit.
1. Part-number verification
Confirm the label reads 61C22B or the documented alternate 61C-22B. Do not confuse it with 61C22 or 61C22A.
2. Revision inspection
Check the revision marking and compare it with the failed unit. The 61C22B is specifically the B revision, while the 61C22A is a separate listed variant.
3. Physical inspection
Inspect terminals, connectors, PCB surfaces, mounting hardware, and enclosure condition.
4. Electrical inspection
Verify the applicable 115/120 VAC supply arrangement before controlled energization.
5. Functional test
Where a suitable AutoMate test setup is available, verify initialization and local I/O communication rather than declaring the unit tested based solely on a power-up check.
6. Documentation
Record serial number, revision, condition, test results, and photographs of the actual unit before placing it into critical spare inventory.
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Confusing 61C22B with 61C22A
They are closely related, but they are not the same catalog designation. AxControl explicitly identifies both 61C22A and 61C22B as available revisions of the 61C22 AutoMate Local I/O Head.
PRO TIP: When replacing a field unit, photograph the complete part label before removing it. A five-character revision difference can matter more than the external enclosure.
⚠️ Trap #2: Assuming “120 VAC” means any 120 VAC module will work
The voltage description identifies the electrical class, not system compatibility. The 61C22B is an AutoMate Local I/O Head, so the host architecture matters just as much as the nominal supply voltage.
⚠️ Trap #3: Trusting generic online specifications
Several reseller pages attach questionable specifications to this part, including modern communication protocols and channel counts. Those claims conflict with the more consistent specialist identification of the unit as an AutoMate Local I/O Head. Do not use an unverified reseller specification table as the basis for cabinet redesign.
Dynamic FAQ
What is the Reliance 61C22B?
The 61C22B is a Reliance Electric AutoMate Local I/O Head, associated with the 61C22 family of local I/O heads.
What voltage does the 61C22B use?
Specialist listings identify the unit as a 115 VAC / 120 VAC-class Local I/O Head. Santa Clara Systems describes it as 120 VAC, while Lektronix lists 115 VAC.
Is 61C22B the same as 61C22A?
No. Both are variants of the 61C22 AutoMate Local I/O Head, but the suffix identifies a different revision/designation. Verify the exact suffix before ordering.
Is the 61C22B still a current product?
It should be treated as a legacy Reliance Electric component. Current sourcing is primarily through industrial automation spare-parts and repair suppliers. For example, Classic Automation currently lists a used/refurbished 61C22B, while Santa Clara Systems reports its particular inventory as out of stock.
Can a New Surplus 61C22B be considered unused?
Only if the supplier can substantiate that condition. Industrial surplus catalogs distinguish unused surplus (UNS) from refurbished (REF) inventory, so the purchasing record should explicitly state the condition rather than simply saying “good condition.”
What warranty should I request?
Warranty depends on the supplier and condition. As one example, Lektronix advertises a 12-month whole-unit warranty for its refurbished Reliance Electric spare/repair service. Other sellers use different terms, so the warranty should be written into the quotation or purchase order.
