Rexroth CSH01.3C-ET-ENS-NNN-CCD-NN-S-NN-FW Control Module | IndraDrive CPU

Description

Product Introduction & Engineering Value

When a motion loop drops synchronization packets, operators face costly line stoppages. The Rexroth CSH01.3C-ET-ENS-NNN-CCD-NN-S-NN-FW advanced control section provides high-speed multi-ethernet connectivity to keep servo drives locked in phase.

Engineered for direct placement inside IndraDrive chassis units, this module handles rigorous encoder feedback and rapid position loops. Maintenance teams depend on its modular layout for fast emergency swaps.

Technical Specifications

Field Application & The “Trench” Experience

During a high-speed runtime on a multi-axis aluminum extrusion puller line, an unexpected power transient fried the control section of a primary IndraDrive controller, halting production mid-shift. Sourcing a complete drive replacement would have required extensive mechanical unbolting and wiring changes. The plant electrical team pulled a verified surplus CSH01.3C-ET-ENS-NNN-CCD-NN-S-NN-FW control unit from inventory, transferred the parameter memory card, and seated the plugin module into the existing power chassis. The drive recognized the network topology instantly upon power-up, restoring precise axis synchronization without requiring a full software rewrite.

Targeted Application Scenarios:

• High-Speed CNC Gantry Routing: Managing tight interpolation and multi-axis trajectory profiles across high-acceleration servo axes.
• Automated Web Converting Lines: Synchronizing master-slave roller velocity loops over multi-ethernet communication protocols.

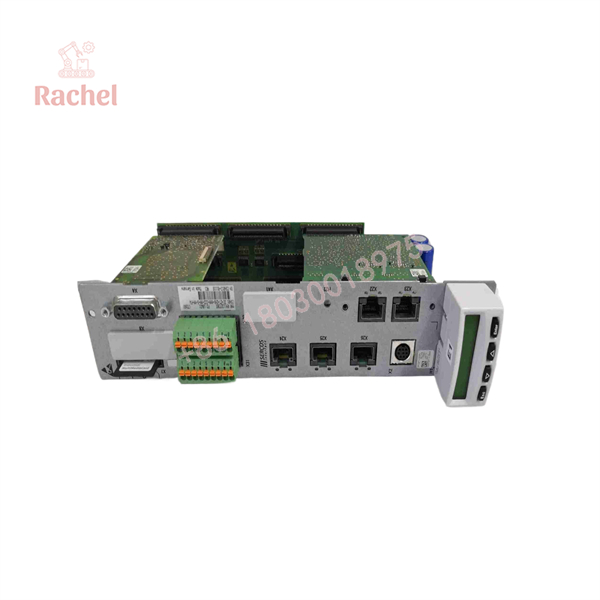

CSH01.3C-ET-ENS-NNN-CCD-NN-S-NN-FW

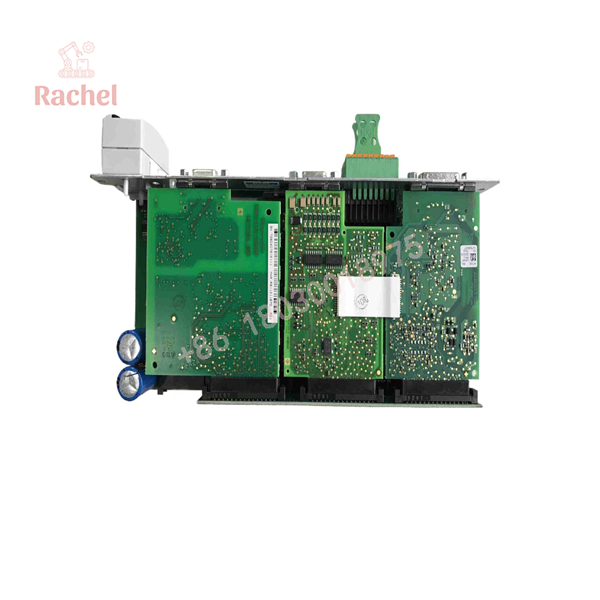

CSH01.3C-ET-ENS-NNN-CCD-NN-S-NN-FW

Transparency SOP: QA & Testing

1. Visual Pin Inspection: Microscopic examination of the multi-pin backplane connector interface and slot guides for bent pins or contamination.
2. Logic Power Stress Test: Seating the control card into a live IndraDrive test chassis to verify 24V DC bus stability and processor initialization.
3. Communication Protocol Check: Running diagnostic handshakes across the Multi-Ethernet port to verify packet transmission integrity and firmware responsiveness.
4. Thermal Chamber Cycle: Operating the module under simulated cabinet temperature loads for 24 hours to screen out latent micro-component flaws.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ FIRMWARE FLASH COMPATIBILITY: Never swap a control card into a different power section without checking the underlying firmware version. Mismatched firmware containers between the control module and power chassis will throw fatal drive errors and refuse to enable the output stage.

PRO TIP: Always back up your parameter set using IndraWorks DS before extracting a failed control module. If the onboard memory backup fails during a hard power loss, having the project file saved locally saves hours of manual tuning restoration.

Dynamic FAQ

• Q: Can the CSH01.3C-ET-ENS module communicate over standard Ethernet-based industrial networks?
  • A: Yes, the -ET designation indicates a Multi-Ethernet interface capable of handling protocols like Sercos III, PROFINET IO, EtherNet/IP, or SERCOS depending on the loaded firmware package.
• Q: What encoder types are supported by the -ENS option code?
  • A: The ENS interface natively supports high-resolution digital encoders utilizing EnDat 2.1 protocol, as well as standard 1Vpp and TTL incremental encoder feedback signals.
• Q: Is this control unit interchangeable with basic CSB series modules?
  • A: No, CSH Advanced control units feature higher processing capability and expanded option slot features compared to basic CSB controllers. You must match the exact hardware family code.
• Q: Are your replacement CSH01.3C units brand new or surplus?
  • A: Our stock consists of verified New Surplus and fully reconditioned, bench-tested units backed by a 12-month warranty.
