Description
Core Product Summary
The SAACKE FSM 006A64 is a specialized flame monitoring and safeguard controller module manufactured by SAACKE for industrial combustion systems and burner management architectures. Engineered to verify flame presence during burner startup and continuous firing sequences, this unit processes inputs from flame detectors to ensure safe plant operation.
Designed for cabinet panel integration within utility boilers, thermal processing furnaces, and industrial burner control systems, the FSM 006A64 evaluates flame signals and maintains safety interlocking with automated fuel shut-off valves. Upon detecting flame extinction or an unverified ignition sequence, the controller immediately interrupts safety circuit outputs to prevent unburned fuel accumulation.
Key Technical Specifications
| Parameter | Specification |
| Product Type | Flame Monitoring Controller / Flame Safeguard Module |
| Manufacturer | SAACKE |
| Model / Part Number | FSM 006A64 |
| Primary Function | Flame signal evaluation & burner safety interlocking |
| System Compatibility | SAACKE burner management systems & combustion control panels |
| Input Signal Interface | Compatible optical / ionization flame scanner inputs |
| Output Type | Relay switching contacts for safety fuel trip loops |
| Mounting / Form Factor | Plug-in module for control cabinet sub-racks or terminal bases |
| Operating Environment | Enclosed industrial control panel |
Detailed Product Overview
The SAACKE FSM 006A64 plays a fundamental role in preserving process safety across automated industrial burner installations. By monitoring signal output from connected flame sensors—such as UV scanners, IR detectors, or ionization probes—the module continuously verifies the stability and presence of the burner flame against configured thresholds.
In industrial combustion environments, fast-response flame evaluation is required to protect equipment and personnel. The FSM 006A64 discriminates between true flame signals, background radiation, and sensor electrical faults. If a flame failure occurs, the controller trips its output relays, triggering the immediate closure of main safety shut-off valves and putting the system into a safe shutdown or lockout condition.
During installation or maintenance, field technicians must ensure correct matching with approved flame scanners, verify supply voltage specs, and route low-voltage sensor lines away from high-voltage ignition leads to maintain signal integrity and prevent false trips.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Combustion Architecture | SAACKE burner control panels & BMS cabinets | Integrates directly into hardwired burner safety interlock loops. |
| Flame Sensor Input | Compatible UV, IR, or ionization flame scanner | Flame detector type must match the module’s input circuit design. |
| Fuel Safety Interlocks | Main fuel safety shut-off valves (MSOVs) | Relay contacts interface with master fuel trip circuits. |
| Installation Space | Dust-protected control panel or rack | Requires mounting inside an IP-rated industrial enclosure. |

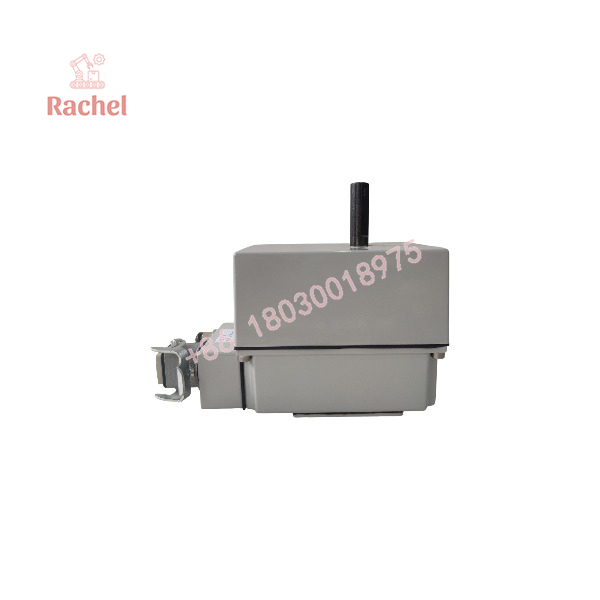

FSM 006A64

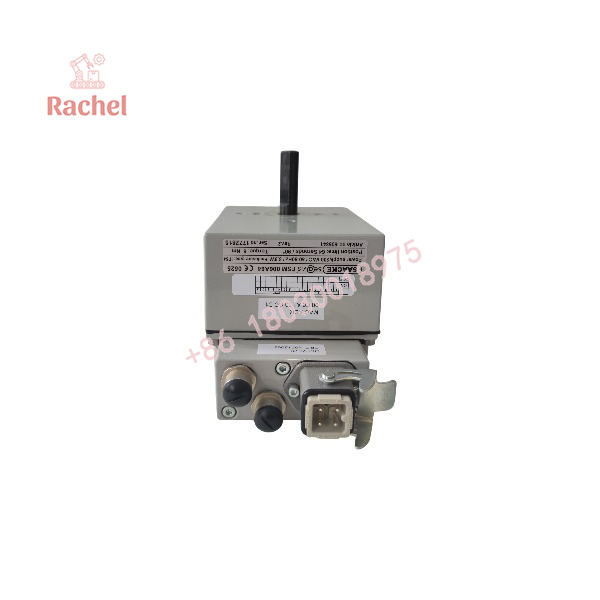

FSM 006A64
Dimensions, Mounting & Connection Notes
- Mounting Method: Modular plug-in design for installation into standard sub-racks or base terminal sockets within control cabinets.
- Cable Shielding: Sensor input cabling must be shielded and grounded according to manufacturer guidelines to mitigate electromagnetic noise from nearby ignition transformers or VFDs.
- Environmental Considerations: Intended for installation in dry, temperature-controlled industrial environments free of corrosive gases or conductive dust.
- Commissioning Practice: Functional verification of the flame failure response time and safety shutdown loop must be conducted prior to initial boiler light-off.
FAQ
What is the primary application of the SAACKE FSM 006A64?
The SAACKE FSM 006A64 is a flame safeguard monitoring module used to detect flame presence and enforce safety shutdowns in industrial burner systems.
How does the FSM 006A64 react to a flame failure?
Upon detecting a loss of flame signal during operation or ignition, the controller instantly opens its safety relay contacts to close fuel shut-off valves.
Which control systems is the FSM 006A64 designed for?
It is designed for integration into SAACKE industrial burner management systems and industrial combustion control panels.
What signal sources does the module process?
It receives and processes flame detection signals from compatible optical flame scanners or ionization detection probes.
