Schneider 140ACO02000 Modicon Quantum Analog Output Module

Description

Product Introduction & Engineering Value

The 140ACO02000 is a four-channel analog output module for legacy Modicon Quantum installations. Each channel converts PLC output data into a 4–20 mA control signal, with the module using four contiguous output words for channel data.

For maintenance teams supporting an operating Quantum system, the important point is compatibility. This is a legacy module, not a current-production selection. Schneider Electric lists it as discontinued and identifies the BMXAMO0410 as a recommended replacement, so a direct spare may be preferable when minimizing changes to an existing control configuration.

Technical Specifications

Schneider Electric documentation also specifies open-circuit detection for the 4–20 mA loops and LED indication for bus communication, external faults, channel status, and channel faults.

Field Application & the “Trench” Experience

A realistic replacement scenario is a running Quantum rack controlling several process-control loops. One 140ACO02000 channel begins reporting a loop fault while the associated control valve remains healthy. The maintenance team verifies the field wiring, loop power, and actuator first. When the fault follows the module rather than the field circuit, replacing the output card with a correctly matched 140ACO02000 restores the original I/O architecture without forcing an immediate platform migration.

That distinction matters during a shutdown. A replacement that requires new addressing, revised application logic, or different terminal arrangements can turn a simple spare-parts intervention into a controls-engineering project.

Niche applications include:

1. Process control valve positioning — 4–20 mA commands to pneumatic or electro-hydraulic control valves.
2. Variable-speed drive reference generation — analog speed/reference signals in legacy Quantum PLC systems.
3. Temperature-control loop output — sending proportional control signals to process heating or cooling equipment.

The original Quantum configuration assigns four contiguous output registers to the four channels, with 0–4095 corresponding to 4–20 mA.

Transparency SOP: QA & Testing

For New Surplus or Refurbished inventory, identification should come before electrical testing. A practical QA sequence is:

1. Part-number verification — Confirm the nameplate reads 140ACO02000, rather than visually similar Quantum analog modules.
2. Physical inspection — Check the housing, connector/interface area, terminal hardware, labels, and PCB condition for damage or unauthorized modification.
3. Power and communication check — Verify appropriate module behavior and bus-status indication.
4. Channel verification — Exercise all four analog channels and verify expected 4–20 mA output behavior across representative output values.
5. Fault testing — Check channel and external-fault indications where the available test setup permits.
6. Final documentation — Record the tested part number, condition, and applicable warranty before shipment.

Do not equate “New Surplus” with current production. Schneider Electric officially lists the 140ACO02000 as discontinued.

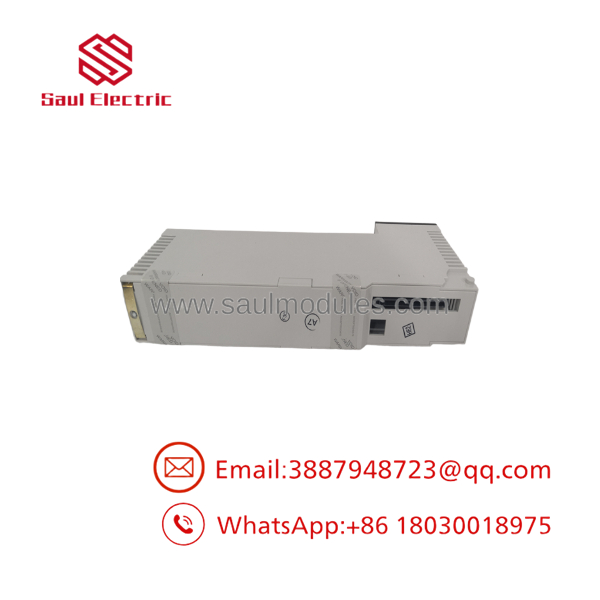

140ACO02000

140ACO02000

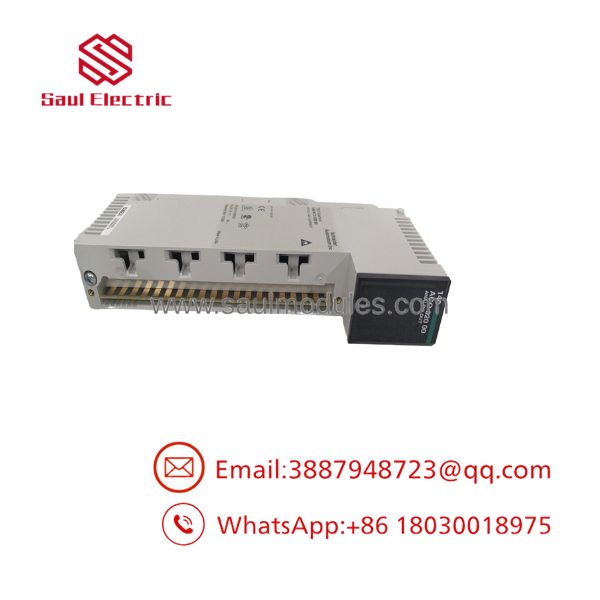

140ACO02000

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating the replacement as a generic 4–20 mA card

It is not. The 140ACO02000 is tied to the Modicon Quantum architecture and uses a specific four-word output mapping. Replacing it with another analog card without checking the PLC configuration can produce incorrect channel assignments or scaling.

⚠️ Trap #2 — Ignoring external loop power

The specified external power requirement is 12–30 VDC. Verify the field loop supply before condemning the module. A missing or unstable loop supply can look like a failed analog output card.

⚠️ Trap #3 — Assuming the recommended replacement is a drop-in swap

Schneider Electric recommends the BMXAMO0410 as a replacement. That does not automatically mean it can be installed without engineering review. It belongs to the Modicon X80 family and should be evaluated for rack architecture, addressing, configuration, wiring, and application compatibility before migration.

PRO TIP: For a critical legacy Quantum system, compare the existing module’s exact catalog number, PLC configuration, I/O mapping, wiring arrangement, and installed firmware/software environment before ordering a substitute.

Dynamic FAQ

Q1. Is the Schneider 140ACO02000 still manufactured?
No. Schneider Electric lists the 140ACO02000 as discontinued. Exact discontinuation dates vary by regional Schneider Electric website, while Schneider’s published product information identifies December 31, 2030 as the end-of-service date on the referenced product pages.

Q2. How many analog outputs does the 140ACO02000 provide?
It provides four analog current outputs, each configured for the 4–20 mA range.

Q3. What resolution does this module use?
The module uses 12-bit resolution, with 0–4096 counts representing the 4–20 mA output range according to the documented I/O mapping.

Q4. What is the recommended Schneider replacement?
Schneider Electric identifies the BMXAMO0410 as a recommended replacement for the 140ACO02000. Engineering compatibility should still be checked before migration.

Q5. Can New Surplus 140ACO02000 units be authentic if Schneider lists the part as discontinued?
Yes. “Discontinued” describes the manufacturer’s current commercialization status; it does not mean previously manufactured inventory cannot remain unused in storage. For New Surplus procurement, verify the original manufacturer labeling, catalog number, physical condition, and traceability where available.

Q6. What warranty should I expect when buying surplus or refurbished stock?
Warranty terms depend on the supplier and condition classification. Do not assume Schneider’s historical manufacturer warranty applies to third-party surplus inventory. Obtain the supplier’s written warranty terms and confirm whether they cover functional failure, DOA conditions, and return requirements before purchase.
