Description
Product Introduction
The Schneider Electric Modicon 140CPU11303 is a compact, single-slot central processing unit engineered for entry- to mid-level applications within the Modicon Quantum PLC architecture. Built around a high-efficiency 80186-class microprocessor with an integrated math coprocessor, it provides fast Boolean logic execution and floating-point math capability for process control systems.
Featuring 512 KB of onboard RAM, the 140CPU11303 supports standalone control tasks or integrated network architectures. Equipped with one Modbus Plus peer-to-peer network port and two Modbus RS-232 serial ports, it allows seamless connectivity to HMI panels, programming workstations, and field devices without requiring extra communication cards in small racks.
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | Central Processing Unit (CPU) |
| Part Number | 140CPU11303 |
| Manufacturer | Schneider Electric / Modicon |
| Platform Compatibility | Modicon Quantum Automation Series Backplanes |
| Processor Type | 80186 (20 MHz) with Math Coprocessor |
| User Memory | 512 KB RAM (Battery-backed) |
| Communication Ports | 1x Modbus Plus (DB9), 2x Modbus RS-232 (RJ45/DB9) |
| Execution Speed | 0.3 µs to 0.5 µs per 1k Boolean instructions |
| Max Local I/O Capacity | Up to 64 local/remote drops |
| Bus Current Requirement | ~780 mA max at 5.1V DC (from backplane) |
| Backup Battery | 3.6V Lithium Cell (behind front access door) |
Application Scenarios & Field Experience
The 140CPU11303 is widely deployed in standalone process skids, small-scale utility panels, and decentralized machine automation where a compact single-slot controller is required.
- Pumping Stations & Valve Controls: Managing local sequencing, flow calculations, and transmitting telemetry back to central SCADA via Modbus Plus.
- Material Handling & Conveyor Control: Executing fast discrete logic and managing high-speed photo-eye / encoder inputs on distribution lines.
- HVAC & Industrial Air Handlers: Regulating fan speed, damper actuators, and temperature PID loops across commercial or industrial facilities.
- OEM Processing Skids: Serving as the dedicated local controller for chemical feed skids, filtration racks, and lube oil packages.
Field Case Study: A municipal water station suffered a sudden PLC failure when an old 140CPU11302 module lost its internal memory due to a depleted backup battery during a plant power outage. Upgrading the skid with a bench-tested surplus 140CPU11303 restored full machine operations. Installing a fresh lithium backup battery ensured user program retention across future power cycles.
Quality Assurance & Testing Procedure
Every surplus 140CPU11303 processor undergoes a complete live-rack diagnostic test prior to dispatch:
- Visual & Mechanical Check: Inspection of faceplate latches, backplane pin integrity, front panel status LEDs, and internal battery compartment contacts.
- Backplane Handshake & Power-On Diagnostics: Seated in a Quantum test chassis to verify power distribution, 5.1V bus health, and system boot routines.
- Firmware & Memory Stress Test: Programmed using Concept / Unity Pro to execute dense math and logic instructions while monitoring 512 KB RAM stability and battery circuit operation.
- Communication Port Verification: Simultaneous data transmission testing across the Modbus Plus port and both RS-232 serial ports to verify physical transceivers and baud rate stability.
- ESD-Safe Packaging: Fitted with a new 3.6V battery, static-shielded, and packaged in custom protective foam cradles.

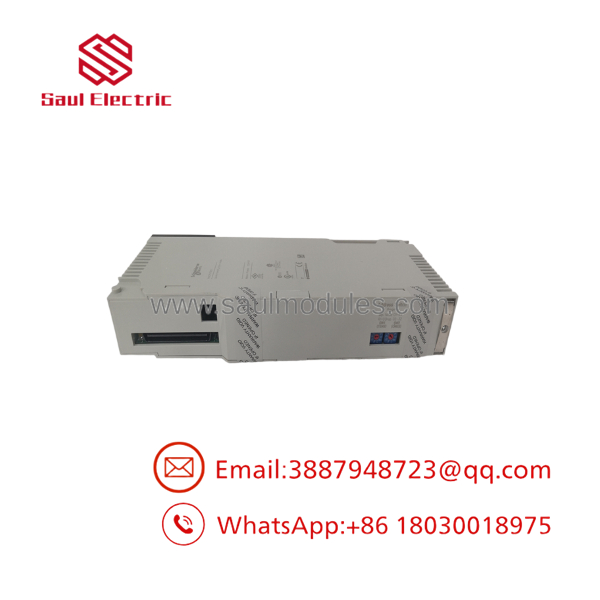

140CPU11303

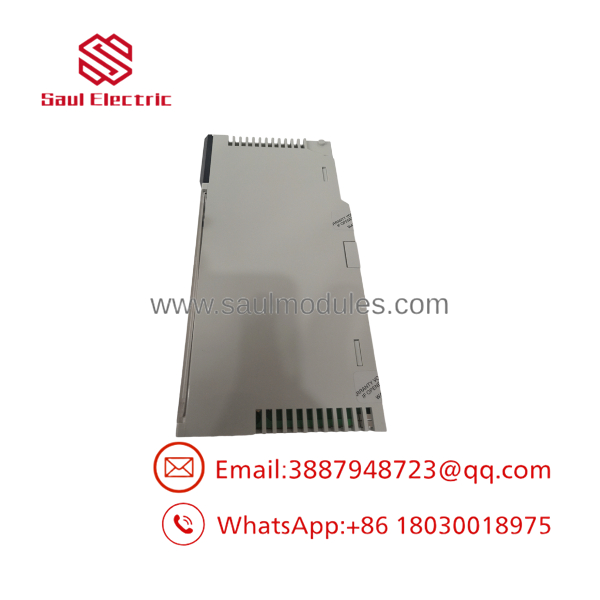

140CPU11303
Technical Field Tips & Traps
- ⚠️ Replace the 3.6V Lithium Battery Before Installation: User RAM is volatile. If power is removed from the rack and the 3.6V battery is dead or missing, the CPU will lose its program and system configuration immediately. Replace the front-panel lithium cell routinely every 1–2 years.
- ❗ Check Key Switch Position During Boot: Ensure the front-panel key switch is turned to Start / Memory Protect Off when downloading programs or allowing auto-start after power restoration. Leaving the switch locked in “Stop” will prevent automatic run-mode execution.
- ⚠️ Set Modbus Plus Node Address Correctly: The DIP switches behind the front cover determine the CPU’s unique Modbus Plus network address. Verify that the address matches your system network map before connecting the DB9 cable to prevent network collisions.
- ❗ Mind the Programming Software Compatibility: Depending on the firmware revision loaded on the 140CPU11303, the CPU is configured via ProWORX 32, Concept, or Modsoft. Verify your software suite supports the specific firmware installed on the unit.
Frequently Asked Questions
Q: Can the 140CPU11303 be replaced with a higher-capacity CPU (like a 140CPU43412A)?
A: Yes. Higher-tier Quantum CPUs use the same physical slot architecture. However, you must update the hardware configuration in your programming software to match the new CPU model before downloading the program.
Q: Does this CPU support Hot Swapping (RIUP)?
A: While Quantum backplanes support Hot Swapping for I/O cards, pulling the main CPU card while energized will immediately stop all PLC scan execution and drop all outputs. Always power down or put connected processes in a safe state before swapping the CPU.
Q: What cable is used to connect to the RS-232 serial ports for programming?
A: Programming via the RS-232 serial ports requires a standard Modicon Modbus serial cable (such as the 990NAA26320 RJ45-to-DB9 adapter cable or equivalent).
Q: What is the difference between 140CPU11302 and 140CPU11303?
A: The 140CPU11303 is an updated hardware revision of the 11302 series, featuring enhanced onboard memory management, updated communication firmware, and improved math execution efficiency.
