Description
Product Introduction & Engineering Value
The Schneider Electric 140ATI03000 is a Modicon Quantum analog input module used to bring field-level analog measurements into the PLC control system. It belongs to the Quantum I/O family and is intended for applications where process measurements must be monitored and incorporated into the control program.
For replacement work, the important issue is not simply matching the part number. Check the existing Quantum rack configuration, field wiring, channel assignments, signal characteristics, and application logic before installation. A correct module with incorrect field configuration can still create commissioning problems.
Technical Specifications
- Model: 140ATI03000
- Manufacturer: Schneider Electric
- Product family: Modicon Quantum
- Module category: Analog input
- Number of inputs: 8 channels
- PLC platform: Modicon Quantum
- Installation: Quantum I/O rack/backplane
- Application: Process signal acquisition
- Signal interface: Analog field signals
- Use case: Monitoring and control-system input acquisition
Engineering note: Verify the original hardware documentation and module label before ordering. Quantum modules can have similar-looking catalog numbers with different electrical characteristics, and field wiring should never be assumed from appearance alone.
Field Application & the “Trench” Experience
A common maintenance scenario is a Quantum control rack that has been operating for years when one analog measurement suddenly becomes unreliable. The PLC program may continue running, but the associated process value begins drifting or intermittently dropping out. Before replacing the entire rack, a technician can isolate the I/O channel, verify the transmitter and field wiring, then compare the suspect module against the installed 140ATI03000 configuration.
That approach matters in an operating plant. Replacing a functioning rack unnecessarily creates additional commissioning risk.
Typical applications include:
- Boiler feedwater monitoring — collecting analog process measurements used by supervisory and control logic.
- Chemical process skids — integrating transmitter signals into a Quantum-based control panel.
- Motor-driven process equipment — acquiring analog feedback used for operating-condition monitoring and interlocks.

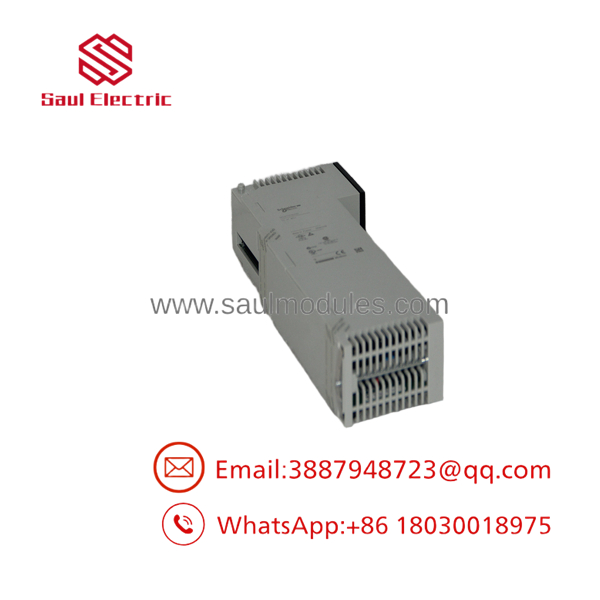

140ATI03000

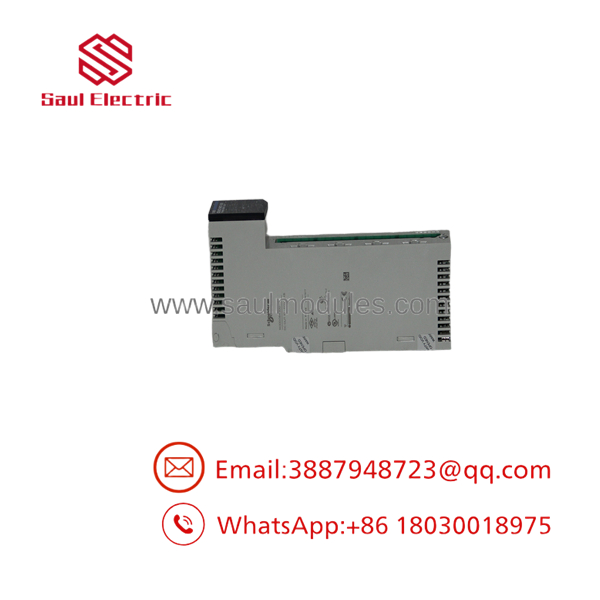

140ATI03000

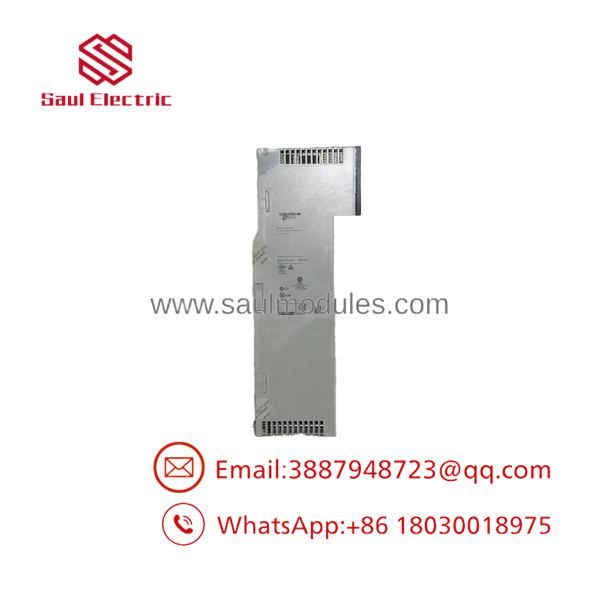

140ATI03000
Transparency SOP: QA & Testing
For New Surplus inventory, the practical QA sequence should include:
- Part-number verification — confirm the complete 140ATI03000 catalog number and hardware markings.
- Physical inspection — check the housing, connectors, terminal interfaces, labeling, and mounting features for damage.
- Electrical inspection — verify that there are no obvious signs of contamination, overheating, corrosion, or component damage.
- Functional testing — where test equipment and a compatible Quantum test environment are available, verify module operation and channel behavior.
- Final documentation check — record the tested condition and distinguish New Surplus, Used, or Refurbished status clearly.
New Surplus should mean unused inventory, not simply a cleaned used module. Procurement records should identify the stock condition before purchase.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t assume the signal type.
The 140ATI03000 part number must be matched against the actual application documentation. Do not connect a field transmitter merely because the connector and module format appear compatible.
⚠️ Trap #2 — Preserve channel mapping.
Before removing the existing module, document every channel assignment, field device, scaling value, and PLC tag. A hardware replacement can be electrically correct while the control application remains wrong because of an undocumented channel change.
PRO TIP: Photograph the installed rack and wiring before removal. For legacy Quantum systems, that simple record can save considerable troubleshooting time during recommissioning.
⚠️ Trap #3 — Check the complete ordering code.
Do not substitute a visually similar Quantum analog module without confirming its electrical specifications and compatibility with the existing rack and application.
Dynamic FAQ
Q: What is the Schneider 140ATI03000 used for?
A: It is a Modicon Quantum analog input module used to acquire analog process signals for PLC-based monitoring and control.
Q: How many analog inputs does the 140ATI03000 provide?
A: The module is configured with 8 analog input channels.
Q: Can I use any Quantum analog input module as a replacement?
A: No. The replacement should be matched by exact catalog number, electrical signal requirements, rack compatibility, and the application’s existing configuration.
Q: What should I verify before ordering a 140ATI03000?
A: Confirm the complete part number, installed Quantum platform, channel requirements, field signal characteristics, physical condition required, and whether your application requires New Surplus, refurbished, or another stock condition.
Q: How do I verify New Surplus authenticity?
A: Request clear photos of the actual module, including the manufacturer label and catalog number, and ask the supplier to state the stock condition and available inspection or test records.
Q: Is a warranty available?
A: Warranty terms depend on the supplier and stock condition. The quotation should explicitly state the warranty period, coverage, return procedure, and whether testing was performed before shipment.
