Schneider Electric 140CPU67160S Dual-Slot Redundant Safety CPU

Description

Product Introduction

The Schneider Electric Modicon 140CPU67160S represents the pinnacle of the Quantum automation architecture: a SIL3 Safety Standby Processor designed for environments where process failure presents extreme safety risks or astronomical downtime costs. Occupying a dual-slot footprint on the Quantum rack, it combines TÜV-certified safety logic execution with native, high-speed optical Hot Standby synchronization.

Operating under Unity Pro Safety / EcoStruxure Control Expert, the 140CPU67160S isolates safety logic execution from standard control tasks while maintaining continuous state-memory mirroring across primary and secondary standby racks. Featuring built-in Ethernet, USB programming, and a dedicated safety key switch, it eliminates the need for separate standalone Hot Standby cards (such as the 140CHS11000) when building redundant safety systems.

Key Technical Specifications

Application Scenarios & Field Experience

The 140CPU67160S is deployed in high-consequence critical infrastructure where both process safety (ESD) and 100% operational uptime are mandatory.

• Offshore Oil & Gas Production Platforms: Emergency Shutdown (ESD) and Fire & Gas (F&G) systems requiring SIL3 fault tolerance and zero-downtime CPU failover.
• Chemical & Petrochemical Reactors: Managing runaway reaction quenching systems and toxic gas isolation valves with redundant dual-rack protection.
• Nuclear & Power Plant Boiler Safeguards: Executing burner management safety routines (BMS) with continuous fiber-optic state synchronization.
• High-Pressure Gas Compression Pipelines: Monitoring overpressure safety trip valves (HIPPS) across long distances.

Field Case Study: An offshore refinery’s hydrocarbon flare recovery system suffered a lightning-induced surge that blew the main CPU power rail on Rack A. Because the safety loop was driven by dual 140CPU67160S controllers over dedicated fiber, Rack B executed a total safety lock sync in under 12 milliseconds. The plant maintained continuous flare monitoring without tripping the upstream production units or risking a safety shutdown violation.

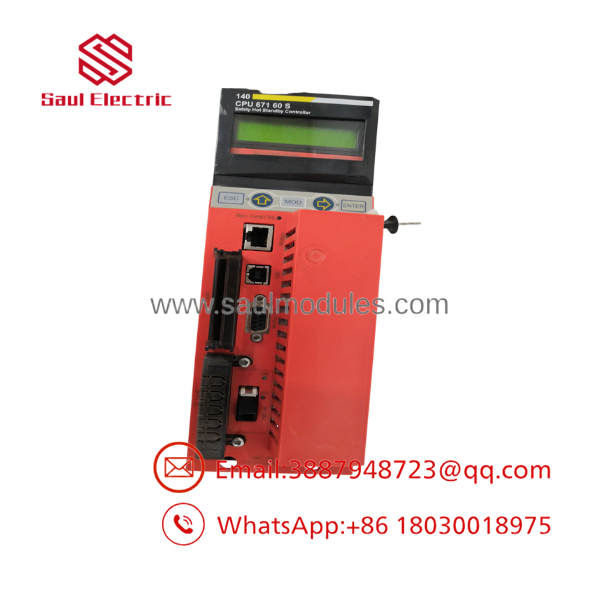

140CPU67160S

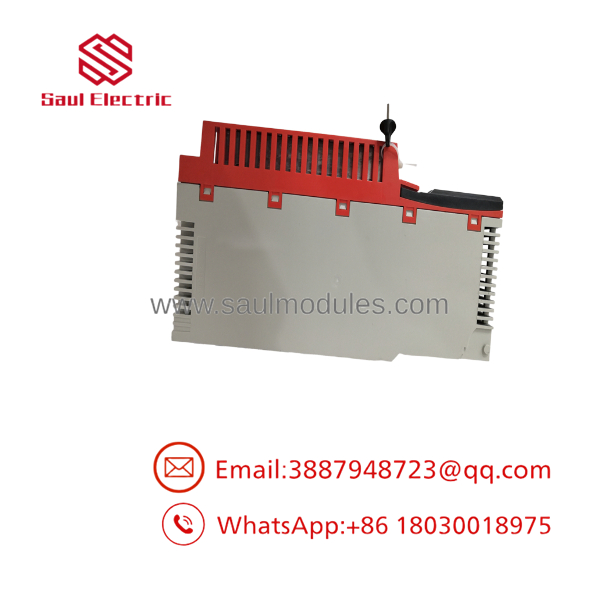

140CPU67160S

Quality Assurance & Testing Procedure

Every surplus 140CPU67160S processor undergoes an exhaustive dual-rack safety diagnostic protocol prior to dispatch:

1. Visual & Structural Audit: Inspecting backplane pins, housing clips, fiber-optic ST sync ports, USB/RJ45 connectors, and physical key switch action.
2. Dual-Rack Hot Standby Synchronization Test: Installed in two adjacent Quantum safety racks running EcoStruxure Control Expert Safety. We force main rack power drops to confirm sub-scan memory mirror transfer and seamless output hold.
3. Safety Kernel Memory & Loop Validation: Executing diagnostic routines to verify SIL3 safety memory segregation, CRC checksum validation, and watchdog timing circuits.
4. Optical Power & Ethernet Stress Test: Measuring optical transceiver output levels on the Hot Standby fiber port and validating 10/100 Ethernet Modbus TCP communications under heavy network traffic.
5. ESD-Safe Packaging: Fitted with a fresh 3.6V lithium battery, static-shielded, and packaged in custom protective foam cradles.

Technical Field Tips & Traps

• ⚠️ High Current Demand (Dual Slot): Drawing up to 2.76 Amps off the 5.1V DC rail, the 140CPU67160S requires heavy backplane power. Ensure your power supply (e.g., 140CPS11420 or dual summable PSUs) can carry the total current load of the dual-slot CPU plus all adjacent network cards.
• ❗ Safety Key Switch Management: The physical key switch on the red front panel controls safety memory lock/unlock states. If the key switch is left unlocked or missing, the CPU will refuse to enter validated SIL3 execution mode after a program download.
• ⚠️ Strict Fiber-Optic Sync Cleanliness: The module utilizes an onboard fiber-optic port for CPU-to-CPU Hot Standby sync. Contaminated or bent optical patch cables will cause intermittent “Sync Lost” alarms, dropping the standby rack into offline mode.
• ❗ Software Licensing & Safety Firmware: Configuring the 140CPU67160S requires Unity Pro / EcoStruxure with Safety Extensions. Additionally, both primary and secondary CPUs must run identical safety executive firmware levels to achieve synchronized backup status.

Frequently Asked Questions

Q: Does the 140CPU67160S require a separate 140CHS11000 Hot Standby module?

A: No. Unlike standard Quantum CPUs, the 140CPU67160S features built-in optical Hot Standby synchronizing hardware directly inside its dual-slot casing.

Q: Can standard (non-safety) Quantum I/O cards be connected to this CPU?

A: Yes. The 140CPU67160S can execute both standard control logic and SIL3 safety logic simultaneously. Standard I/O can be read, but safety-critical control functions must use certified Quantum Safety I/O modules (e.g., 140SDI…, 140SDO…).

Q: What cable is used to program the safety controller?

A: Programming and project validation are typically performed over the front USB Type-B port or via the Ethernet Modbus TCP port using EcoStruxure Control Expert Safety.

Q: Can I hot-swap a failed 140CPU67160S in a running system?

A: Yes. In a redundant dual-rack Hot Standby setup, replacing a failed CPU on the secondary rack can be done while the primary rack maintains full control of the plant.
