Product Introduction

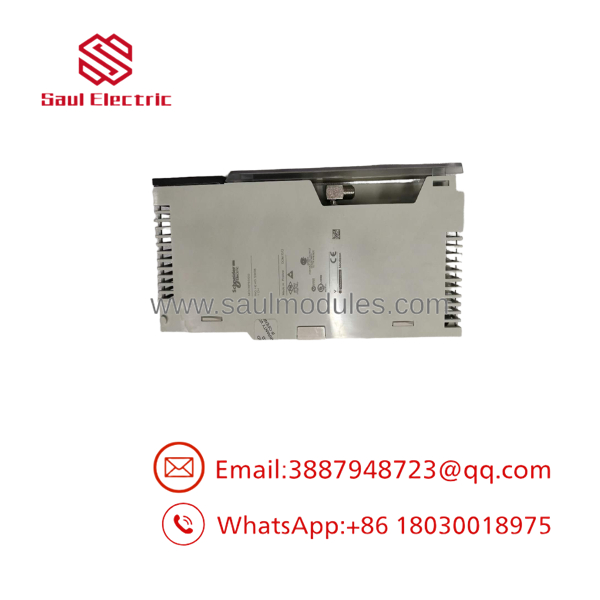

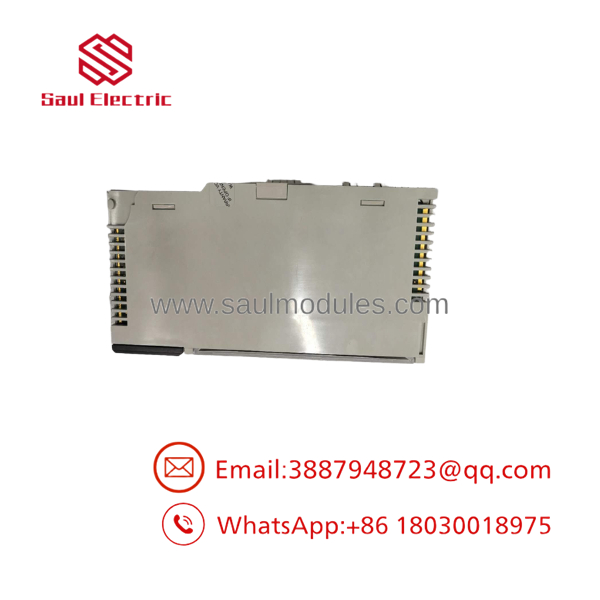

The Schneider Electric Modicon 140CRP93100 is a single-cable Remote I/O (RIO) head module designed for the Modicon Quantum PLC system. Installed in the primary CPU rack, it functions as the master communications interface that coordinates data exchange between the central processor and distributed expansion racks across a coaxial cable network.
Transmitting at a deterministic 1.544 Mbit/s, the 140CRP93100 offloads network scanning from the main CPU. It continuously updates digital and analog I/O points residing on up to 31 remote drop adapters (such as the 140CRA93100) and passes the unified process image to the Quantum backplane.
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | Remote I/O (RIO) Head Processor |
| Part Number | 140CRP93100 |
| Manufacturer | Schneider Electric / Modicon |
| Platform Compatibility | Modicon Quantum Local CPU Racks |
| Network Interface | 1x Coaxial Port (Single F-Connector, 75 Ohm) |
| Cable Type | Standard 75-Ohm Coaxial (RG-6 or RG-11) |
| Transmission Rate | 1.544 Mbit/s (S3908 RIO protocol) |
| Max Network Capacity | Up to 31 Remote Drops |
| Bus Current Requirement | ~600 mA max at 5.1V DC (from backplane) |
| Diagnostic LEDs | Active, Ready, Fault, Comm Error, Drop Status LEDs |
Application Scenarios & Field Experience
The 140CRP93100 is key in large-scale industrial facilities where a central CPU needs to oversee multiple distributed remote racks located across large physical distances.
- Power Generation Facilities: Linking a primary turbine control rack to remote burner management and cooling tower I/O drops over long coaxial runs.
- Continuous Chemical Processing: Coordinating centralized SCADA logic with remote chemical dosing and tank farm drops spread across the plant site.
- Mining & Bulk Material Systems: Controlling long overland conveyor systems and crushers from a central control room.
- Water Distribution Networks: Managing distant filtration basins, pump houses, and chemical feed stations via a single trunk line.
Field Case Study: A municipal water treatment plant experienced recurring communication dropouts between the main Quantum processor and three remote filter bed racks. Diagnostic logs pointed to intermittent signal attenuation at the head module. Replacing an aging 140CRP93100 head card and re-terminating the main RG-11 trunk line eliminated all CRC errors and stabilized drop scan rates to under 15 ms across all nodes.
140CRP93100
Quality Assurance & Testing Procedure
Every surplus 140CRP93100 head card undergoes a comprehensive live-network diagnostic test before dispatch:
- Visual & Structural Audit: Inspecting backplane connector pins, side latches, and the physical integrity of the 75-Ohm coaxial F-connector threads.
- Backplane Handshake & Power-On Test: Seated in a primary Quantum test rack to confirm proper 5.1V power consumption and initial self-diagnostic routine pass.
- Multi-Drop RIO Network Stress Test: Connected to multiple downstream 140CRA93100 drop adapters over an RG-6 coaxial network to confirm full 31-drop scanning and packet integrity under heavy traffic.
- Coaxial Signal Integrity Check: Verifying transmitter power output and receiver sensitivity across long cable runs.
- ESD-Safe Packaging: Cleaned, static-shielded, and safely packed in custom protective foam cradles.
Technical Field Tips & Traps
- ⚠️ Head vs. Drop Identification: Do not confuse the 140CRP93100 (Head module—placed in the main CPU rack) with the 140CRA93100 (Drop module—placed in remote I/O racks). Installing a head module in a remote drop rack will cause communication faults.
- ❗ Single Cable vs. Redundant Topology: The 140CRP93100 supports a single coaxial cable path. If your process criticalities demand dual-cable redundant physical links, you must use the 140CRP93200 dual-port head card instead.
- ⚠️ Proper 75-Ohm Termination: Ensure a proper 75-Ohm terminator resistor is attached to the physical end of the coaxial network line. Missing or damaged terminators lead to signal reflection, packet loss, and intermittent “Drop Fault” indications.
- ❗ Backplane Slot Placement: Place the 140CRP93100 in an appropriate option slot of the primary Quantum CPU rack as defined in your software hardware configuration (Concept, ProWORX, or EcoStruxure Control Expert).
Frequently Asked Questions
Q: What is the main difference between the 140CRP93100 and the 140CRP93200?
A: The 140CRP93100 has a single coaxial connector for single-cable networks, while the 140CRP93200 features dual coaxial connectors to support redundant cable paths (A and B).
Q: Can a 140CRP93100 master communicate with 140CRA93200 redundant drop modules?
A: Yes. A single-cable head card (140CRP93100) can communicate with dual-cable drop adapters (140CRA93200), though only Cable Path A will be active.
Q: What maximum distance does the 140CRP93100 support?
A: Standard RG-6 coaxial cable supports up to 1,500 feet (450 meters) per segment. Using RG-11 cable, trunk splitters, or fiber optic converters (such as 140NOE/fiber modems), distances can extend significantly further.
Q: Does this module require firmware configuration in software?
A: You must add and configure the 140CRP93100 within your programming software’s I/O Map (Concept, ProWORX 32, or Unity Pro/EcoStruxure Control Expert), assigning the specific remote drop numbers it will scan.
