Schneider Modicon 140DRA84000 Quantum 16-Point Relay Output Module

Description

Product Introduction

The Schneider Electric Modicon 140DRA84000 is a versatile 16-point electromechanical relay output module designed for the Modicon Quantum PLC platform. Featuring true dry-contact switching, it allows the PLC to control mixed AC and DC voltage loads across the same physical card without solid-state leakage current issues.

Arranged into four isolated groups of four Normally Open (NO) contacts each, the 140DRA84000 is engineered for high electrical isolation between field control power and internal backplane logic. Front-panel status LEDs give instant visual confirmation of each output channel’s energized state for fast diagnostic checks.

Key Technical Specifications

Application Scenarios & Field Experience

The 140DRA84000 is selected when a combination of AC and DC field loads must be driven from a single card, or where zero off-state leakage is required to prevent sensitive electronic loads from staying partially energized.

• Mixed AC/DC Control Skids: Driving 24V DC pilot relays on Group 1 while switching 120V/230V AC solenoid valves on Groups 2–4.
• Interposing Relay Drives: Actuating motor control center (MCC) starter coils, trip circuits, and breaker closing coils.
• Zero-Leakage Pilot Circuits: Interfacing with sensitive digital inputs, electronic alarms, or low-wattage indicators that misread solid-state Triac/Transistor leakage.
• Water & Wastewater Treatment: Switching chemical dosing pumps, motorized valve actuators, and local annunciator panels.

Field Case Study: A plant experienced erratic behavior with electronic alarm modules that remained partially triggered due to off-state leakage from a Triac output card (140DAO84000). Replacing the Triac card with a 140DRA84000 provided complete mechanical isolation and 0 mA off-state leakage, resolving the false alarms immediately without requiring external load resistors.

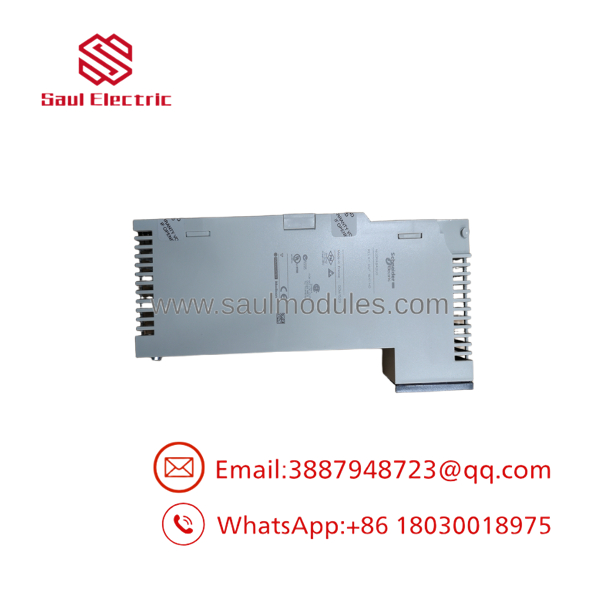

140DRA84000

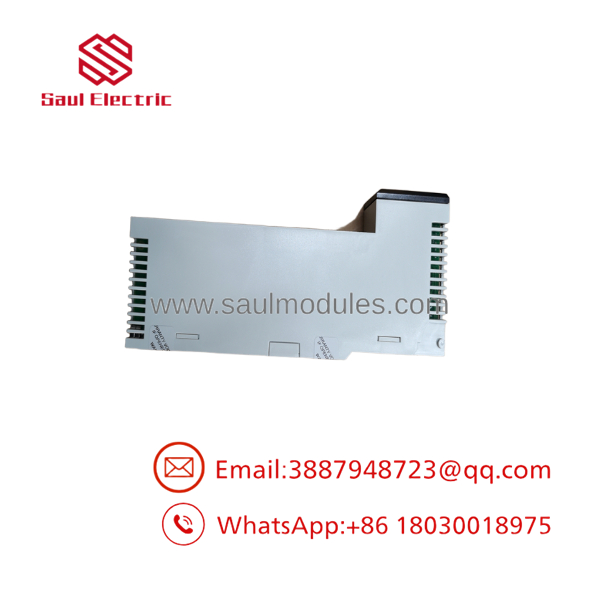

140DRA84000

Quality Assurance & Testing Procedure

Every surplus 140DRA84000 module undergoes a thorough 16-channel electromechanical load test prior to dispatch:

1. Visual & Structural Audit: Inspecting backplane pins, housing latches, relay seating, and 40-pin connector guide slots.
2. Backplane Handshake & Power-On Test: Seated in a Quantum test chassis to verify proper 5.1V bus current draw (~750 mA) and logic communication.
3. 16-Channel Contact Resistance & Switching Test: Actuating each relay contact under simulated AC and DC loads to verify low contact resistance (≤30 mΩ), clean mechanical operation, and status LED activation.
4. Group Isolation Test: Testing optical and mechanical isolation between all 4 independent groups at high potential.
5. ESD-Safe Packaging: Cleaned, static-shielded, and securely packed in custom protective foam cradles.

Technical Field Tips & Traps

• ⚠️ Higher Backplane Power Consumption: Electromechanical relay coils draw significant power from the 5.1V DC backplane bus (~750 mA when all 16 relays are energized). Ensure your Quantum power supply (e.g., 140CPS11420) has enough headroom to support all modules in the rack.
• ❗ Contact Life Expectancy (Mechanical Wear): Unlike solid-state cards (Triac/Transistor), mechanical relay contacts have a finite lifespan (~100,000 cycles under full electrical load). For ultra-high-speed or high-duty-cycle PWM switching, choose a solid-state module like the 140DAO84000 or 140DDO35300.
• ⚠️ Inductive Load Suppression: When switching inductive loads (such as solenoid coils or contactors), always install external arc suppressors (RC snubbers for AC loads, flyback diodes for DC loads) across the field load to prevent contact arcing and prolong contact life.
• ❗ Group Current Limits: Respect both the per-point limit (2 A) and the per-group limit (5 A total per 4-point group). Exceeding group limits can overheat internal circuit board traces.

Frequently Asked Questions

Q: Can I mix AC and DC voltages on the same 140DRA84000 card?

A: Yes. Because the card is organized into 4 isolated groups of 4 contacts, you can wire a different voltage (e.g., 24V DC on Group 1, 120V AC on Group 2, and 230V AC on Group 3) as long as each group’s rating is respected.

Q: What is the main difference between 140DRA84000 and 140DAO84000?

A: The 140DRA84000 uses mechanical relays (supports both AC and DC with zero leakage), whereas the 140DAO84000 uses solid-state Triacs (supports AC loads only and exhibits small off-state leakage).

Q: Can I replace a 140DRA84000 while the PLC rack is powered (Hot Swap)?

A: Yes, Quantum racks support Removal and Insertion Under Power (RIUP). However, disconnect or isolate field power to the removable 40-pin terminal block (140XTS00200) before removing the wiring arm.

Q: How do I configure this card in Unity Pro / EcoStruxure Control Expert?

A: Select 140DRA84000 from the discrete output module library in your hardware catalog, place it in the designated rack slot, and map the 16 discrete output bits (%Q) to your logic variables.
