Description
Product Introduction
Schneider Electric 871EC-SP0 is an industrial-grade non-contact proximity sensor designed for harsh factory environment sensing. It installs into standard mounting brackets and integrates directly with digital PLC input modules, relay coils, or remote I/O nodes.
Engineered with high noise immunity, this sensor handles high electrical vibration environments without triggering false inputs. Unlike cheap mechanical limit switches that wear out after repeated hits, the solid-state design delivers consistent detection cycles across million-plus operation lifetimes.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Schneider Electric |
| Model Number | 871EC-SP0 |
| Sensor Type | Proximity Switch |
| Housing Style | Cylindrical / Threaded Barrel |
| Housing Material | Nickel-Plated Brass / Heavy-Duty Industrial Composite |
| Mounting Type | Flush / Non-Flush (per mounting guidelines) |
| Output Type | Solid-State Discrete |
| Operating Voltage | Standard Industrial DC / AC Control Voltage Loop |
| Connection Type | Cable Lead / Hardwired Terminals / M12 Connector |
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| IP Protection Class | IP67 (dust-tight, splash/immersion resistant) |
Application Scenarios & The “Trench” Experience
It is 2 AM on a Tuesday during a heavy production shift. A critical packaging conveyor drops out because an unbranded proximity switch lost its sensing face calibration due to washdown moisture ingress. The line stops, costing $1,200 per minute in lost throughput. Swapping in a robust, sealed Schneider unit gets the line cleared and back in motion before management starts demanding incident reports.
- Packaging & Conveyance – Carton position verification – Replaces failing mechanical levers with non-contact sensing.
- Food & Beverage Processing – Bottle cap and container indexing – IP67 moisture sealing prevents liquid damage during washdown cycles.
- Metal Stamping & Fabrication – Metal sheet feed detection – High noise immunity prevents false trips from nearby high-current motor starters.
- Automotive Assembly – Carrier chassis sensing – Fast response time allows reliable tracking on high-speed transfer lines.

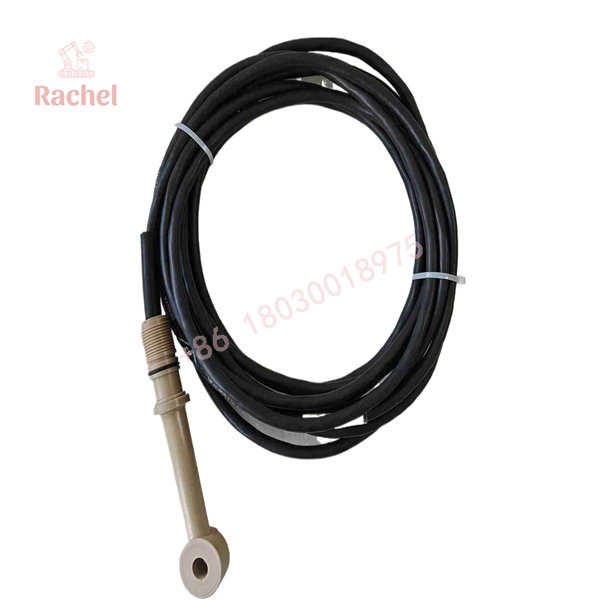

871EC-SP0

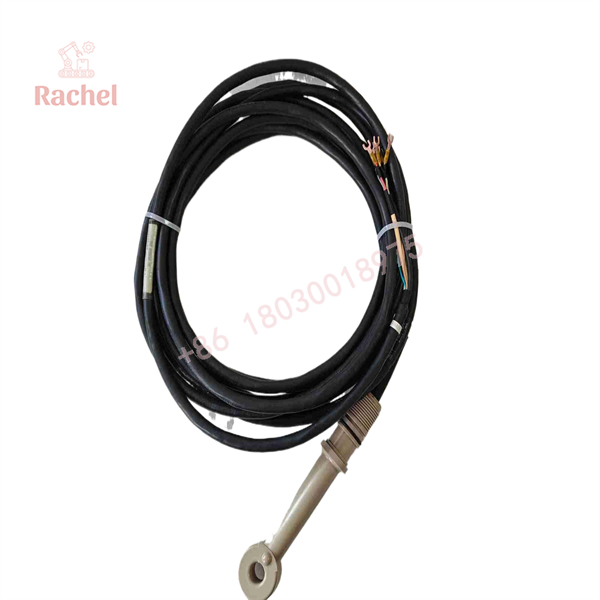

871EC-SP0
Transparency SOP: Quality Assurance & Testing
We do not just ship boxes; we test them on actual Schneider-compatible bench equipment:
- Inbound Inspection: Physical check for housing damage, thread stripping, wire insulation wear, and OEM serial/label validation.
- Electrical Parameter Check: Insulation resistance testing to verify internal potting integrity and guard against short circuits.
- Live Rig Handshake: Power-on testing under rated voltage to verify LED status indicators and output signal state transitions.
- Target Sensing Verification: Actuation testing using calibrated target materials at specified sensing distances.
- ESD-Safe Packaging: Cleaned, dried, and sealed in anti-static, shock-absorbing packaging ready for immediate field deployment.
The Veteran’s Tech Trap Guide
- ⚠️ Check Your Wiring Polarities: Connecting a 3-wire DC sensor with reversed polarity can permanently destroy internal switching transistors if power is applied without an inline load. Double-check the wire color codes (Brown = +, Blue = -, Black = Signal) against the circuit diagram before turning the breaker on.
- ❗ Watch Out for Metal Filings: If deployed near grinding or machining operations, metallic dust builds up on the sensor face, causing the switch to lock in the ON state. Mount the sensor with a slight downward angle or install a protective plastic shield.
- ⚠️ Torque Settings Matter: Do not over-torque the mounting nuts on the threaded barrel. Squeezing the barrel too hard warps the internal potting material and permanently damages the sensing coil assembly inside.
- ❗ Cable Strain Relief: If installing on a moving arm or slide, always secure the cable with a drip loop and strain relief block. Continuous flexing at the cable entry point leads to internal wire breaks that cause intermittent, hard-to-diagnose faults.
Frequently Asked Questions (FAQ)
Q: Is the Schneider 871EC-SP0 drop-in compatible with standard 18mm cutout brackets?
A: Yes. It fits standard industrial 18mm barrel mounting hardware and replaces standard cylindrical proximity sensors with matching electrical outputs.
Q: Can I hot-swap this sensor while the PLC input rack is powered?
A: To be honest, we strongly advise against hot-swapping field wiring on active control loops. Disconnect field power to the circuit branch first to avoid shorting terminal leads or tripping upstream breakers.
Q: What is the warranty coverage on this unit?
A: All our surplus and tested equipment comes with a 12-month full replacement warranty from the date of purchase.
Q: Is this a genuine Schneider Electric part or a third-party clone?
A: This is 100% original OEM equipment sourced through verified plant liquidations, surplus inventory buybacks, and factory store excess. We do not sell cheap knockoffs.
Q: Why is your pricing lower than buying direct from the manufacturer distributor?
A: We source unused factory surplus and tested equipment from canceled projects and plant upgrades. You get original OEM reliability without paying current list prices or waiting through 12-week factory lead times.
