Description
Product Introduction & Engineering Value
The 140ACI04000 is a 16-channel analog current-input module for legacy Modicon Quantum installations. Its main value is channel density: sixteen differential process-current inputs occupy one standard Quantum I/O module position. The module supports several current ranges and provides dedicated channel diagnostics, including broken-wire detection for 4–20 mA circuits.
This is an important spare for plants still operating Quantum racks. Schneider Electric has discontinued the reference, so an exact-match replacement is increasingly an inventory-management issue rather than a routine catalog purchase. Schneider currently identifies BMXAMI0810 as the recommended replacement, but it belongs to the Modicon X80 family and should not be treated as a direct physical drop-in.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 140ACI04000 |
| Manufacturer | Schneider Electric |
| Platform | Modicon Quantum Automation Platform |
| Module Type | Multirange Analog Input |
| Number of Inputs | 16 |
| Input Configuration | Differential |
| 4–20 mA Resolution | 0–16,000 counts |
| 0–20 mA Resolution | 0–20,000 counts |
| 0–25 mA Resolution | 0–25,000 counts |
| Additional 4–20 mA Resolution | 0–4,095 counts |
| Absolute Maximum Input | 30 mA |
| Input Impedance | 250 Ω |
| Absolute Accuracy Error | ±0.125% of full scale |
| Common-Mode Rejection | >90 dB at 60 Hz |
| Channel-to-Bus Isolation | 1780 VAC for 60 seconds |
| Update Time | 15 ms, 2-wire / 4-wire |
| Filter | Single-pole low-pass, 3 dB at 34 Hz ±25% |
| Bus Current Requirement | 360 mA |
| Power Dissipation | 5 W |
| Module Format | Standard |
| Net Weight | Approximately 0.3 kg |
These specifications are taken from Schneider Electric’s product documentation. The module requires 17 input words, provides individual green channel-status LEDs and red channel-fault LEDs, and supports broken-wire detection on 4–20 mA inputs.
Signal Range Matters
The 140ACI04000 is more flexible than a module restricted to a single 4–20 mA range:
- 4–20 mA
- 0–20 mA
- 0–25 mA
That flexibility is useful when maintaining mixed instrumentation in an older Quantum installation. However, the PLC application must still be configured for the intended range. A hardware module accepting a signal does not automatically mean the existing application will scale it correctly.
140ACI04000

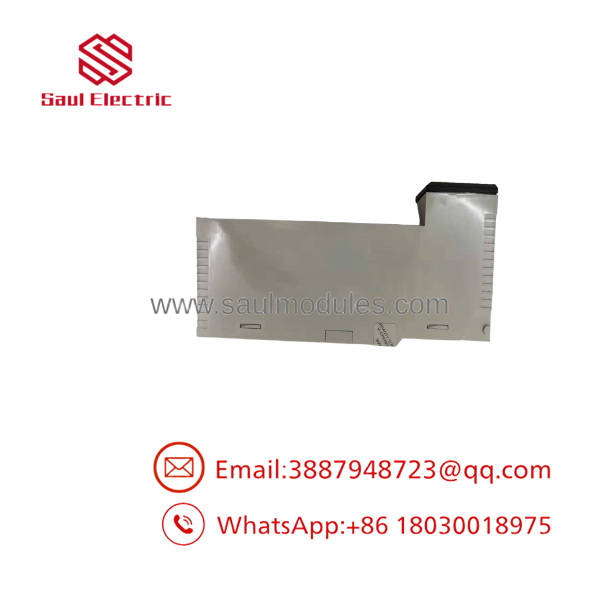

140ACI04000
Field Application & the “Trench” Experience
A maintenance technician receives a complaint that several process values have suddenly become unreliable. The transmitters themselves check out. Loop current is stable. The problem appears only after the values enter the Quantum rack.
With a 140ACI04000, the fastest diagnostic route is usually to separate the field loop from the I/O channel. A calibrated current source can be connected to the suspect input and stepped through known values. If the PLC value tracks the simulated current correctly, attention moves back toward the field wiring or transmitter. If the simulated signal produces an incorrect value, the I/O channel becomes a much stronger suspect.
That distinction can save a maintenance team from replacing sixteen transmitters when the actual problem is one I/O module.
Specific application scenarios
- Boiler feedwater instrumentation: multiple 4–20 mA flow, pressure, and differential-pressure transmitters.
- Chemical process skid monitoring: high-density current-loop acquisition from flow, pressure, and level instruments.
- Cooling-water systems: 4–20 mA temperature, pressure, and flow transmitters distributed across a Quantum-controlled process.
- Legacy process-control panels: mixed 0–20 mA and 4–20 mA instruments where a multirange input module reduces module count.
Transparency SOP: QA & Testing
For New Surplus or refurbished 140ACI04000 inventory, a power-on test is not enough. This is a 16-channel analog module.
Recommended acceptance sequence
1. Identity check
Confirm:
140ACI04000
Verify the catalog number directly from the module label rather than relying on a warehouse database description.
2. Physical inspection
Inspect the backplane connector, terminal interface, LEDs, housing, and PCB for:
- Corrosion
- Bent contacts
- Heat damage
- Contamination
- Previous repair
- Damaged components
- Altered labels
3. 4–20 mA simulation
Apply calibrated current to representative channels:
4 mA → 12 mA → 20 mA
Verify the PLC’s raw input values and engineering-unit scaling.
4. Additional range testing
If the application uses other ranges, test the appropriate configuration:
0–20 mA
or
0–25 mA
Do not assume that a successful 4–20 mA test proves every supported range is functioning correctly.
5. Channel diagnostics
Where the test environment permits, verify channel-status and fault indication, including broken-wire detection for 4–20 mA loops.
6. PLC integration
Confirm module recognition, input addressing, channel mapping, scaling, and diagnostic status.
For a surplus spare, retain the test report with the module’s serial/identification information and revision data.
The Veteran’s Tech Trap Guide
⚠️ PRO TIP — Sixteen channels means sixteen opportunities for wiring errors.
The inputs are differential. Do not assume the field wiring is interchangeable with a single-ended analog module. Verify the Quantum wiring diagram before moving conductors.
⚠️ Do not confuse 140ACI04000 with 140ACI03000.
Both are Quantum analog-input modules, but their channel counts and electrical characteristics differ. The 140ACI04000 provides 16 inputs, whereas the 140ACI03000 is an 8-input module.
⚠️ Do not treat the recommended replacement as a drop-in.
Schneider identifies BMXAMI0810 as the replacement for 140ACI04000, but BMXAMI0810 is a Modicon X80 module with eight inputs and different platform architecture. A migration requires checking rack, wiring, addressing, configuration, and application requirements.
PRO TIP: For a running Quantum system, keep at least one tested 140ACI04000 spare if the process cannot tolerate extended I/O downtime. The module is already past its commercial lifecycle, so availability is a procurement risk.
Dynamic FAQ
What is Schneider Electric 140ACI04000?
It is a 16-channel differential multirange analog-input module for the Modicon Quantum Automation Platform. It is primarily used for analog current signals such as 4–20 mA process transmitters.
What input ranges does 140ACI04000 support?
The documented current ranges are 4–20 mA, 0–20 mA, and 0–25 mA.
How many channels does it have?
The module provides 16 differential analog inputs.
What is the update time?
The specified update time is 15 ms for 2-wire and 4-wire configurations.
Is 140ACI04000 discontinued?
Yes. Schneider Electric’s U.S. product page states that commercialization ended December 31, 2022, with end-of-service scheduled for December 31, 2030. Schneider’s Canadian site shows a later regional discontinuation date, August 8, 2025, so lifecycle dates can vary by market.
What is the recommended replacement?
Schneider Electric identifies BMXAMI0810 as the recommended replacement. However, BMXAMI0810 is an 8-input Modicon X80 analog isolated high-level input module, so migration engineering is required rather than a simple module swap.
Can 140ACI04000 still be purchased as New Surplus?
Legacy inventory is still available through industrial surplus channels, but availability is increasingly dependent on existing stock. For procurement, request the actual-unit photograph, exact part-number marking, revision/date code, test evidence, condition statement, and written warranty before purchasing.
