Schneider AS-B883-001 High-Speed Counter Module

Description

Product Introduction & Engineering Value

The AS-B883-001 was designed for applications where conventional PLC scan-based counting is too slow or unpredictable. Its two counters can operate independently or jointly, supporting bidirectional counting, unidirectional up counting, pulse inputs, and quadrature encoder applications. The module also provides programmable outputs for match or control functions.

This is a specialized module, not a conventional digital I/O card. The 50 kHz maximum count frequency, counter mode, encoder wiring, preset/reset behavior, and programmable output configuration all need to match the existing application. The module is also listed as discontinued, making verified legacy spares particularly relevant for plants maintaining Modicon 800 equipment.

Technical Specifications

The original Modicon documentation describes the B883-001 as a microprocessor-based high-speed counter that operates independently of the PLC. It supports pulse or quadrature encoder input modes, counts up to 9,999,999, and provides programmable output functions.

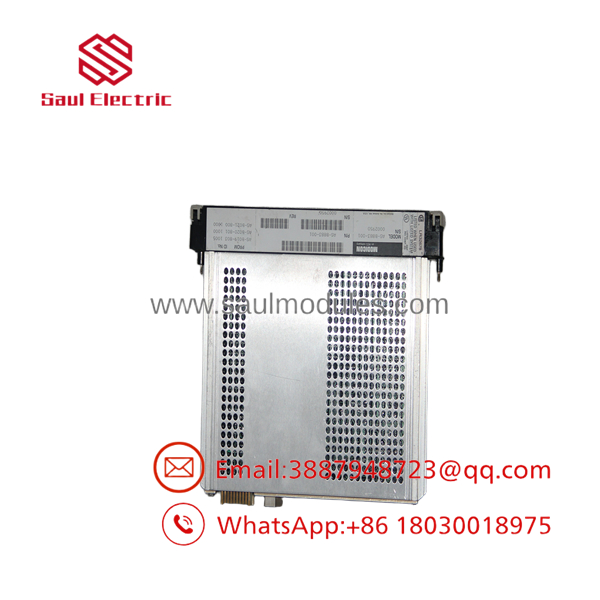

AS-B883-001

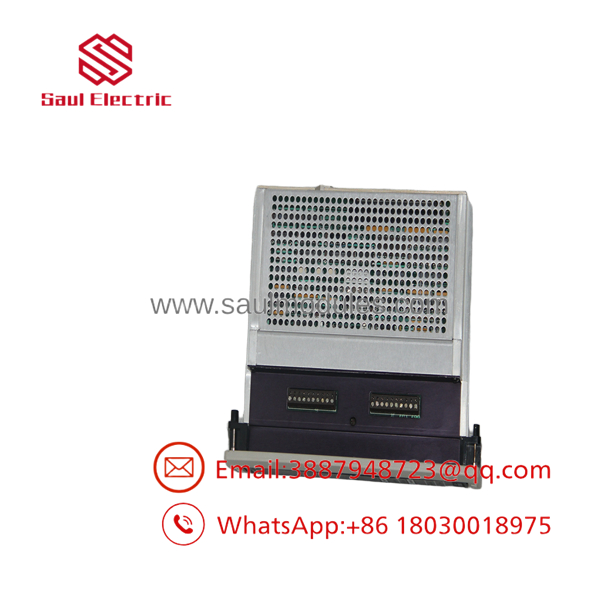

AS-B883-001

Field Application & the “Trench” Experience

A legacy material-handling machine uses an encoder on a rotating shaft. The PLC needs both the accumulated count and the direction of rotation. After years of service, the AS-B883-001 develops an intermittent counting problem.

The maintenance team first checks the encoder and finds clean A/B pulse signals. The next temptation is to replace the encoder.

Instead, they isolate the problem by feeding a known pulse source into the counter module. One channel counts correctly at low frequency but becomes unreliable as the test frequency increases. That points the investigation toward the high-speed counter path rather than the mechanical encoder.

This is exactly why a proper replacement test should include actual pulse counting, not just a power-up test.

Specific application scenarios:

• Rotary shaft measurement: high-speed speed and position counting.
• Quadrature encoder feedback: monitoring direction and accumulated movement.
• Cut-to-length machinery: counting encoder pulses to determine material position.
• Packaging equipment: high-speed product or registration pulse counting.
• Material handling: conveyor position and travel-distance measurement.

Transparency SOP: QA & Testing

For New Surplus or refurbished AS-B883-001 inventory, the testing process should focus on the counter circuitry and configurable I/O.

1. Verify identification — Confirm AS-B883-001 / ASB883001 on the physical label.
2. Inspect the module — Check housing, terminal connector, contacts, switches, indicators, and signs of corrosion.
3. Install in a compatible Modicon 800 test system — Verify normal module startup.
4. Test Counter 1 — Apply a controlled pulse train and verify accumulation.
5. Test Counter 2 — Repeat the process independently.
6. Test direction — Where applicable, use a suitable quadrature signal source to verify up/down operation.
7. Test frequency response — Exercise the module at representative frequencies, including a high-frequency test where the equipment supports it.
8. Test auxiliary inputs — Verify the six auxiliary input channels.
9. Test programmable outputs — Confirm appropriate output response under controlled configuration.
10. Record results — Document test frequency, signal voltage, counter mode, channels tested, and stock condition.

The distinction between “counts pulses” and “verified at 50 kHz” matters. A low-frequency bench test does not establish maximum-frequency performance.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t treat the AS- like a standard counter input card.

Its two counters have their own microprocessor-based processing and operate independently of the PLC. Replacing it with conventional digital inputs can completely change the timing behavior of the application.

⚠️ Trap #2 — Check the encoder mode before wiring a replacement.

The module supports both bidirectional up/down counting and unidirectional up counting, as well as pulse and quadrature encoder modes. The wiring and configuration must match the application’s selected mode.

PRO TIP: Photograph the existing terminal wiring before removing the module. With a legacy high-speed counter, the auxiliary inputs and programmable outputs are just as important as the primary counter connections.

⚠️ Trap #3 — Don’t assume 24 VDC signals are equivalent to 5 VDC signals.

The module supports multiple voltage ranges, with different thresholds for 5 VDC, 12 VDC, and 24 VDC operation. A sensor that works correctly at one signal level should not be assumed to behave identically at another.

⚠️ Trap #4 — Verify the counter preset and output behavior.

The module supports programmable outputs and hardware/software reset and enable functions. A replacement that counts correctly but has different preset, reset, or output configuration can still produce incorrect machine behavior.

Dynamic FAQ

Q: What is the Schneider AS-?
A: It is a Modicon 800-Series High-Speed Counter Module with two counters, six auxiliary inputs, and three programmable outputs.

Q: What is the maximum counting frequency?
A: The published maximum is 50 kHz.

Q: Can the AS- handle quadrature encoders?
A: Yes. The original documentation identifies pulse or quadrature encoder input modes, along with bidirectional up/down and unidirectional up-counting functions.

Q: How many counters are included?
A: There are two counters, which can operate separately or jointly depending on the control application.

Q: How many auxiliary inputs and outputs are available?
A: The module provides six auxiliary inputs and three programmable outputs.

Q: Is the AS- discontinued?
A: Yes. Multiple current legacy-parts databases identify it as discontinued by the manufacturer.

Q: What should I verify before ordering a replacement?
A: Confirm the complete AS- number, counter mode, encoder type, signal voltage, auxiliary-input usage, programmable-output assignments, and existing Modicon 800 rack configuration. For a high-speed application, also verify the required maximum pulse frequency.

Q: How should New Surplus AS- stock be authenticated?
A: Check the physical catalog label, terminal connector, housing, and revision markings, then request a functional test using controlled pulse signals. For critical applications, ask whether the module was tested only at low frequency or at a representative high-speed operating point. The supplier should clearly state whether the unit is New Surplus, Never Used, Used, or Refurbished, and provide written warranty and return terms.
