Description
Product Introduction
The Schneider Electric Modicon 140CRA93100 is a single-cable Remote I/O (RIO) drop adapter module built for the Modicon Quantum PLC platform. Installed in the leftmost slot (Slot 1) of a expansion backplane, it manages communication between the main Quantum processor rack and field-located expansion I/O racks across high-speed coaxial cabling.
Operating at a deterministic 1.544 Mbit/s signaling rate, the 140CRA93100 scans all digital and analog I/O modules residing on its local drop chassis and packages the field data for transmission back to the master RIO head module (such as a 140CRP93100 or CPU-integrated RIO port).
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | Remote I/O (RIO) Drop Adapter Module |
| Part Number | 140CRA93100 |
| Manufacturer | Schneider Electric / Modicon |
| Platform Compatibility | Modicon Quantum Automation Series Remote Racks |
| Network Interface | 1x Coaxial Port (Single F-Connector, 75 Ohm) |
| Cable Type | Standard 75-Ohm Coaxial (RG-6 or RG-11) |
| Transmission Rate | 1.544 Mbit/s (S3908 RIO protocol) |
| Address Range | Drop Addresses 1 through 31 (Set via rotary DIP switches) |
| Bus Current Requirement | ~600 mA max at 5.1V DC (from backplane) |
| Diagnostic LEDs | Active, Ready, Fault, Comm Error |
Application Scenarios & Field Experience
The 140CRA93100 is widely used in geographically dispersed process environments where I/O racks must be located close to field instrumentation rather than centralized in a main control room.
- Water Treatment Basin Racks: Interfacing remote filter beds and valve manifold racks back to a central CPU over long coaxial runs.
- Material Handling & Conveyor Lines: Distributed control drops spread across long warehouse logistics corridors.
- Mining & Crusher Skids: Placing robust Quantum I/O enclosures in remote electrical rooms exposed to high noise environments.
- Paper & Pulp Processing: Connecting operator console junction boxes and remote drive cabinets back to the head PLC rack.
Field Case Study: A municipal pumping station experienced intermittent “Drop Offline” faults on Remote Drop #4 during heavy rainstorms. Troubleshooting revealed severe corrosion on the F-connector terminal of the original 140CRA93100 adapter due to moisture ingress. Swapping the damaged unit with a bench-tested surplus 140CRA93100 and re-terminating the RG-6 coax restored stable 1.544 Mbit/s communications without dropping a single packet.

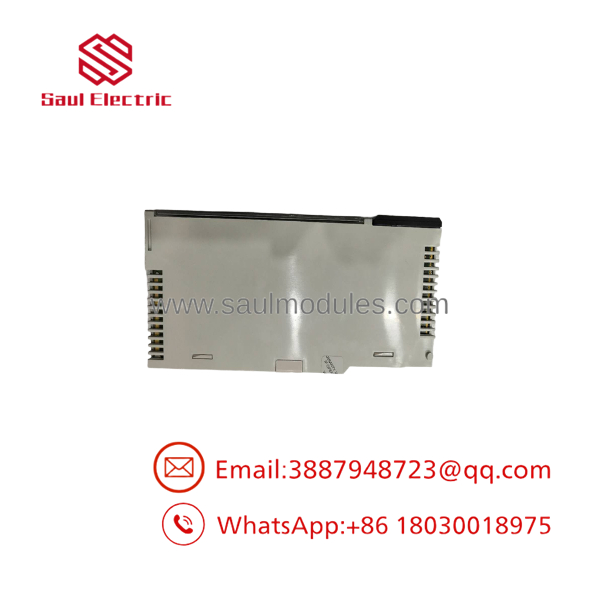

140CRA93100

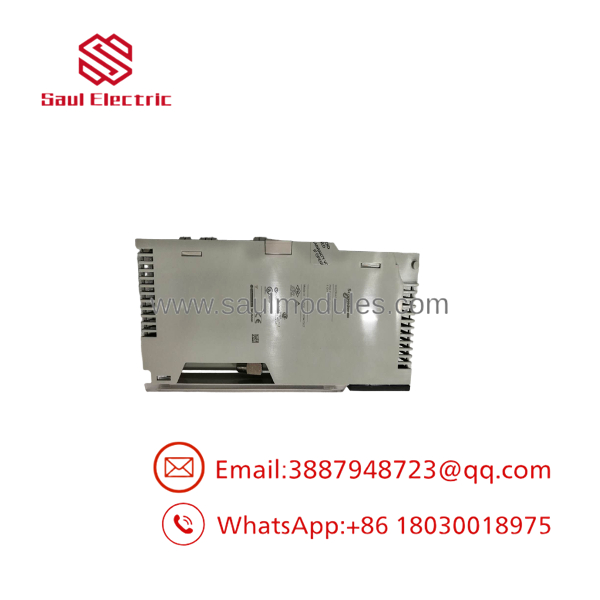

140CRA93100
Quality Assurance & Testing Procedure
Every surplus 140CRA93100 module undergoes a complete live-network protocol test prior to dispatch:
- Visual & Structural Audit: Inspecting backplane pins, casing latches, and the integrity of the 75-Ohm coaxial F-connector threads.
- Backplane Handshake & Power-On Diagnostics: Seated in Slot 1 of a Quantum test chassis to verify 5.1V power consumption and initial internal diagnostic pass.
- Live RIO Network Stress Test: Connected to a master 140CRP93100 head card over an RG-6 coax link to verify stable data exchange across all 16 slots of the drop chassis.
- Rotary Switch Verification: Testing rotary drop address switches (SW1/SW2) across multiple addresses (1–31) to ensure valid node identification by the main CPU.
- ESD-Safe Packaging: Cleaned, static-shielded, and packaged in custom protective foam cradles.
Technical Field Tips & Traps
- ⚠️ Single Cable vs. Dual Cable Redundancy: The 140CRA93100 is a single-cable drop module. If your system requires dual-cable redundant RIO highways to survive a cable cut, you must use the 140CRA93200 dual-port module instead.
- ❗ Set Drop Address Switches Before Power-Up: The rotary switches on the front panel set the unique drop address (Drop 1 to 31). The drop adapter reads these switch positions only during boot-up. Changing switches while powered will not take effect until power to the drop rack is cycled.
- ⚠️ Check Coax Cable Termination (75-Ohm): Ensure 75-Ohm line terminators are properly installed at the physical ends of the coaxial trunk. Missing or loose terminators cause signal reflections that lead to random CRC errors and dropping network nodes.
- ❗ Slot Position Requirement: The 140CRA93100 must be placed in Slot 1 (or designated head slot) of the remote Quantum rack to manage backplane arbitration for the remaining I/O cards.
Frequently Asked Questions
Q: What is the maximum distance supported by the 140CRA93100 coaxial link?
A: Using standard RG-6 coaxial cable, a single segment supports up to 1,500 feet (450 meters). With RG-11 cable or trunk repeaters/fiber optics, distances can extend up to 10,000+ feet.
Q: What cable connector type is required?
A: It utilizes a standard female 75-Ohm F-type coaxial connector (screw-on or crimp-on industrial F-connector).
Q: Can I mix 140CRA93100 and 140CRA93200 modules on the same PLC system?
A: Yes, provided the master RIO head module and software configuration support the respective drop cable topologies.
Q: Does this module require programming in Concept or Unity Pro?
A: No software programming is required inside the card itself. You simply configure the drop address and I/O mapping in the central CPU project (Concept, ProWORX, or Unity Pro/EcoStruxure) and set the physical rotary address switches on the 140CRA93100 to match.
