Schneider AS-BADU-204 Analog Input Module

Description

Product Introduction and Engineering Value

The Schneider Electric AS-BADU-204 is a legacy Modicon Compact analog input module used to acquire low-level voltage signals and temperature measurements from compatible sensors. Its documented applications include PT100 resistance temperature detectors and voltage inputs within a ±0.5 V range. The module supports measurement functions that older PLC installations may depend on for process monitoring and temperature control.

For maintenance engineers, the critical issue is matching the sensor type and measurement configuration. Replacing this module with a more recent analog input card may require changes to signal scaling, channel configuration, wiring, and PLC application logic.

Technical Specifications

The published compatibility information identifies the AS-BADU-204 as a four-channel, ±0.5 V, PT100-capable module. Its isolation and measurement characteristics differ from those of other AS-BADU models, so specifications from the AS-BADU-205 or AS-BADU-214 should not be applied indiscriminately.

Technical limitation: The exact terminal assignments, RTD wiring modes, conversion timing, temperature range, and accuracy limits have not been independently verified for every hardware revision. Consult the matching manual before using these values for engineering calculations or commissioning.

Field Applications and Practical Maintenance

Consider a legacy industrial temperature-control cabinet where a Modicon A120 PLC monitors bearing temperatures and process-fluid temperatures. During a scheduled shutdown, one temperature channel begins returning readings that disagree with a calibrated reference instrument.

The maintenance engineer checks the PT100 sensor, cable resistance, terminal connections, and input-channel configuration before condemning the module. If the AS-BADU-204 is identified as the failed component, the replacement is checked against the original part number and hardware documentation. After installation, the affected channels are tested against known input values before the process is returned to automatic control.

This is an illustrative maintenance scenario, not a documented incident involving a specific AS-BADU-204 installation.

Other application scenarios include:

• Process temperature monitoring: Acquiring PT100 sensor signals in legacy process-control cabinets.
• Low-level voltage measurement: Monitoring compatible sensor signals within the documented ±0.5 V range.
• Industrial equipment retrofits: Maintaining existing A120-based installations where replacing the complete PLC platform would require substantial rewiring and application changes.

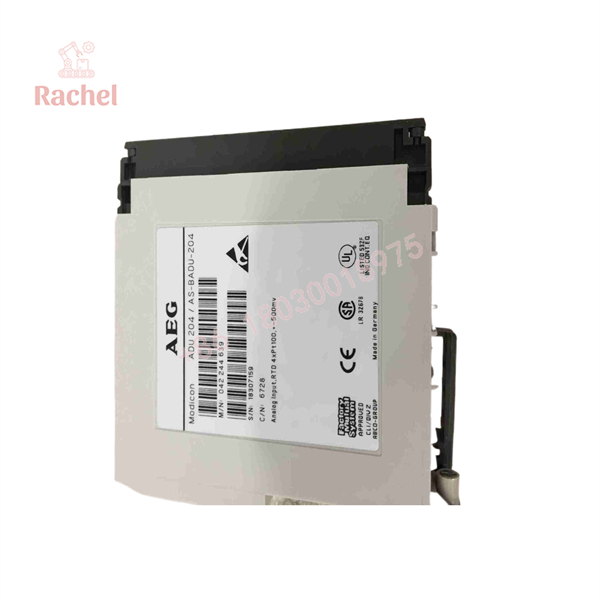

AS-BADU-204

AS-BADU-204

Quality Assurance and Testing

For new-surplus or refurbished AS-BADU-204 inventory, request evidence that the actual module has been inspected and functionally tested.

1. Verify the identity: Check the complete model designation, manufacturer label, hardware revision, and available traceability records.
2. Inspect the hardware: Examine the PCB, connectors, and terminal interfaces for corrosion, damaged contacts, heat discoloration, and signs of unauthorized repair.
3. Test the input channels: Use calibrated signal sources and appropriate RTD simulation equipment to check supported measurement modes.
4. Check measurement accuracy: Compare readings against known input values within the documented operating range. Record deviations rather than relying on a simple power-up check.
5. Document the results: Request the test report, condition classification, repair history if applicable, and written warranty terms.

A module that powers up is not necessarily accurate. For temperature measurement, an incorrect reading can affect alarms, interlocks, and process-control decisions even when the PLC reports no hardware fault.

Replacement Pitfalls: What to Check Before Power-Up

1. Confusing the AS- with another analog input module

The AS-, AS-BADU-205, and AS-BADU-214 have different measurement capabilities. A physically compatible replacement is not necessarily electrically or functionally equivalent. Verify the full model number and supported input configuration.

2. Overlooking RTD wiring and sensor configuration

PT100 measurements depend on the supported wiring arrangement and correct sensor configuration. Check the applicable wiring diagram, lead compensation requirements, and PLC scaling before comparing readings with a reference instrument.

3. Assuming a replacement has identical measurement performance

Input range, resolution, accuracy, and isolation can differ between module variants. Do not transfer the specifications of a newer Compact or M340 module to the AS- without checking the official compatibility documentation.

Frequently Asked Questions

Q1. What is the Schneider Electric AS- used for?

It is a legacy Modicon Compact analog input module used for compatible voltage measurements and temperature sensing. Confirm the exact measurement mode required by the installed application.

Q2. Does the AS- support sensors?

Yes. Historical Modicon documentation identifies as a supported sensor type. The exact wiring arrangement and temperature measurement limits should be verified in the applicable hardware manual.

Q3. What voltage range does the module support?

The documented voltage measurement range is ±0.5 VDC. Do not apply a higher input voltage unless the applicable technical documentation explicitly permits it.

Q4. Can the AS- be replaced with an M340 analog input module?

Not as a direct drop-in replacement. Schneider Electric compatibility documentation lists M340 alternatives, but it also identifies differences in measurement ranges and isolation characteristics. A conversion may require a suitable wiring adapter, revised channel configuration, and changes to PLC logic.

CKM Content

Q5. Is new-surplus stock available?

Industrial spare-parts resellers list the AS-, but actual inventory and condition vary. Request confirmation of the specific unit, its hardware revision, and whether it has been functionally tested before ordering.

Q6. How should authenticity and warranty be verified?

Request actual-unit photographs, readable nameplate details, available traceability documentation, and a functional-test report. Obtain the warranty period and return conditions in writing. A reseller’s warranty should not be represented as a Schneider Electric factory warranty unless the manufacturer explicitly provides it.
