Description
Product Introduction
The Schneider Electric Modicon 140CHS11000 is a Hot Standby Module designed to provide CPU redundancy for mission-critical application control within the Modicon Quantum PLC platform. Installed adjacent to the CPU in both Primary and Standby Quantum racks, it maintains real-time synchronization of state variables, timer/counter data, and I/O images across an optical link.
In the event of a primary CPU fault, power interruption, or backplane crash, the 140CHS11000 executes a bumpless transfer, handing over total execution to the secondary standby CPU without dropping outputs or interrupting continuous process loops.
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | Hot Standby / Redundancy Processor Module |
| Part Number | 140CHS11000 |
| Manufacturer | Schneider Electric / Modicon |
| Platform Compatibility | Modicon Quantum Automation Series (e.g., CPU 113 02, CPU 434 12A, CPU 534 14B) |
| Sync Interface | Fiber Optic Link (ST Connectors) |
| Transfer Time | Single scan cycle (typically 10 ms to 30 ms depending on program size) |
| Max Sync Distance | Up to 1 km (3,280 ft) using standard multi-mode fiber |
| Bus Current Requirement | 750 mA max (from backplane) |
| Status LEDs | Primary, Standby, Offline, Sync Link Active, Error |
Application Scenarios & Field Experience
The 140CHS11000 is installed where unplanned control system downtime causes massive production losses or severe safety risks.
- Oil & Gas Offshore Platforms: Maintaining continuous safety ESD (Emergency Shutdown) and fire/gas monitoring systems.
- Continuous Chemical Synthesis: Preventing runaway exothermic reactions by ensuring dual-CPU redundancy on cooling and pressure loops.
- Municipal Water / Wastewater Treatment: Guaranteeing unbroken operation of main influent pumps and chlorination dosing systems.
- Power Generation Facilities: Managing steam turbine bypass and boiler master controls without risk of nuisance trips during hardware maintenance.
Field Case Study: A municipal water district experienced a sudden power supply failure on their primary Quantum PLC rack during an intense storm. Because the system was configured with dual 140CHS11000 Hot Standby modules over fiber, the backup rack seamlessly assumed control in under 15 milliseconds. Main lift pumps continued running without a single valve position alteration or flow disruption.

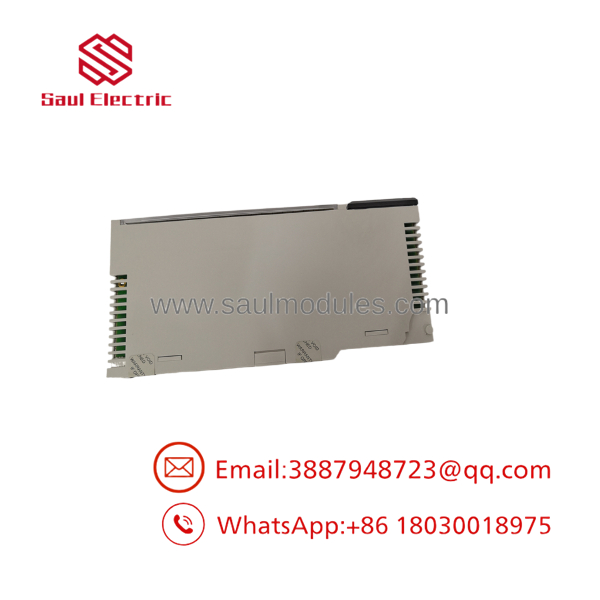

140CHS11000

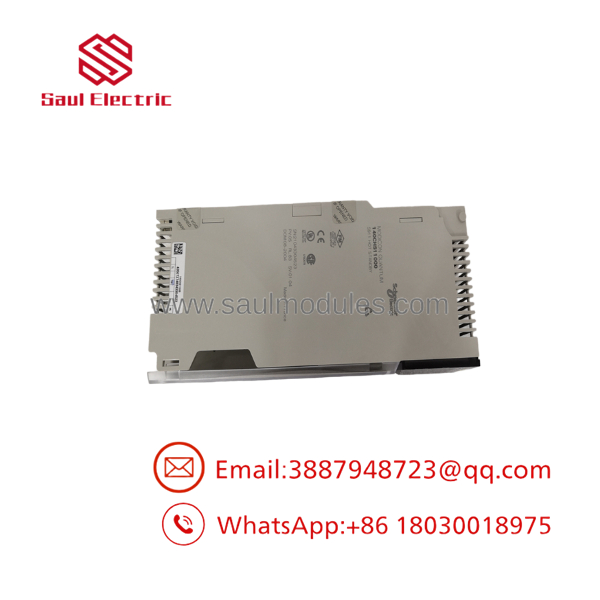

140CHS11000

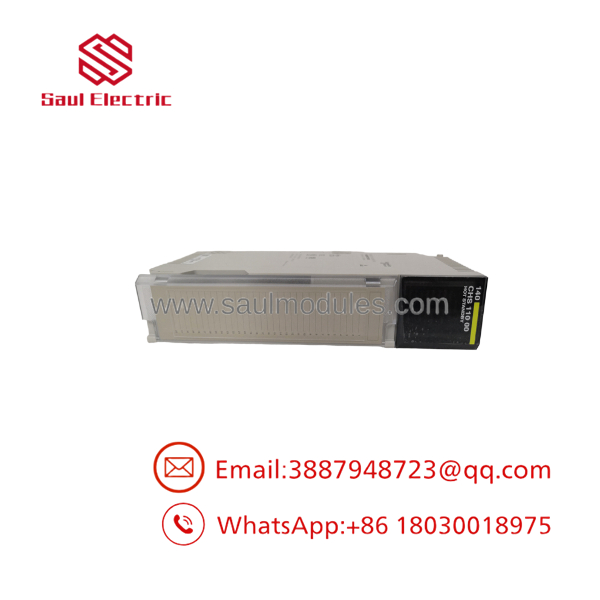

140CHS11000
Quality Assurance & Testing Procedure
Every surplus 140CHS11000 module undergoes a complete dual-rack live testing protocol before dispatch:
- Visual & Structural Audit: Checking PCB traces for heat discoloration, inspecting backplane pins, housing latches, and ST fiber ports.
- Dual-Rack Live Sync Test: Slotted into two adjacent Quantum chassis running Unity Pro / Concept. We force primary CPU faults to verify real-time memory mirroring and sub-scan failover execution.
- Optical Transceiver Power Test: Measuring light transmit power (in dBm) across the ST fiber ports to ensure full attenuation headroom across long fiber runs.
- Thermal Stress Burn-In: Continuous operation under heavy memory transfer loads inside a thermal chamber to catch heat-induced logic faults.
- Cleanroom Handling & ESD Packaging: Optical ports capped, anti-static sealed, and custom-cradled for safe transit.
Technical Field Tips & Traps
- ⚠️ Match Firmware Across Both Racks: Both the primary and standby Quantum CPUs, as well as their respective 140CHS11000 modules, must run identical firmware versions. Mismatched firmware prevents memory sync and leaves the backup rack stuck in “Offline” mode.
- ❗ Keep Fiber Connectors Clean: Microscopic dust inside the ST fiber ports drops optical signal strength, leading to intermittent “Sync Lost” alarms or preventing the backup CPU from going into “Ready Standby” state.
- ⚠️ Identical Remote I/O Configurations: Ensure both Quantum racks have matching Rio/Nio network drop layouts. The 140CHS11000 handles CPU state sync, but downstream field I/O communication cards must be configured identically on both racks to complete the redundant loop.
- ❗ Key Switch Position: Confirm the front panel key switch on the 140CHS11000 or CPU is set correctly to allow automatic role negotiation (Primary/Standby) rather than forcing a manual lock.
Frequently Asked Questions
Q: What fiber optic cable type is used with the 140CHS11000? A: It utilizes standard multi-mode fiber optic cabling (62.5/125 µm or 50/125 µm) terminated with bayonet ST-style connectors.
Q: Can I replace a failed 140CHS11000 module while the primary PLC is running? A: Yes, Quantum racks support Hot Swapping (RIUP). However, redundancy will be temporarily disabled until the replacement module is seated, connected via fiber, and completes its state memory download.
Q: Does the 140CHS11000 require external power? A: No, it draws its operating power (750 mA) directly from the Quantum backplane power supply module.
Q: What programming software is used to configure Hot Standby with this card? A: It is configured through Schneider Modicon programming environments, including Concept and Unity Pro / EcoStruxure Control Expert.
