Schneider Modicon 140CPU65150 Quantum Unity Processor Module

Description

Product Introduction

The Schneider Electric Modicon Quantum 140CPU65150 is a high-performance, single-slot central processing unit designed for demanding process automation and discrete control systems. Powered by a 266 MHz RISC processor and running on the Unity Pro (now EcoStruxure Control Expert) programming environment, it executes complex control algorithms, continuous PID loops, and high-speed data handling across large-scale Quantum I/O architectures.

Featuring an embedded Ethernet TCP/IP port alongside dedicated Modbus and Modbus Plus channels, the 140CPU65150 eliminates the need for separate network coprocessor cards in many applications. Its substantial 3072 KB internal memory capacity and fast instruction processing make it an optimal upgrade path from legacy Modsoft or Concept-based CPUs, providing modern networking capabilities while retaining existing Quantum rack hardware.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story: It is 3:00 AM on a holiday weekend at a large chemical processing plant. The main reactor controller experiences a total CPU hardware crash caused by an internal memory corruption fault on an older generation processor. The plant is facing raw material degradation in reactor vessels valued at over $80,000 if agitation and thermal interlocks remain offline for more than an hour. Having a pre-tested 140CPU65150 replacement ready in emergency storage allows the automation engineer to swap the processor card, restore the Unity project file via the convenient front-panel USB port in minutes, and bring the reactor back under automated temperature control before batch solidification occurs.

Application Scenarios:

• Chemical & Petrochemical Processing: Executing multi-variable batch reaction sequences, safety interlocks, and continuous PID control loops.
• Power Generation Facilities: Managing turbine auxiliaries, boiler feed systems, and balance-of-plant (BOP) automation networks.
• Large Water & Wastewater Systems: Central SCADA integration and field remote I/O control over built-in Ethernet TCP/IP topologies.
• Mining & Materials Handling: Coordinating high-speed overland conveyor systems, crushers, and automated stacker-reclaimers.

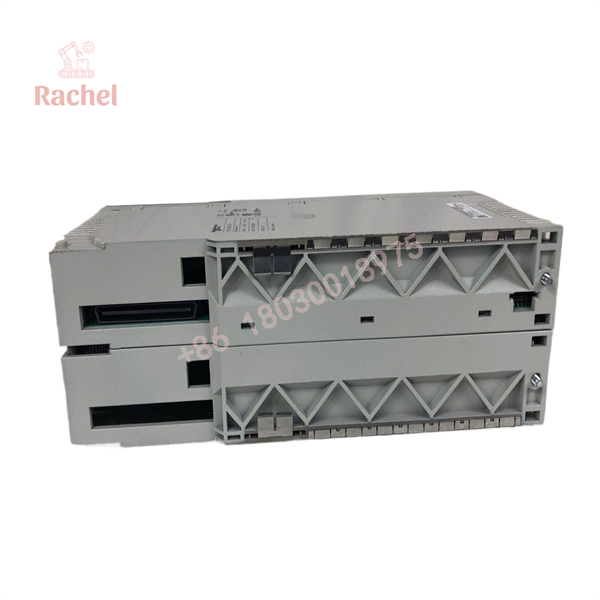

140CPU65150

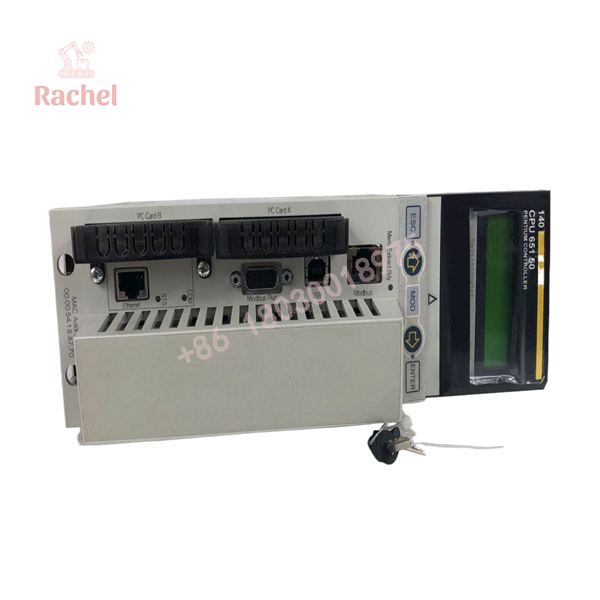

140CPU65150

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual Modicon Quantum backplanes. Every 140CPU65150 processor undergoes a strict 5-step validation procedure before being added to inventory:

1. Inbound Physical Inspection: Comprehensive verification of backplane connector pins, PCMCIA slot condition, front panel USB and RJ45 Ethernet ports, housing latches, and OEM labels.
2. Firmware & OS Health Check: Verifying or upgrading Unity OS firmware to ensure seamless compatibility with standard EcoStruxure Control Expert versions.
3. Communication Port Validation: Individual loopback and live packet transmission tests across the USB port, Ethernet TCP/IP port, serial Modbus port, and Modbus Plus connection under active data traffic.
4. Heavy Backplane Scan Stress Test: Mounting the CPU in a fully populated Quantum rack and running a 100% memory-load test execution project for a minimum of 4 hours to verify system stability and thermal performance.
5. ESD Clearance & Safe Packaging: Thoroughly cleaned, treated against static buildup, sealed in static-shielding bags, and foam-packed to withstand industrial transport.

The Veteran’s Tech Trap Guide

⚠️ Verify firmware compatibility before plugging into the network! The 140CPU65150 runs specific Unity Pro / EcoStruxure OS firmware versions. If your engineering workstation project was compiled for a different OS version than the target CPU firmware, the download will be rejected. Always match your CPU OS build using the Unity Loader utility before attempting to transfer your project.

❗ Check the IP address Rotary Switches on the back of the module. The 140CPU65150 uses two physical rotary switches on its rear casing to establish the lower octet of its default IP address or set the boot method (e.g., Stored IP, BOOTP, DHCP). Forgetting to transfer the switch positions from the old card to the new card will result in an inaccessible Ethernet port upon power-up.

⚠️ Mind the battery state before cycling power. This card uses a 140XCP60000 lithium battery to maintain RAM memory and Real-Time Clock settings when backplane power is disconnected. If the “BAT” LED is lit solid red on the front panel, replace the battery while the rack is powered to avoid losing the running program in RAM.

❗ Do not use the front USB port for permanent SCADA connections. The front-panel USB port is designed strictly for temporary engineering access, project downloads, and commissioning diagnostics. Using it as a continuous runtime connection can lead to physical connector strain or unexpected serial driver dropouts. Use the dedicated RJ45 Ethernet port for permanent HMI/SCADA communications.

Frequently Asked Questions

Q: Can I hot-swap the 140CPU65150 CPU module while the Quantum rack is powered?

A: No. Removing or inserting the main CPU card while the backplane bus is energized can cause unexpected control states, lock up backplane communications, or corrupt RAM data. Always isolate power to the rack before replacing the processor.

Q: What programming software is required for the 140CPU65150?

A: The 140CPU65150 is designed exclusively for Schneider Electric’s Unity Pro software platform (Unity Pro v2.0 or higher, up to current EcoStruxure Control Expert releases). It does not support legacy Concept, Modsoft, or ProWORX software.

Q: What is the main difference between the 140CPU65150 and the 140CPU65160?

A: The primary differences lie in processing speed, memory capacity, and network capabilities. The 140CPU65160 offers higher SRAM memory (up to 4096 KB), faster clock speeds, and enhanced performance capabilities for extra-large applications compared to the 140CPU65150.

Q: Does the 140CPU65150 support redundant Hot-Standby (HSBY) architectures?

A: No. The 140CPU65150 is a standalone processor. For high-availability redundant architectures, you must use designated Quantum Hot-Standby processor models such as the 140CPU67160.

Q: What warranty coverage comes with these surplus or refurbished CPUs?

A: Every unit comes backed by our comprehensive 12-month operational warranty. All processors undergo rigorous bench-testing of backplane logic execution, Ethernet connectivity, and RAM retention prior to shipment.
