Product Introduction
The Schneider Electric Modicon 140CPU43412A is a flagship single-slot processor built for demanding industrial applications within the Modicon Quantum PLC platform. Driven by a 32-bit 80486-class microprocessor with a built-in math coprocessor, it handles dense control algorithms, rapid scan times, and continuous high-speed floating-point calculations with ease.
Equipped with 2 MB of total internal RAM, the 140CPU43412A comfortably handles large user program logic, extensive register storage, and high-density local or distributed Remote I/O (RIO/DIO) networks. It features dual Modbus Plus ports and dual Modbus RS-232 serial ports, offering robust, multi-path communication for SCADA integration, HMI connections, and peer-to-peer PLC networking.
Key Technical Specifications
| Parameter | Specification Details |
| Module Type | Central Processing Unit (CPU) |
| Part Number | 140CPU43412A |
| Manufacturer | Schneider Electric / Modicon |
| Platform Compatibility | Modicon Quantum Automation Series Backplanes |
| Processor Type | 80486 (32-Bit, 66 MHz class) with Math Coprocessor |
| User Memory | 2 MB RAM (Battery-backed) |
| Execution Speed | 0.1 µs to 0.3 µs per 1k Boolean instructions |
| Communication Ports | 2x Modbus Plus (DB9), 2x Modbus RS-232 (RJ45/DB9) |
| Max Network/Drop Capacity | Supports up to 31 Remote I/O drops / 64 Distributed I/O drops |
| Bus Current Requirement | ~1.25 A max at 5.1V DC (from backplane) |
| Backup Battery | 3.6V Lithium Cell (behind front access door) |
Application Scenarios & Field Experience
The 140CPU43412A is deployed in continuous process environments, large manufacturing lines, and infrastructure control systems where high scan rates and large memory footprints are essential.
- Power Generation & Turbine Control: Running complex PID loops, burner management, and high-speed trip sequences.
- Chemical Batching Plants: Managing extensive recipe management files in its 2 MB memory while coordinating multi-tank valve sequences.
- Large-Scale Water Treatment Works: Controlling primary pump stations, chemical dosing skids, and communicating across regional Modbus Plus networks.
- Automotive Assembly & Material Handling: Executing fast discrete logic over high-density Remote I/O loops across large plant floors.
Field Case Study: A paper mill experienced severe scan-time latency and intermittent communications on their main reel winder system using an older Quantum CPU. Upgrading to a surplus 140CPU43412A cut logic scan times from 42 ms down to 11 ms, stabilizing winder tension controls and preventing web breaks.

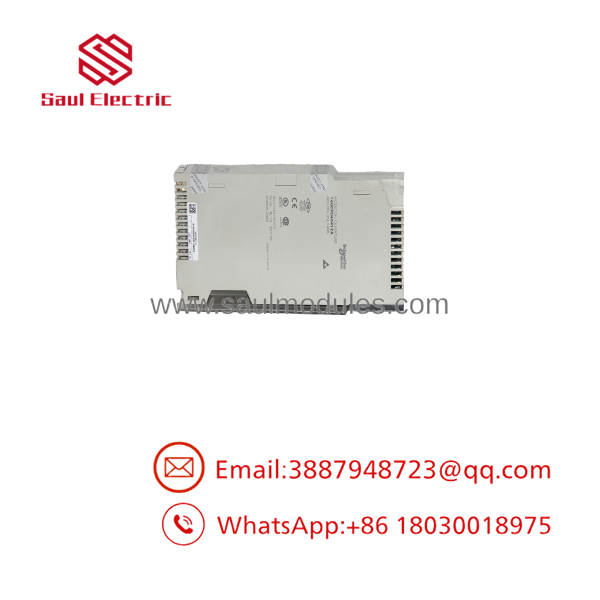

140CPU43412A

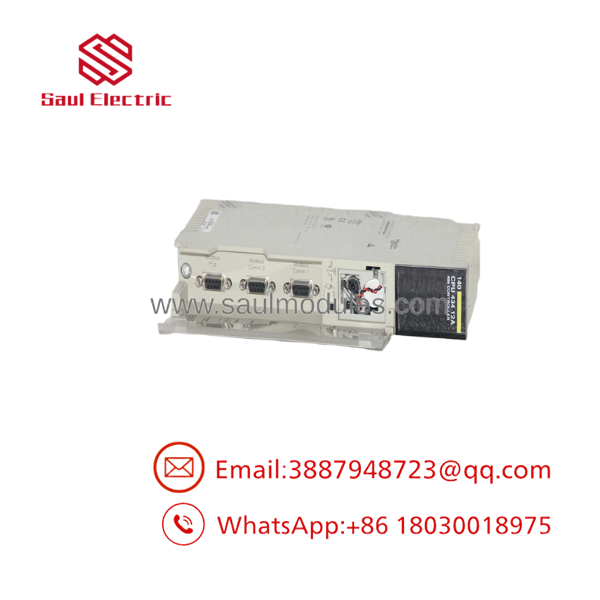

140CPU43412A

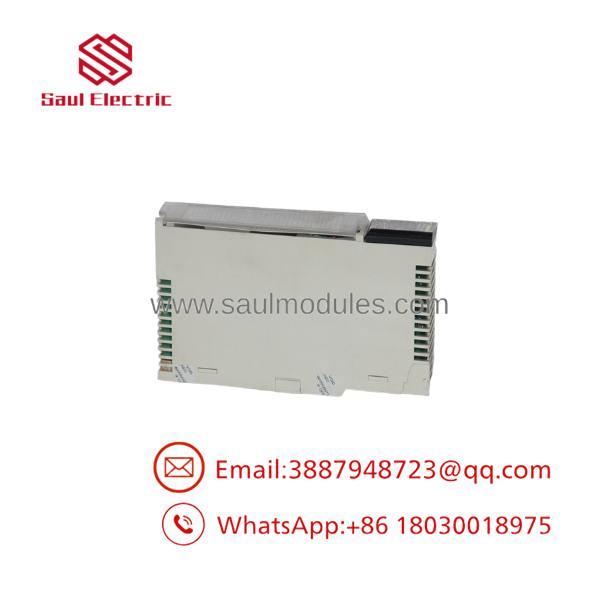

140CPU43412A
Quality Assurance & Testing Procedure
Every surplus 140CPU43412A processor undergoes a rigorous live-rack testing protocol before dispatch:
- Visual & Structural Audit: Inspecting backplane pins, latching mechanisms, faceplate labels, housing vents, and battery contacts.
- Backplane Handshake & Power-On Diagnostics: Seated in a Quantum test rack to confirm 5.1V power consumption, internal self-test routines, and status LED health.
- Logic & Memory Stress Test: Programmed using Unity Pro / Concept to run heavy floating-point loops and maximum memory allocations to verify full 2 MB RAM health.
- Multi-Port Communication Verification: Concurrent data transfer testing across both Modbus Plus ports and both RS-232 serial ports under heavy communication loads.
- ESD-Safe Packaging: Installed with a fresh 3.6V lithium backup battery, static-shielded, and packaged in custom protective foam.
Technical Field Tips & Traps
- ⚠️ Replace the 3.6V Lithium Battery Before Deployment: User memory and system registers rely on the front-panel 3.6V lithium battery. If power is removed without a healthy battery installed, the CPU program will be permanently wiped. Replace the battery every 1–2 years as preventive maintenance.
- ❗ Verify Modbus Plus Node Switch Settings: Node addresses for the two Modbus Plus ports are set via DIP switches behind the front door. Ensure these addresses are correctly set before attaching network cables to avoid IP/node conflicts.
- ⚠️ Check Executive Firmware Compatibility: The 140CPU43412A supports different executive firmware versions depending on whether you configure it via Concept, ProWORX 32, or Unity Pro (EcoStruxure). Ensure the installed CPU firmware matches your engineering software level.
- ❗ Mind the Power Budget: The 140CPU43412A draws significantly more backplane current (~1.25A) than entry-level CPUs (like the 113 series at ~0.78A). Always verify your rack’s power supply (e.g., 140CPS11420 or 140CPS21400) has enough overhead to power the full rack load.
Frequently Asked Questions
Q: Can I upgrade from a 140CPU11303 to a 140CPU43412A?
A: Yes. The 140CPU43412A fits into the same standard Quantum single-slot space. You will need to update the CPU type in your programming software hardware configuration and re-download the project.
Q: Does the 140CPU43412A support Hot Standby (Redundancy)?
A: Yes, when paired with a Hot Standby module (such as the 140CHS11000) and loaded with the appropriate Hot Standby executive firmware, it can function in a dual-redundant PLC architecture.
Q: What programming cables are required to connect directly to the CPU?
A: You can connect via RS-232 using a Modicon programming adapter cable (RJ45-to-DB9), or via Modbus Plus using an appropriate PC interface card/converter (e.g., Modbus Plus PCI/USB adapter).
Q: Is this CPU supported in Unity Pro / EcoStruxure Control Expert?
A: Yes, provided the CPU is flashed with Unity-compatible executive firmware (typically version 2.0 or higher).
