Schneider Telemecanique ATV58HD12N4 11kW 15HP VFD

Description

Product Introduction

The Telemecanique ATV58HD12N4 (Schneider Electric) is a heavy-duty, 11 kW (15 HP) Altivar 58 variable frequency drive engineered for high-torque industrial applications operating on 380V to 480V three-phase power supply networks. Built with a rugged internal power stage and an integrated high-efficiency heat sink, the ATV58HD12N4 provides dependable speed control, controlled acceleration/deceleration profiles, and extensive motor thermal protection across harsh factory floors.

Unlike lighter-duty commercial drives that suffer thermal trips under sustained starting loads, the ATV58HD12N4 features sensorless flux vector control algorithms that deliver high low-end torque without needing external encoder feedback. Its modular architecture accepts optional fieldbus communication cards (Modbus, Profibus DP, FIPIO) and I/O expansion cassettes, making it an essential replacement drive for maintaining legacy conveyor lines, extruders, and heavy pumping infrastructure.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When an 11 kW drive trips on overcurrent during the middle of a continuous production batch, your entire throughput halts. In our field experience, a plastics extrusion line blew its main barrel feed drive at 2 AM due to an aged DC bus capacitor bank on the original inverter. The plant manager was facing thousands of dollars per hour in cold-scrap losses. Replacing the unit with a bench-tested ATV58HD12N4, transferring the existing option cassette and terminal block, and power-cycling the line cleared the fault and had resin flowing before the night shift ended.

• Extruders & Mixers – High Low-End Torque – Utilizes sensorless vector control to start high-viscosity materials from a dead stop without stalling.
• Overhead Cranes & Hoists – Controlled Torque & Braking – Integrates dynamic braking resistors for smooth vertical positioning and controlled deceleration.
• Pumps & Industrial Fans – Variable Torque Energy Savings – Replaces line-started motors with tailored speed curves to cut energy consumption and mechanical hammer.
• Material Handling Conveyors – Multi-Speed Controlled Transport – Ingests digital inputs or fieldbus commands for fast acceleration ramps and smooth stopping profiles.

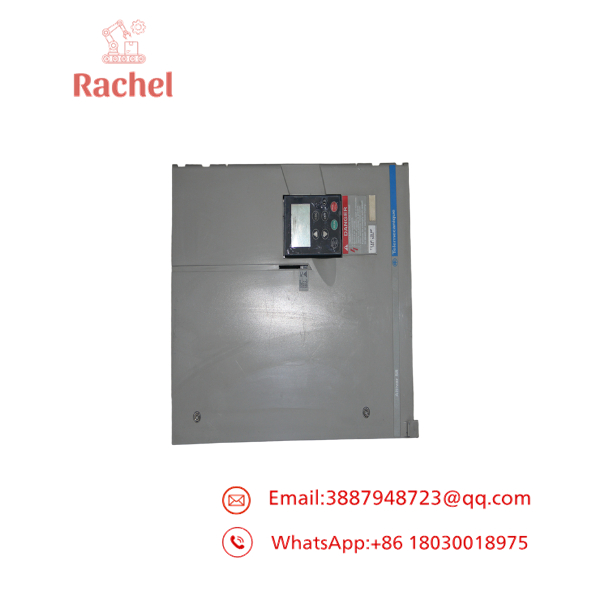

ATV58HD12N4

Transparency SOP: Quality Assurance & Testing

We don’t just ship vintage drive boxes out the door; every ATV58HD12N4 undergoes rigorous dynamic bench verification before shipping:

1. Inbound Visual & Mechanical Inspection: Inspection of the main power chassis, IGBT module connections, cooling fan bearings, and DC bus capacitor seals under magnification.
2. DC Bus & Power Stage Check: Static diode and IGBT bridge testing using digital meters to ensure no internal short circuits exist between DC+, DC-, and output phases (U, V, W).
3. Live Power-On & High-Voltage Test: Energizing the drive with 460V 3-phase input to monitor DC bus pre-charge circuits, internal power supplies, and cooling fan activation.
4. Dynamometer / Motor Load Testing: Connecting the ATV58HD12N4 to a three-phase test motor, cycling through ramp rates, running under load, and verifying output current balance across all phases.
5. Final Parameter Reset & Anti-Static Packaging: Clearing legacy fault logs, restoring factory defaults, and sealing the unit in heavy ESD shielding packaging with protective corner foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Save Your Option Cassette! The ATV58HD12N4 relies on removable option cassettes (e.g., VW3A58101 or fieldbus communications) inserted into the front slot. Always unclip and move your existing application cassette to the replacement drive, or the control terminals won’t match your PLC wiring.

❗ DC Bus Capacitor Age Warning: If this drive has been sitting on a cold warehouse shelf for more than two years without power, do NOT apply full 480V instantly. Use a variable AC transformer (Variac) to reform the aluminum electrolytic capacitors slowly over a 2-to-4-hour ramp period to prevent catastrophic capacitor failure.

⚠️ Check Your Motor Insulation Rating: High switching frequencies on 480V lines cause voltage spikes (dV/dt) at the motor terminals over long cable runs (>50 meters). Make sure you install dV/dt filters or load reactors if your motor isn’t inverter-duty rated to prevent stator insulation breakdown.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Telemecanique ATV58HD12N4 still manufactured by Schneider Electric?

A: No. The Altivar 58 series has been officially discontinued by Schneider Electric. We supply fully tested, high-quality new surplus and reconditioned units to keep existing machines running without requiring a full control cabinet redesign.

Q: Can I hot-swap the keypad or control terminals while the drive is powered?

A: No. Disconnecting control wiring or option cards while the 480V power supply is live can arc the control bus pins and destroy the main CPU processing board. Always isolate incoming 3-phase power first.

Q: What is the direct modern replacement if I want to upgrade from an ATV58HD12N4?

A: Schneider’s current equivalent line is the Altivar Process ATV630 or ATV930 series. However, upgrading requires physical mounting panel modifications, rewiring, and reprogrammed control parameters.

Q: Do I need to program the parameters from scratch when installing a replacement ATV58?

A: If you transfer your original parameter programming keypad (VW3A58103) or option cassette from the failed drive to the replacement unit, you can download the saved parameter configuration directly into the replacement drive in minutes.

Q: What warranty comes with this surplus ATV58HD12N4 drive?

A: Every ATV58HD12N4 shipped comes with a standard 12-month functional warranty. If the drive experiences any hardware failure under standard operating conditions within one year, we offer a direct replacement or a full refund.
