Description
Product Introduction & Engineering Value
Analog I/O failures are rarely simple card swaps. A replacement module must match channel configuration, scaling parameters, wiring method, and application logic. The Schneider Electric TSXDMF342A provides mixed analog input and output capability for Modicon Premium PLC systems used in industrial control applications.
For plants maintaining legacy Premium platforms, keeping a tested TSXDMF342A spare can avoid unnecessary control system migration. The engineering focus is compatibility: matching the module to the existing rack, application program, field transmitters, and commissioning documentation.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | TSXDMF342A |
| Platform | Modicon Premium |
| Module Type | Mixed analog input/output module |
| Analog Inputs | 4 channels |
| Analog Outputs | 2 channels |
| Input Signals | Voltage/current analog signals |
| Output Signals | Voltage/current analog signals |
| Resolution | Application dependent |
| Conversion Type | Analog-to-digital / digital-to-analog conversion |
| Installation | Premium PLC rack backplane |
| Programming Environment | PL7 / Unity Pro depending on system generation |
| Application Class | Process monitoring and control |
Schneider Modicon Premium analog modules include voltage/current measurement capability and are designed for integration into Premium PLC rack architectures.
Field Application & The “Trench” Experience
A wastewater treatment facility running an older Modicon Premium PLC began receiving unstable flow transmitter readings on a chemical dosing system. Operators noticed incorrect process values, but PLC diagnostics did not immediately identify the source.
The maintenance team compared transmitter output measurements against the PLC engineering values and traced the issue to the analog interface module. A replacement TSXDMF342A was installed after verifying channel assignments, input scaling, and Unity Pro configuration. The process values returned to normal without replacing the controller platform.
Typical application scenarios include:
- Chemical Dosing Control Loops — accepting 4–20 mA transmitter signals and controlling analog actuators
- Water Treatment Instrumentation — monitoring pH, flow, pressure, and level signals
- Machine Process Control — managing analog speed references and feedback signals

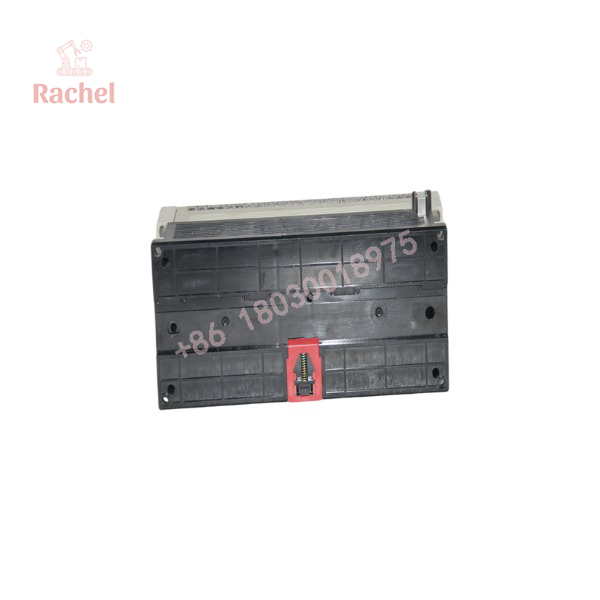

TSXDMF342A

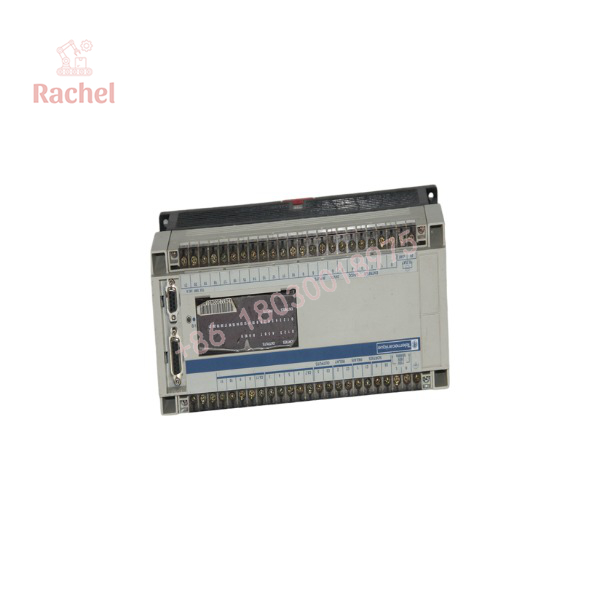

TSXDMF342A
Transparency SOP: QA & Testing
For TSXDMF342A new surplus and refurbished inventory, the inspection process should include:
Inspection Checklist
- Confirm Schneider Electric identification label.
- Verify complete TSXDMF342A part number.
- Inspect rack connector and housing condition.
- Check PCB components for contamination or damage.
- Verify analog channel terminals.
- Perform continuity and electrical checks.
- Test analog input/output response with compatible equipment when available.
- Record inspection results and warranty status.
A refurbished analog module should be evaluated electrically, not only visually. Aging components can create signal drift even when the module appears clean.
The Veteran’s Tech Trap Guide
⚠️ Do not install the module before confirming scaling parameters.
Analog modules depend heavily on software configuration. A correct hardware replacement with incorrect input ranges can create false process values.
⚠️ Check field signal type before connection.
A 4–20 mA transmitter, 0–10 V signal, and other analog standards require correct configuration. Misconfigured channels can damage accuracy or produce misleading readings.
PRO TIP: Record the original channel configuration before removing the module. Include input range, engineering units, filtering, and alarm limits.
⚠️ Watch for rack compatibility issues.
The TSXDMF342A belongs to the Modicon Premium family. It should be matched with the correct Premium rack, processor generation, and programming environment.
Dynamic FAQ
Q1: What is the Schneider TSXDMF342A used for?
The TSXDMF342A is a Modicon Premium analog I/O module used for industrial measurement and control applications.
Q2: How many channels does the TSXDMF342A provide?
The module provides mixed analog input and output channels for connecting process instruments and analog control devices.
Q3: Can TSXDMF342A replace another Modicon analog module?
Not automatically. Channel count, signal range, wiring configuration, and software settings must match the original installation.
Q4: Which PLC platforms support TSXDMF342A?
The module is designed for Schneider Electric Modicon Premium PLC systems. Compatibility should be confirmed with the installed processor and programming software version.
Q5: How are refurbished TSXDMF342A modules tested?
Testing should include visual inspection, connector checks, analog signal verification, and functional testing using compatible PLC hardware where available.
Q6: Is new surplus Schneider TSXDMF342A available?
Availability depends on remaining Modicon Premium lifecycle inventory. Buyers should verify authenticity, hardware condition, revision details, and warranty coverage before purchase.
