Product Introduction & Engineering Value
The 140ACI03000 is a legacy Modicon Quantum analog-input module designed for eight differential process signals. It accepts both 1–5 V and 4–20 mA inputs, making it suitable for common transmitter and instrumentation interfaces used in process-control systems. Its documented resolution is 12 bits, with a 15 Hz ±20% single-pole low-pass filter.
This module is particularly relevant when maintaining an installed Quantum rack where replacing the complete control platform is not immediately practical. Schneider Electric has discontinued the reference, so procurement should focus on exact part-number verification and remaining qualified inventory rather than assuming ongoing OEM production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 140ACI03000 |
| Manufacturer | Schneider Electric |
| Platform | Modicon Quantum Automation Platform |
| Module Type | Analog Input |
| Number of Inputs | 8 |
| Input Configuration | Differential |
| Voltage Range | 1–5 V |
| Current Range | 4–20 mA |
| Resolution | 12 bits |
| Current Input Impedance | 250 Ω ±0.01% |
| Voltage Input Impedance | >20 MΩ |
| Maximum Input | 50 VDC / 25 mA |
| Filter | Single-pole low-pass, 3 dB at 15 Hz ±20% |
| Channel-to-Bus Isolation | 1000 VDC |
| Channel-to-Channel Isolation | 30 VDC |
| Update Time | 5 ms |
| Bus Current | 240 mA |
| Power Dissipation | 2 W |
| Module Format | Standard |
| Net Weight | Approximately 0.3 kg |
These values come from Schneider Electric’s product data sheet. The same documentation specifies a ±0.04% full-scale linearity error, common-mode rejection greater than 72 dB at 60 Hz, and channel/bus isolation of 1000 VDC.
Signal compatibility
The two primary measurement modes are:
4–20 mA: typical for pressure, flow, level, and other process transmitters.
1–5 V: commonly encountered with voltage-output instrumentation and signal conditioners.
Schneider Electric also provides a specific wiring reference for using a 3-wire instrument with the 140ACI03000, confirming that this module can be integrated with externally powered three-wire field devices under the documented wiring arrangement.

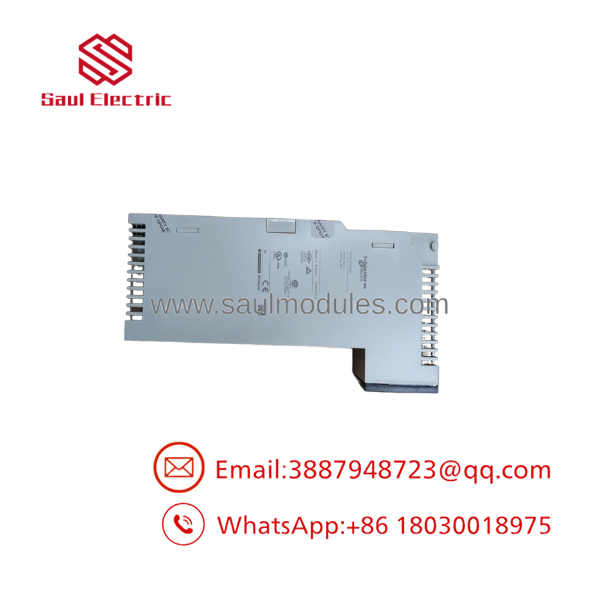

140ACI03000

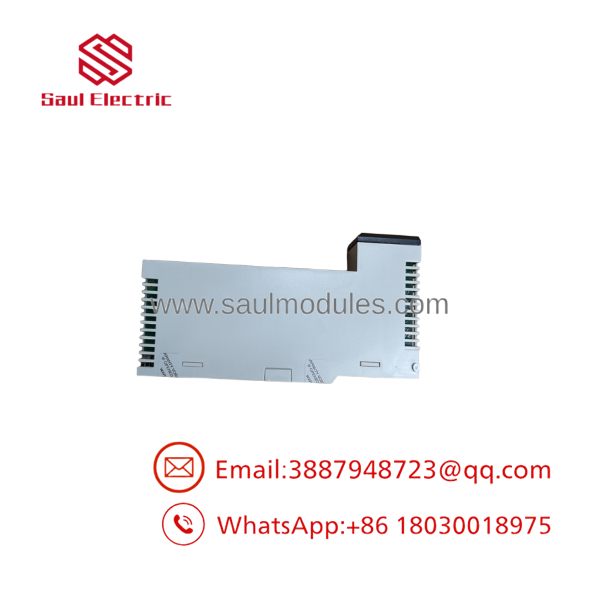

140ACI03000
Field Application & the “Trench” Experience
A process plant has an aging Quantum rack monitoring eight pressure and flow transmitters. One channel begins drifting. The transmitter checks correctly at the field junction box, and the 4–20 mA loop current is stable.
The maintenance team initially suspects the transmitter.
A calibrated current source connected directly to the I/O channel tells a different story: the channel’s reported value does not track the simulated current correctly.
That is the practical value of having a spare 140ACI03000 available. The engineer can isolate the field instrument from the PLC input circuitry rather than replacing expensive transmitters based on a guess.
Specific application scenarios
- Boiler feedwater flow measurement: 4–20 mA flow transmitters connected to differential analog inputs.
- Process pressure monitoring: multiple 4–20 mA pressure transmitters distributed across a Quantum-controlled process unit.
- Tank level measurement: 4–20 mA or 1–5 V level instruments connected to an existing Quantum rack.
- Signal-conditioned instrumentation: 1–5 V outputs from external conditioners or isolation devices.
Transparency SOP: QA & Testing
For New Surplus or refurbished 140ACI03000 inventory, I would use a calibrated analog-signal test rather than a simple power-up inspection.
1. Part-number verification
Confirm the label reads:
140ACI03000
Also verify that the module belongs to the Modicon Quantum family.
2. Physical inspection
Check:
- Quantum backplane connector
- Terminal connections
- PCB condition
- LEDs
- Evidence of corrosion
- Burn marks
- Damaged components
- Previous repair work
- Nameplate and revision markings
3. Current-input test
Apply calibrated current signals to representative channels:
4 mA → mid-scale → 20 mA
Verify that the PLC registers the expected values.
4. Voltage-input test
Where the application uses voltage inputs, test:
1 V → mid-scale → 5 V
Do not assume a current-input test alone proves the voltage-input circuitry is acceptable.
5. Channel verification
Exercise all eight inputs where practical. A module with seven functioning channels is not a satisfactory eight-channel spare.
6. PLC integration
Install the module in an appropriate Quantum test rack and verify:
- Module recognition
- Input addressing
- Channel status
- Analog scaling
- Fault indications
- Input response time
The official data sheet specifies 9 input words for addressing and a 5 ms update time.
The Veteran’s Tech Trap Guide
⚠️ PRO TIP — Do not confuse 140ACI03000 with 140ACI04000.
Both belong to the Quantum analog-input family, but they are different modules. Verify the exact catalog number before ordering.
⚠️ Do not assume “multirange” means universal input.
The 140ACI03000 is documented for 1–5 V and 4–20 mA. It is not the same thing as a universal analog module supporting arbitrary RTD, thermocouple, voltage, and current configurations.
⚠️ Check the input wiring before changing modules.
The inputs are differential, and Schneider provides specific wiring guidance for three-wire instruments. A replacement should preserve the existing signal-reference arrangement unless the engineering documentation calls for a change.
PRO TIP: Keep a known-good 4–20 mA signal source in the maintenance test kit. It lets you separate a transmitter problem from a Quantum analog-input problem without disturbing the field instrument.
Dynamic FAQ
What is Schneider Electric 140ACI03000?
It is an 8-channel differential analog-input module for the Modicon Quantum Automation Platform, supporting 1–5 V and 4–20 mA signals.
What is the resolution of 140ACI03000?
The Schneider Electric datasheet specifies 12-bit analog resolution.
Does 140ACI03000 support 4–20 mA?
Yes. The documented linear measuring ranges are 4–20 mA and 1–5 V.
How many channels does it have?
It provides 8 differential analog-input channels.
Is 140ACI03000 discontinued?
Yes. Schneider Electric’s U.S. product page identifies the reference as discontinued, while the end-of-service date is listed as December 31, 2030. Schneider also specifies BMXAMI0810 as the recommended replacement. Dates vary by regional Schneider Electric site, so the local lifecycle status should be checked when planning a migration.
Is BMXAMI0810 a direct drop-in replacement?
Do not treat it as a mechanical drop-in replacement. Schneider identifies BMXAMI0810 as the recommended replacement, but it belongs to the Modicon X80 platform rather than the Quantum platform. Migration therefore requires checking rack architecture, wiring, addressing, configuration, and application compatibility.
Can I still buy 140ACI03000 as New Surplus?
Yes. Current industrial suppliers list both new surplus and refurbished inventory. For example, MRO Electric currently lists both conditions, while DO Supply identifies new-surplus inventory as available. These are supplier inventory conditions, not evidence of current OEM production.
