SEW 822675X.13.17 MDF Option Card

Description

Product Introduction & Engineering Value

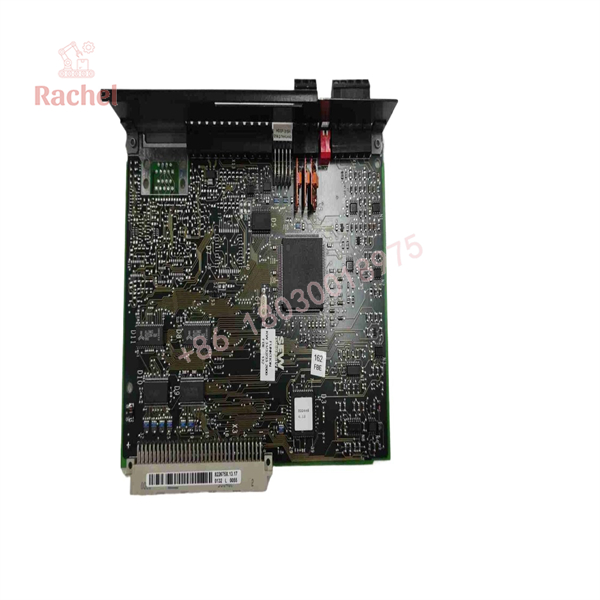

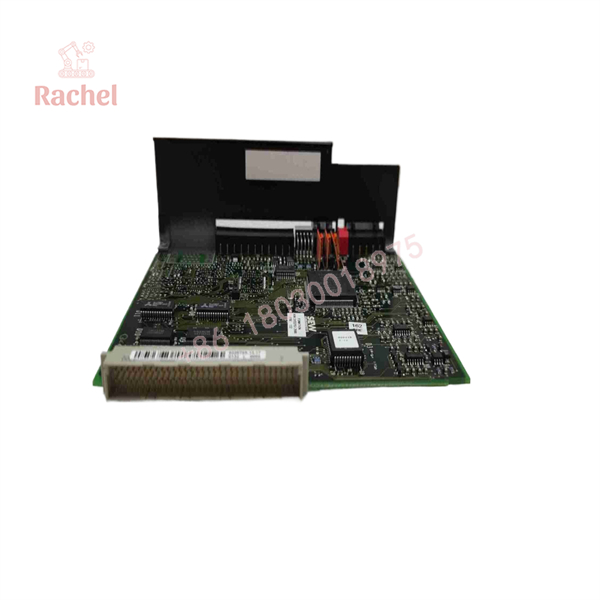

The SEW-EURODRIVE 822675X.13.17 is an MDF option card designed as a rack-mounted PCB assembly for compatible SEW drive equipment. Its identifiable hardware includes a single 7-segment LED display and three header groups, providing useful physical markers when matching a removed card against replacement inventory.

For maintenance teams supporting older SEW installations, the exact suffix matters. The related 822675X family contains multiple revisions, including 822675X.18.11 and other variants, so a visually similar card should not automatically be treated as interchangeable.

Technical Specifications

The above identification data is based on current industrial-part listings for this exact part number. Electrical ratings such as supply voltage, current consumption, environmental limits, and connector pin assignments should not be assumed from similarly numbered SEW cards; verify them against the drive documentation and the nameplate/revision of the installed assembly.

Field Application & the “Trench” Experience

A realistic maintenance scenario looks like this:

A packaging line using an older SEW drive stops during a production shift. The drive cabinet itself is still mechanically intact, but the diagnostic display behavior points the technician toward the control electronics. Instead of immediately replacing the complete drive, the maintenance engineer removes the card and records every connector position, board marking, and revision number. The purchasing team then searches specifically for 822675X.13.17, rather than ordering a generic “SEW MDF card.”

That distinction can save a considerable amount of troubleshooting time. The 822675X family contains multiple option-card variants, and current industrial distributors list 822675X.13.17 separately from 822675X.18.11 and other revisions.

Specific application scenarios

• Automated packaging conveyor drive replacement where an obsolete SEW control assembly must be matched to the existing cabinet hardware.
• Legacy material-handling equipment requiring an exact spare for an installed SEW drive rather than a complete drive retrofit.
• Production-line emergency maintenance where a discontinued PCB must be sourced from industrial surplus inventory to preserve the existing drive architecture.

822675X.13.17

822675X.13.17

Transparency SOP: QA & Testing

For a New Surplus or unused-original-packaging unit, the practical receiving inspection should be straightforward:

1. Identity check — Confirm that the PCB marking reads 822675X.13.17. Do not accept a visually similar 822675X revision as an automatic substitute.

2. Physical inspection — Check the PCB for cracked components, bent header pins, corrosion, oxidation, damaged connectors, or signs of previous installation.

3. Display and connector inspection — Confirm the 7-segment display is physically intact and inspect the three header groups against the reference board.

4. Packaging verification — Record the condition of the antistatic packaging, labels, manufacturer markings, and any traceable stock information.

5. Installation-level verification — Before energizing the equipment, compare the replacement board with the removed unit and confirm connector orientation and mechanical seating.

A key distinction in procurement records is worth keeping: “New Surplus,” “Never Used Original Packaging,” and “Refurbished” are different condition categories. Current industrial listings explicitly separate these conditions for 822675X.13.17.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — The suffix is not decoration.
Do not order simply because the board starts with 822675X. The same family includes other revisions, and listings identify 822675X.18.11 as a separate MDF option card. Match the complete 822675X.13.17 designation.

⚠️ Trap #2 — Do not infer electrical specifications from another SEW board.
The available identification data confirms the card type, display, headers, mounting style, and weight. It does not establish every electrical parameter. For a replacement, use the original equipment documentation for connector pinout and electrical compatibility.

PRO TIP: Photograph the original card before removal. Capture the complete part number, revision markings, connector orientation, jumper/header configuration, and cabinet location. That photo becomes the reference when receiving and installing the replacement.

⚠️ Trap #3 — Do not treat a discontinued card as a universal upgrade.
The current listings identify 822675X.13.17 as discontinued. That makes exact replacement sourcing useful, but it also means a modern SEW card should not be substituted merely because it appears to provide a similar function.

Dynamic FAQ

What is SEW 822675X.13.17?

It is a SEW-EURODRIVE MDF option card, implemented as a rack-mounted PCB assembly. Published identification data specifies one 7-segment LED display and three header groups: 1×3, 1×5, and 1×11.

Is 822675X.13.17 a complete SEW inverter?

No. It is listed as an MDF option card / PC board, not a complete frequency inverter. It should therefore be evaluated as a component within the compatible SEW equipment rather than as a standalone drive.

Is 822675X.13.17 discontinued?

Current industrial-part listings identify the manufacturer status as discontinued. Because of that status, surplus and unused-original-packaging inventory can be relevant when maintaining legacy equipment.

Is 822675X.18.11 interchangeable with 822675X.13.17?

Do not assume so. Both are identified as MDF option cards, but they carry different complete part numbers. Compatibility should be established from the host drive documentation and the installed card revision rather than from the family number alone.

What should be checked before ordering?

Confirm the complete part number 822675X.13.17, the existing drive/application, board revision, connector arrangement, and physical mounting configuration. A clear photograph of the existing PCB is also useful for a visual cross-check.

Does New Surplus mean refurbished?

No. “New Surplus” normally refers to unused inventory that was not consumed in the original production system. Current distributors separately classify unused original packaging, unused repackaged stock, and refurbished units, so the exact condition should be stated on the quotation.
