SEW-EURODRIVE FBG31C-08 | Detachable Control Unit

Description

Core Product Summary

The SEW-EURODRIVE FBG31C-08 is a detachable keypad operator panel for MOVITRAC 31C frequency inverters from SEW-EURODRIVE. It plugs into slot X4 on the inverter and serves as the local operating interface for startup, parameter setting, and drive monitoring. The FBG31C keypad family is the operating option series for the MOVITRAC 31C unit range, with the variant suffix identifying the inverter size it fits.

In operation, the panel’s arrow keys navigate the parameter menu, switch between menu levels, and change parameter values. The basic display shows output frequency and current utilization, and the panel presents coded messages along with fault numbers and fault text when the inverter reports a condition. Besides the full parameter menu, the SEW documentation describes a switchable short menu containing the most frequently used parameters, which shortens routine startup work. The panel is the designated tool for the MOVITRAC 31C “short-cut startup” procedure: it is plugged into the X4 slot, and after the mains supply is switched on the inverter displays its startup message. Note that X4 is shared with the USS21A serial interface option, so the keypad and the serial option occupy the same slot and cannot be fitted simultaneously.

Key Technical Specifications

Detailed Product Overview

The MOVITRAC 31C is a frequency inverter series with a compact enclosure in which operating options live on dedicated internal slots rather than a fixed front keypad. The FBG31C family is the keypad option line for this drive generation, and the -08 is the variant ordered for the larger MOVITRAC 31C units. Because the panel is detachable, one service keypad can be used on multiple inverters in a plant: it is plugged into the inverter’s X4 slot when commissioning or diagnostic work is required and removed afterwards.

Its working role is defined by the MOVITRAC 31C operating instructions. The manual’s “short-cut startup with the FBG31C keypad” section establishes the panel as the standard commissioning tool: after the panel is plugged in and the mains supply (and 24 V supply, if applicable) is switched on, the inverter signals readiness with the yellow LED V1 and displays its startup message. The operator then works through the parameter set using the arrow keys — the keys navigate the menu, change between menu levels, and adjust values. For routine commissioning, the short menu concentrates the frequently used parameters so that a standard application can be started without stepping through the complete parameter list; the full parameter menu remains available for detailed configuration.

During normal running, the panel’s basic display keeps the two values that matter for a quick health check in view: the output frequency and the current utilization of the inverter. When the drive reports a fault, the panel shows the coded message together with the fault number and fault text, which links the on-site observation directly to the fault tables of the MOVITRAC 31C operating instructions. This makes the panel the primary interface between the drive electronics and the service engineer — both for entering setpoints and for reading out diagnostic information.

One integration constraint must be respected when planning the drive configuration: the X4 slot is a shared resource. It hosts either the FBG31C keypad or the USS21A serial interface option (RS-232 and RS-485), not both at once. A plant that relies on serial communication for control must therefore decide between permanent serial connectivity and a permanently fitted keypad, or use the keypad only transiently and restore the serial option afterwards. The other MOVITRAC 31C option slots (X20/X21) carry the expansion and fieldbus options — FEA31C/FIO31C input/output expansion, FES31C synchronous operation, fieldbus interfaces FFP31C/FFI31C/FFD31C, FEN31C speed detection, FPI31C position detection, and FIT31C TF/TH evaluation — and are not involved in the keypad.

A practical detail for maintenance: the retaining screws for removing the inverter housing are located underneath the FBG31C keypad (or the USS11A/UST11A interface). Any housing-removal work on the inverter therefore involves unseating the keypad first, which service personnel should account for when planning access to the power terminal strip X1.

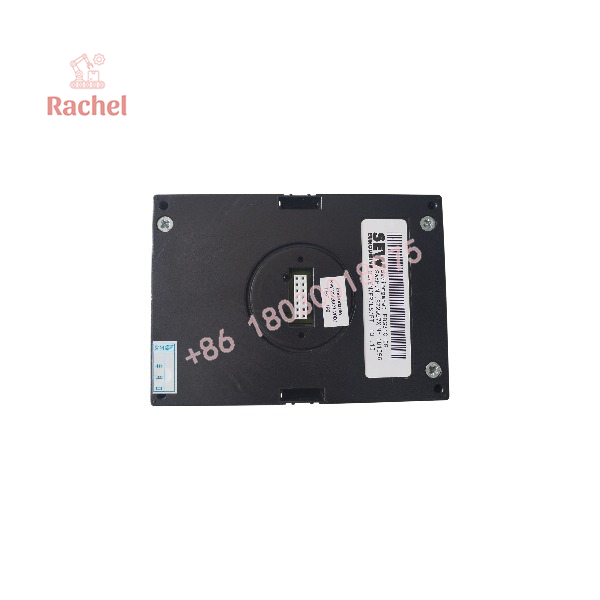

FBG31C-08

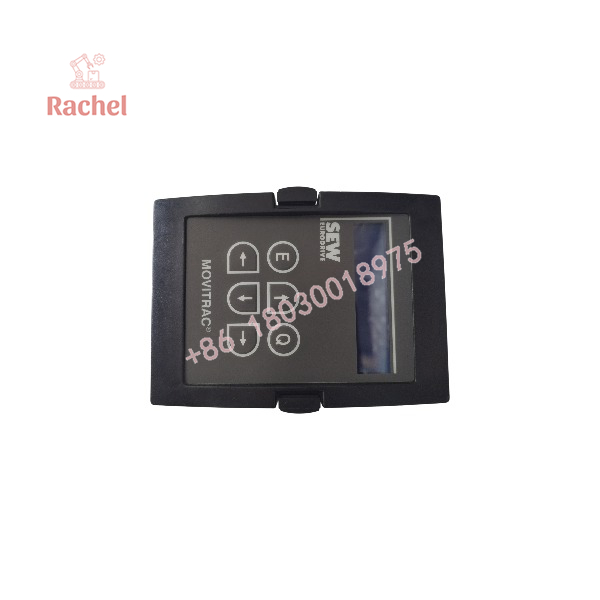

FBG31C-08

Engineering Selection Highlights

• Drive family fit: The FBG31C-08 is an operating option for SEW MOVITRAC 31C frequency inverters; it is not a keypad for other SEW drive series, so ordering is driven by the inverter family and unit size in the field.
• Variant matching: The FBG31C family exists in variants (-01, -05, -08) corresponding to different MOVITRAC 31C unit sizes — select the variant that matches the inverter’s rating rather than assuming one keypad fits all units.
• Slot conflict at X4: The keypad and the USS21A serial interface option share slot X4; drives that communicate serially cannot host both options simultaneously.
• Commissioning workflow: The MOVITRAC 31C short-cut startup procedure is built around this keypad; plants without it depend entirely on serial-based parameterization for startup.
• Diagnostic value: The panel displays fault number and fault text, allowing direct use of the fault tables in the operating instructions during on-site troubleshooting.
• Service concept: Because the panel is detachable, a single unit can serve as a plant-wide service tool — but note that removing the inverter housing also requires unseating the keypad first, as the housing screws are located beneath it.

Dimensions, Mounting & Connection Notes

• Mounting: The FBG31C-08 is not panel-mounted; it plugs directly into slot X4 of the MOVITRAC 31C inverter and is retained by the inverter housing.
• Connection: No separate wiring is required — the panel connects through the X4 slot, which is located on the inverter’s electronics side (the same slot also used by the USS21A serial interface option).
• Access note: The inverter’s housing retaining screws are located beneath the keypad/interface, so the panel must be unseated before the housing is opened for access to the power terminal strip X1.
• Operating environment: The panel operates as part of the inverter’s electronics environment; the applicable installation conditions are those of the MOVITRAC 31C unit per its operating instructions.
• No user-serviceable wiring, torque values, or clearances are defined for the panel itself; follow the MOVITRAC 31C operating instructions for all installation work on the inverter.

System Compatibility & Integration Requirements

FAQ

What isEW ?
The FBG31C-08 is a detachable keypad operator panel from SEW-EURODRIVE for MOVITRAC 31C frequency inverters, plugging into the inverter’s X4 slot.

What is it used for?
It is the local operating interface for starting up the inverter, setting parameters, monitoring output frequency and current utilization, and reading coded fault messages with fault number and fault text.

Where does the FBG31C-08 connect?
It plugs into slot X4 of the MOVITRAC 31C inverter; the drive’s short-cut startup procedure begins by plugging the keypad into this slot and switching on the mains supply.

Can the keypad and the serial interface option be used at the same time?
No. Slot X4 hosts either the FBG31C keypad or the USS21A serial interface option (RS-232 and RS-485); the two options share the same slot.

What do the variant suffixes of the FBG31C mean?
The FBG31C family is available in variants (such as FBG31C-01, -05, and -08) that correspond to different MOVITRAC 31C unit sizes; the -08 is ordered for the larger drives, listed in the 21/22/23 kW range.

What does the panel display during normal operation?
The basic display shows the output frequency and the current utilization of the inverter, and switches to coded messages with fault number and fault text when a fault occurs.

Does the panel have a short menu?
Yes. In addition to the complete parameter menu, the SEW documentation describes a switchable short menu containing the most frequently used parameters to speed up routine startup.

Verification & Troubleshooting Notes

• No display after plugging in: Confirm the mains supply (and 24 V supply, if applicable) is switched on and that the inverter’s LED V1 indicates the expected status; reseat the keypad in slot X4 to rule out a poor plug connection.
• Keypad cannot be plugged in: Check that the USS21A serial interface option is not already occupying slot X4 — the keypad and serial option cannot be fitted simultaneously.
• Fault shown on the panel: Read the displayed fault number and fault text and look the value up in the fault information section of the MOVITRAC 31C operating instructions; the panel reports the fault, the cause analysis is done from the manual’s fault tables.
• Parameter cannot be found: Switch between the short menu and the complete parameter menu; frequently used parameters are grouped in the short menu, while full configuration requires the complete list.
• Housing cannot be removed from the inverter: The retaining screws are located beneath the FBG31C keypad (or USS11A/UST11A interface) — unseat the panel first before opening the housing.
• Using one keypad on several drives: The panel is detachable by design, but each drive’s variant must match; verify the FBG31C variant against the inverter unit size before commissioning.
• All work on the inverter involves power electronics: disconnect the inverter from the supply as described in the MOVITRAC 31C operating instructions before removing housings or options, and observe the applicable safety procedures.
