Description
Product Introduction

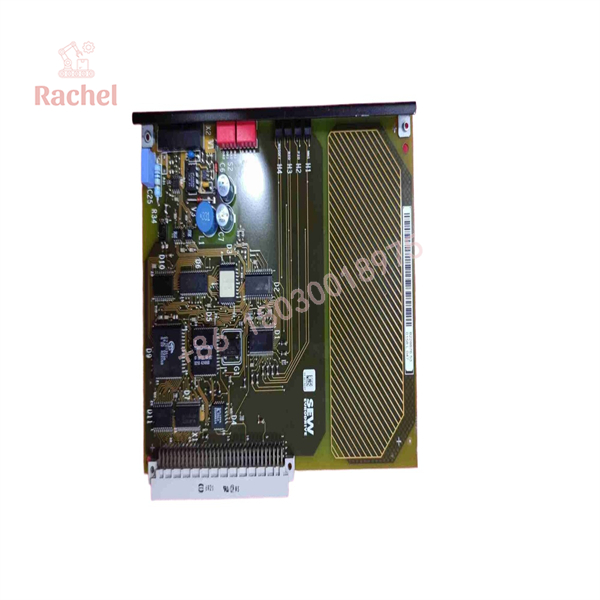

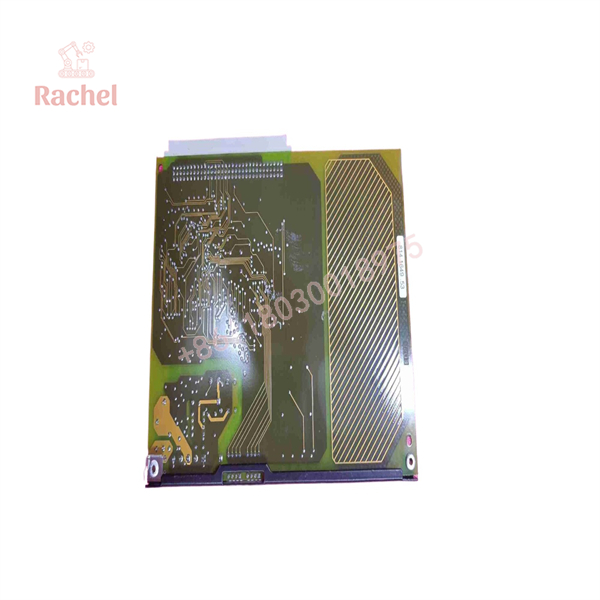

The SEW EURODRIVE 8141649.53 is a vital internal control board assembly engineered for SEW-EURODRIVE industrial drive systems (including MOVIDRIVE, MOVIMOT, and MOVITRAC inverter series). Positioned within the drive chassis, this printed circuit board handles essential functions such as gate drive signal generation, encoder feedback processing, communication routing, and onboard power management.
Built for continuous duty in heavy industrial automation, the 8141649.53 board ensures precise motor speed regulation and current control. Replacing a degraded or damaged board allows plant engineers to restore existing drive units without incurring the higher costs and re-commissioning delays associated with replacing complete frequency inverters.
Key Technical Specifications
| Parameter | Value / Specification |
| Manufacturer | SEW-EURODRIVE |
| Part Number | 8141649.53 (or 814 164 9 . 53) |
| Drive Family Compatibility | SEW MOVIDRIVE / MOVITRAC / MOVIMOT Inverter Series |
| Board Type | Internal Control / Gate Drive / Interface PCB |
| Operating Voltage | Internal Low-Voltage DC Rails (Supplied via Drive PSU) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Mounting | Internal Drive Frame Chassis / Standoff Mount |
| Certifications | CE, UL / cUL Listed (when housed in native SEW drive) |
Application Scenarios & The “Trench” Experience
Picture this: It’s during peak production on a high-speed warehouse sorting conveyor line. A primary SEW gearmotor inverter suddenly trips with an unrecoverable “F-08 Speed Controller / Hardware Fault.” Inspecting the drive housing reveals heat discoloration on the internal control PCB traces. A replacement drive unit has a 12-week factory backorder, putting an entire distribution lane out of service.
In our industrial repair experience, keeping a bench-tested SEW 8141649.53 board on hand allows maintenance technicians to perform an internal module swap directly on the bench. Exchanging the faulted PCB restores full gate switching and encoder feedback capabilities—bringing the VFD back online in under an hour and avoiding major production downtime.
- Automotive Assembly Lines – Motor speed and torque regulation for body shop transfer systems and overhead hoists.
- Material Handling & Logistics – Precision velocity control for high-speed pallet conveyors and automated storage/retrieval systems (ASRS).
- Food & Beverage Packaging – Drives indexing tables and continuous bottling lines under harsh ambient conditions.
8141649.53
8141649.53
Transparency SOP: Quality Assurance & Testing
Every SEW EURODRIVE 8141649.53 module undergoes a rigorous multi-step functional test prior to shipping:
- Microscopic & Thermal Inspection: Examine all solder joints, surface-mount components, trace continuity, and power transistors for micro-cracks or heat damage.
- DC Power Rail Verification: Power up the board on a bench power supply to verify onboard voltage regulators, operational amplifiers, and status LED circuits.
- Inverter Bench Simulation: Mount the card inside a matching SEW chassis to test PWM output firing, encoder signal processing, and parameter memory read/write cycles.
- Load & Heat Stress Test: Run the host drive under load simulation to ensure thermal stability and verify zero intermittent fault trips.
- ESD Protection & Packaging: Clean contact pads with isopropyl alcohol and double-seal the unit inside static-shielded packaging with moisture-absorbing desiccant.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Always Discharge Inverter Capacitors First! High-voltage DC bus capacitors in SEW drives retain lethal voltage (>600 V DC) long after main power is disconnected. Always wait at least 10 minutes after powering down and verify 0 V DC on the bus terminals before opening the chassis!
- ❗ Verify Firmware / Revision Match: Before swapping the 8141649.53 board, verify that the revision suffix (e.g.,
.53) and firmware EEPROM chips match your original board. Mismatched board revisions can cause “Eeprom Parameter Error” faults on boot up. - ⚠️ Inspect Optocouplers and Gate Resistors: If replacing this board because of a blown IGBT module, check surrounding gate resistors for charring. Installing a new control board onto a shorted IGBT power stage will immediately destroy the new driver circuits!
- ❗ Use Grounded Wrist Straps: High-density CMOS digital signal processors on SEW control cards are highly sensitive to electrostatic discharge. Always wear a grounded ESD wrist strap when handling exposed boards. Trust me.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the SEW 8141649.53 board a complete VFD or an internal component?
A: It is an internal control/interface board sub-assembly designed to be installed inside a complete SEW-EURODRIVE frequency inverter chassis.
Q: Can I swap this board without reprogramming parameters?
A: If the onboard EEPROM memory chip is transferred from your old board (or if drive parameters are stored in a removable keypad/option module), parameter settings can be retained automatically.
Q: What warranty coverage comes with this surplus module?
A: We back all bench-tested surplus and refurbished SEW-EURODRIVE electronic components with a full 12-month operational replacement warranty.
Q: How quickly can this part be shipped to an urgent plant repair?
A: We offer same-day dispatch and expedited express shipping (DHL/FedEx/UPS) for emergency breakdown situations worldwide.
