Siemens 6ES7716-2CB10-0EC4 SIMATIC Field PG M4 Premium Plus

Description

Product Introduction & Engineering Value

Some automation assets cannot be replaced by a normal office laptop. The Siemens 6ES7716-2CB10-0EC4 SIMATIC Field PG M4 Premium Plus was designed specifically for industrial engineers who need direct access to Siemens PLC systems, including legacy S5 and S7 platforms. It combines engineering software compatibility with dedicated automation interfaces required during commissioning and troubleshooting.

This Field PG configuration remains valuable in plants operating mature Siemens automation systems. Its dual-boot environment, S5 interface support, and integrated programming features allow engineers to maintain older projects without rebuilding software environments on modern hardware.

Technical Specifications

Field Application & The “Trench” Experience

A steel processing plant had been operating an S7-400 production line for more than a decade. During a scheduled shutdown, technicians needed to modify several PLC blocks and verify PROFIBUS communication after replacing aging drives.

The engineering team brought a modern laptop to site, but the older STEP 7 project environment depended on specific drivers and communication interfaces that were no longer available. The project opened, but online diagnostics were unreliable.

The maintenance department deployed a Siemens 6ES7716-2CB10-0EC4 SIMATIC Field PG M4 Premium Plus from spare engineering inventory. Engineers connected directly through the MPI/DP interface, accessed the archived STEP 7 project, and completed commissioning without changing the existing automation environment.

The field lesson: legacy automation support often depends on preserving the complete engineering toolchain, not only the PLC hardware.

Typical application scenarios:

• S7-300/S7-400 PLC commissioning and troubleshooting
• S5-to-S7 migration projects
• PROFIBUS network diagnostics
• Legacy WinCC and STEP 7 maintenance tasks

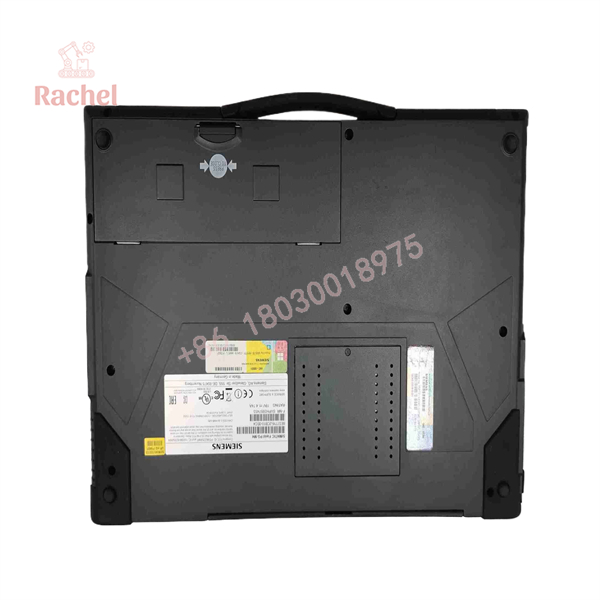

6ES7716-2CB10-0EC4

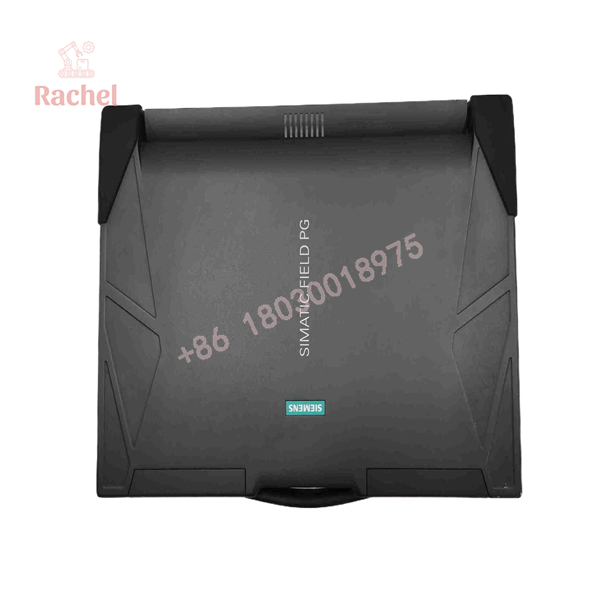

6ES7716-2CB10-0EC4

Transparency SOP: QA & Testing

Industrial programming devices require verification beyond basic laptop startup.

Inspection and test process:

1. Hardware Identification

• Confirm Siemens SIMATIC Field PG label.
• Verify model number: 6ES7716-2CB10-0EC4.
• Check accessories and interface modules.

2. Component Testing

• CPU performance test.
• RAM verification.
• SSD health inspection.
• Display and keyboard function check.

3. Interface Validation

• Test MPI/DP communication.
• Verify S5 interface operation.
• Check EPROMMER functionality.
• Confirm Ethernet and USB ports.

4. Software Environment Check

• Verify dual-boot operation.
• Confirm Windows XP and Windows 7 startup.
• Validate STEP 5 / STEP 7 communication functions.

5. Final Records

• Record serial number.
• Document included accessories.
• Assign inventory condition:
  • New Surplus
  • Refurbished
  • Tested Used

The Veteran’s Tech Trap Guide

⚠️ Trap #1: Replacing a Field PG With a Standard Notebook

A standard laptop may run engineering software but still fail field service requirements.

Missing items often include:

• MPI/DP interface
• S5 communication capability
• EPROM programming support
• Compatible legacy operating systems

PRO TIP: For older Siemens systems, the engineering computer is part of the automation ecosystem.

⚠️ Trap #2: Losing the Original Software Environment

Many S5 and S7 projects depend on specific versions of:

• STEP 5
• STEP 7 Classic
• WinCC flexible
• Hardware catalog files

A clean Windows installation does not guarantee project compatibility.

⚠️ Trap #3: Ignoring Battery and Storage Aging

Field PG units are frequently stored as emergency tools.

Before deployment, verify:

• Battery charging capability
• SSD health
• Backup power adapter
• CMOS battery condition

A unit that boots in storage may still fail during a shutdown window.

Dynamic FAQ

Q1. What is the Siemens 6ES7716-2CB10-0EC4 used for?

The Siemens 6ES7716-2CB10-0EC4 is a SIMATIC Field PG M4 Premium Plus engineering workstation used for Siemens PLC programming, commissioning, diagnostics, and maintenance.

Q2. Is the 6ES7716-2CB10-0EC4 a PLC or automation controller?

No. It is an engineering programming device. It connects to Siemens PLC systems and is used by engineers for configuration, troubleshooting, and project management.

Q3. What makes this Field PG different from a normal industrial laptop?

Key differences include:

• Integrated Siemens automation interfaces
• MPI/DP communication capability
• S5 programming support
• EPROM programming functions
• Preconfigured engineering software environment

Q4. Which PLC families are commonly maintained with this Field PG?

Typical applications include:

• SIMATIC S5 systems
• S7-300 systems
• S7-400 systems
• Legacy STEP 7 Classic projects

Q5. What should buyers verify before purchasing a New Surplus 6ES7716-2CB10-0EC4?

Recommended checks:

• Exact Siemens order number
• Processor and RAM configuration
• SSD condition
• Battery performance
• MPI/DP interface testing
• S5 interface and EPROMMER verification
• Software license status
• Warranty coverage

Q6. Is refurbished 6ES7716-2CB10-0EC4 suitable for industrial maintenance?

Yes. A refurbished unit is suitable when it has passed hardware diagnostics, communication interface testing, and software environment verification. For plants maintaining legacy Siemens systems, a tested Field PG can significantly reduce troubleshooting delays.
