Product Introduction

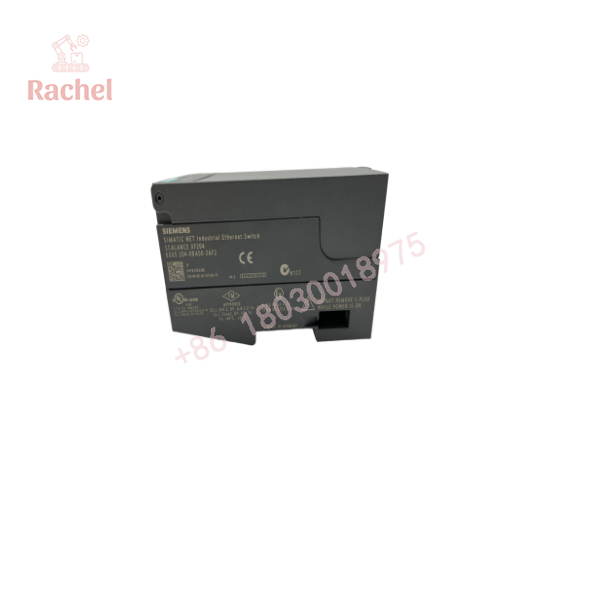

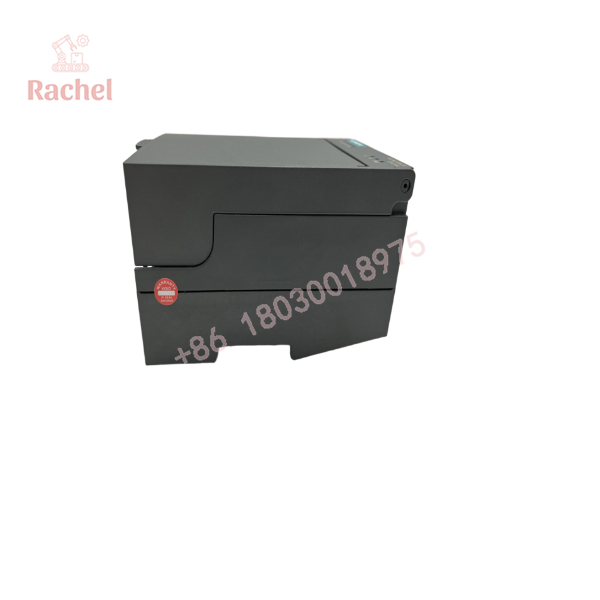

The Siemens 6GK5204-0BA00-2AF2 (SCALANCE X204-2) is a robust, managed Layer 2 industrial Ethernet switch built for factory floor automation networks. Engineers deploy this unit in S7-300, S7-1200, and S7-1500 architectures where mixed copper and long-distance fiber runs require reliable ring redundancy without packet loss.
Featuring four standard copper RJ45 ports and two dual-fiber SC ports, the X204-2 handles plant-floor environmental stress while providing comprehensive network diagnostics. In our field experience, replacing a damaged unmanaged switch with this managed SCALANCE model gives system integrators the exact port-level visibility needed to troubleshoot elusive bus timeouts instantly.
Key Technical Specifications
| Parameter | Value |
| Part Number | 6GK5204-0BA00-2AF2 |
| Model Name | SCALANCE X204-2 |
| Manufacturer | Siemens |
| RJ45 Ports | 4x 10/100 Mbps (Auto-Crossing / Auto-Negotiation) |
| Fiber Ports | 2x 100 Mbps SC Multimode Fiber Transceivers (Up to 5 km) |
| Operating Voltage | Dual Redundant 24V DC (18V to 32V DC) |
| Network Protocols | PROFINET IO Device, SNMP v1/v2c, HTTP, Web-Based Management |
| Redundancy Protocols | Standby Redundancy, MRP (Media Redundancy Protocol via firmware update) |
| Enclosure Rating | IP30 Rugged Metal Housing |
| Operating Temperature | -40°C to +60°C (-40°F to 140°F) |
Application Scenarios & The “Trench” Experience
A wastewater treatment facility experienced intermittent SCADA communications loss between the central control building and a remote chemical dosing skid 1.5 kilometers away. The legacy communication link relied on unmanaged media converters prone to severe ground loop interference during heavy pump startup cycles, throwing alarm flags across the operator displays every few hours.
- Water & Wastewater – Remote Dosing Skid Link – Extends network reach safely across lightning-prone outdoor trenches using noise-immune SC fiber links.
- Discrete Manufacturing – Packaging Line Cell Network – Connects local PLC racks into a redundant ring topology to prevent single-cable cut downtime.
- Energy Infrastructure – Substation Automation – Operates reliably within extreme temperature variations inside outdoor weather-proof enclosures.
The field engineering team pulled pre-terminated fiber directly into a replacement 6GK5204-0BA00-2AF2 switch. The fiber link locked in immediately, the power supply diagnostics cleared, and the plant achieved zero packet loss across the telemetry network.
6GK5204-0BA00-2AF2
6GK5204-0BA00-2AF2
Transparency SOP: Quality Assurance & Testing
We do not just ship boxes; we test them on actual Siemens S7 PLC test benches. Every 6GK5204-0BA00-2AF2 undergoes the following verification process:
- Inbound Physical Inspection: Examining the metal housing, DIN-rail mounting bracket, and optical SC transceiver ports for dirt, dust caps, or physical wear.
- Dual-Power Validation: Powering the dual 24VDC terminal blocks to verify proper primary/secondary rail switching and internal fault relay behavior.
- Link & Throughput Stress Testing: Passing live Ethernet traffic across all four RJ45 ports while measuring optical signal attenuation and decibel loss on the SC fiber ports.
- Firmware & Web GUI Audit: Accessing the switch via its default IP management interface to clear old configuration files, test web-based management parameters, and verify diagnostic registers.
- Anti-Static Shielding: Sealed inside heavy-duty anti-static barrier bags with custom foam protection to ensure zero transit damage.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Check Your Fiber Transceiver Pairings: The SC ports on the X204-2 require standard dual-fiber cables (one Transmit and one Receive strand). Do not mistake these for single-strand BiDi (Bidirectional) optics; crossing your TX/RX strands will leave your link permanently down.
- ❗ C-PLUG Backup Utilization: Always ensure the device’s removable C-PLUG (or plug-in storage medium depending on sub-generation) is unclipped and preserved if you are swapping out a dead unit. Inserting the old C-PLUG into your replacement X204-2 auto-transfers the device configuration and IP address without requiring STEP 7 or TIA Portal.
- ⚠️ Voltage Sag Warnings: While the unit accepts 18V to 32V DC, a severe 24V power supply sag caused by a failing cabinet power brick will cause the switch’s internal watchdog to toggle the fault contact relay, lighting up the red “ST” (Standby/Fault) LED on your front panel. Verify your DC rail with a DMM before blaming the switch.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Siemens 6GK5204-0BA00-2AF2 hot-swappable?
A: Yes, industrial Ethernet switches can be disconnected from power and replaced on a DIN rail safely. If configured with a C-PLUG, configuration restoration is completely automatic upon power-up.
Q: Does this switch support Gigabit speeds?
A: No. The SCALANCE X204-2 is a 10/100 Mbps Fast Ethernet switch. All copper ports and fiber ports operate at a maximum speed of 100 Mbps.
Q: Can I integrate this switch into TIA Portal for diagnostics?
A: Yes. You can import the GSD file or device profile into your Siemens engineering software to monitor port states, link status, and power supply health directly from your PLC tag table.
Q: Are the fiber ports multimode or single-mode?
A: The standard 6GK5204-0BA00-2AF2 model features multimode SC fiber optic ports designed for distances up to 5 kilometers.
Q: What kind of warranty comes with this surplus unit?
A: We stand behind our hardware quality with a comprehensive 12-month replacement warranty on every surplus and rig-tested unit we ship.
