Description
Product Introduction & Engineering Value
The Siemens 6SE3214-0DA40 MICROMASTER Vector MMV150/3 is an industrial AC drive designed for precise speed and torque control of three-phase motors. It supports 380–500 VAC input power and delivers 1.5 kW motor output capability with sensorless vector control, making it suitable for machinery requiring stable motor performance.
Many facilities still operate this MICROMASTER generation because the original automation equipment remains reliable. When a legacy machine depends on existing drive parameters, replacing a failed inverter with a matching 6SE3214-0DA40 can reduce commissioning time and avoid unnecessary control system modifications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Order Number | 6SE3214-0DA40 |
| Drive Family | MICROMASTER Vector |
| Model Designation | MMV150/3 |
| Input Voltage | 3 AC 380–500 VAC ±10% |
| Input Frequency | 50/60 Hz |
| Rated Motor Output | 1.5 kW (2 HP) |
| Rated Output Current | 3.7 A |
| Maximum Continuous Output Current | Approximately 4.0 A |
| Output Frequency Range | 0–650 Hz |
| Control Methods | Sensorless vector control, FCC, V/f control |
| Overload Capability | 150% for 60 seconds, 200% for 3 seconds |
| Communication Interface | RS-485 |
| Enclosure Rating | IP20 |
| Dimensions | 73 × 175 × 141 mm (W × H × D) |
| Weight | Approximately 0.75 kg |
Field Application & The “Trench” Experience
A machine builder supporting an older CNC production line experienced repeated spindle auxiliary motor trips. The motor insulation tested correctly, and mechanical inspection found no bearing or alignment issues. The problem appeared only during acceleration cycles.
The maintenance engineer reviewed the drive diagnostics and found the aging MICROMASTER inverter was reaching current limits during startup. Because the machine parameters, wiring, and motor characteristics were already optimized around the original drive, the team replaced the failed unit with a Siemens 6SE3214-0DA40 instead of redesigning the control cabinet.
After parameter restoration and motor identification checks, the machine returned to stable operation.
Typical application scenarios include:
- CNC machine auxiliary axis motor speed control
- Packaging equipment conveyor drive systems
- Small process pump and fan speed regulation
- Material handling equipment requiring compact cabinet-mounted drives

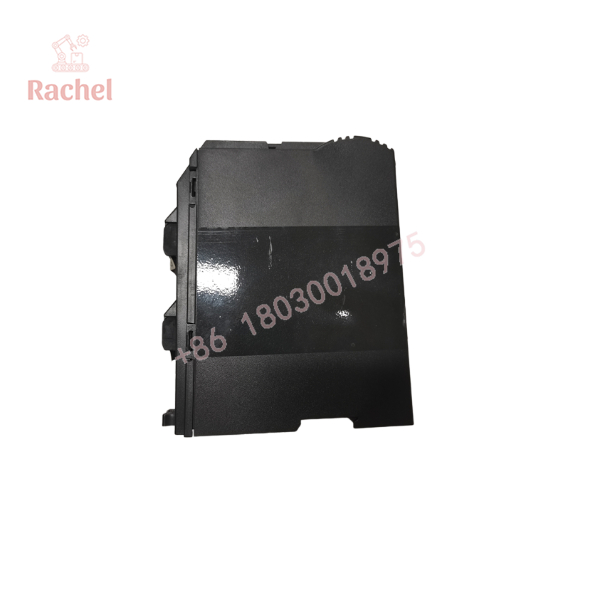

6SE3214-0DA40

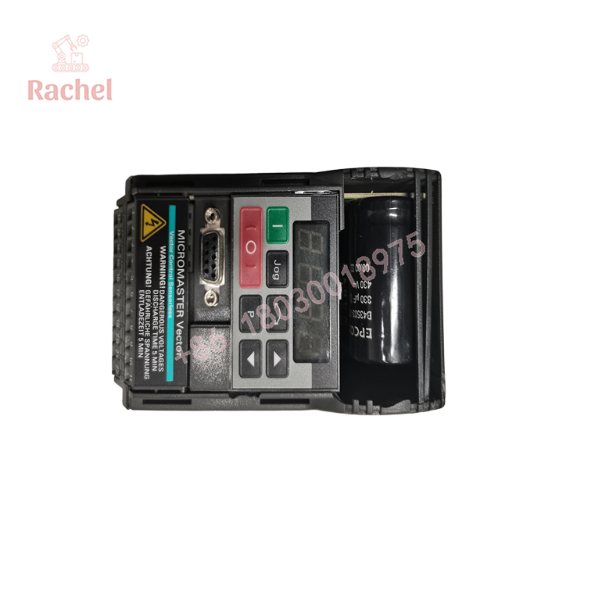

6SE3214-0DA40
Transparency SOP: QA & Testing
A legacy frequency converter should be evaluated as a power electronics device, not only visually inspected.
Quality verification process:
1. Identification Check
- Confirm Siemens label and article number.
- Verify exact model: 6SE3214-0DA40.
- Check housing condition and terminal markings.
2. Power Section Testing
- Verify DC bus charging behavior.
- Check input rectifier operation.
- Measure output phase balance.
- Confirm fault monitoring functions.
3. Motor Control Verification
- Load-test output operation.
- Verify acceleration and deceleration functions.
- Confirm vector control response.
- Check keypad and parameter access.
4. Documentation
- Record firmware information if available.
- Save parameter settings.
- Document test results.
- Record warranty status.
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Replacing With a Similar MICROMASTER Model Without Checking Ratings
The MICROMASTER family contains many visually similar drives.
Verify:
- Input voltage class
- Motor power
- Output current
- Control configuration
- Communication options
A physically compatible replacement may not match the original application.
⚠️ Trap #2: Forgetting Parameter Backup
A replacement drive with factory defaults may start incorrectly.
PRO TIP: Save:
- Motor nameplate data
- Acceleration/deceleration times
- Current limits
- Frequency references
- Control terminal assignments
⚠️ Trap #3: Ignoring Lifecycle Status
The 6SE3214-0DA40 belongs to an older MICROMASTER Vector generation and is no longer a current Siemens product. Plants maintaining this platform should track installed quantities and replacement availability.
Dynamic FAQ
Q1. What is the Siemens 6SE3214-0DA40 used for?
The Siemens 6SE3214-0DA40 is a MICROMASTER Vector MMV150/3 variable frequency drive used for controlling three-phase AC motors up to 1.5 kW.
Q2. What are the input and output ratings of 6SE3214-0DA40?
The drive accepts 3-phase 380–500 VAC input and provides approximately 3.7 A rated output current for a 1.5 kW motor application.
Q3. Does the 6SE3214-0DA40 support vector control?
Yes. The MICROMASTER Vector series supports sensorless vector control as well as traditional V/f control methods.
Q4. Can the 6SE3214-0DA40 directly replace any 1.5 kW Siemens drive?
No. Replacement requires checking:
- Voltage class
- Motor current
- Parameter compatibility
- Control wiring
- Mechanical installation
Q5. What should buyers verify before purchasing a New Surplus 6SE3214-0DA40?
Recommended checks:
- Correct Siemens part number
- Original nameplate condition
- Power section test results
- Parameter retention capability
- Storage history
- Warranty terms
Q6. Is refurbished 6SE3214-0DA40 suitable for industrial spare inventory?
Yes, when the unit has passed electrical testing, output verification, and parameter checks. For legacy MICROMASTER installations, tested refurbished drives are commonly maintained as emergency replacements.
