Product Introduction & Engineering Value
The Siemens 6EQ2020-0AB12-5XX0 is a legacy Industrial Ethernet Module built around the SIMATIC Box PC 627B platform. It was designed for APACS+ / QUADLOG environments and combines an MBI card with an onboard RJ45 Ethernet interface. The specified configuration also includes Compact Flash-based operating-system storage and an MBI Y-cable.
This is old control-system hardware, and that changes the replacement strategy. Siemens lists this configuration as obsolete/discontinued, with Radwell reporting manufacturer discontinuation in August 2018. The documented successor is 6EQ2020-0AC03-5XX0.
Technical Specifications
- Manufacturer: Siemens
- Part Number: 6EQ2020-0AB12-5XX0
- Alternate Formatting: 6EQ2 020-0AB12-5XX0
- Product Type: Industrial Ethernet Module (IEM)
- Base Platform: SIMATIC Box PC 627B
- System Application: APACS+ / QUADLOG
- MBI Hardware: MBI card
- Ethernet: Onboard RJ45 interface
- Storage: Compact Flash card
- MBI Cable: 16137-215 Y-cable
- Power Supply: 120/230 VAC
- Software Version: V2.1
- Related Siemens Item Code: 6ES7647-6BD20-0VF0 is listed by JC-Electronics as a second item code for this configuration.
- Lifecycle: Obsolete/discontinued
- Successor: 6EQ2020-0AC03-5XX0 is identified by Radwell as the successor.
Compatibility warning
Do not treat the 6EQ2020-0AB12-5XX0 as an ordinary Ethernet adapter. It is a complete legacy industrial-computing/IEM configuration intended to connect APACS+ and QUADLOG environments to Ethernet-based engineering or server infrastructure.
Siemens documentation also notes that the newer 6EQ2020-0AC03-5XX0 IEM was used to provide MBUS and Ethernet connectivity to engineering stations, servers, and related APACS+/QUADLOG systems.
Field Application & the “Trench” Experience
Picture a legacy APACS+ installation that has been running for years. The controller itself is still doing its job, but the engineering workstation can no longer communicate correctly with the control system. The maintenance team discovers that the Industrial Ethernet Module has failed.
The problem is not solved by installing an ordinary industrial PC with an Ethernet port. The MBI interface, APACS+/QUADLOG communication environment, Compact Flash operating system, and associated cable configuration are part of the original architecture.
That is why an exact 6EQ2020-0AB12-5XX0 spare can have considerably more value than its age suggests. It preserves the existing architecture while the plant evaluates a longer-term migration strategy.
Specific application scenarios
- Legacy APACS+ engineering-station connectivity — Maintaining Ethernet communication between an engineering workstation and an existing APACS+ control environment.
- QUADLOG control-system maintenance — Supporting Ethernet access to a legacy QUADLOG installation without immediately replacing the entire control platform.
- Plant server/engineering communication — Maintaining the interface between legacy control hardware and Ethernet-connected engineering or supervisory systems.
Transparency SOP: QA & Testing
For this particular module, a cosmetic inspection is not enough. It is effectively a small legacy industrial computer plus specialized communication hardware.
Recommended acceptance sequence:
- Identity check — Verify the complete Siemens 6EQ2020-0AB12-5XX0 part number.
- Configuration check — Confirm the unit contains the expected MBI hardware, Compact Flash storage, and appropriate cable/interface components.
- Physical inspection — Inspect the Box PC chassis, connectors, Ethernet port, card interfaces, power input, and cooling components.
- Storage inspection — Check the Compact Flash card for presence and readable condition.
- Power-up test — Apply the appropriate AC supply under controlled conditions.
- Operating-system test — Confirm that the configured software environment boots correctly.
- Ethernet test — Verify the RJ45 interface and network communication.
- MBI/APACS+/QUADLOG test — Where a suitable test environment exists, verify communication through the MBI interface.
- Final report — Record the part number, serial number, software version, storage media, test results, and physical condition.
JC-Electronics describes this exact model as an obsolete product and states that the unit can be tested as part of its repair/refurbishment service.

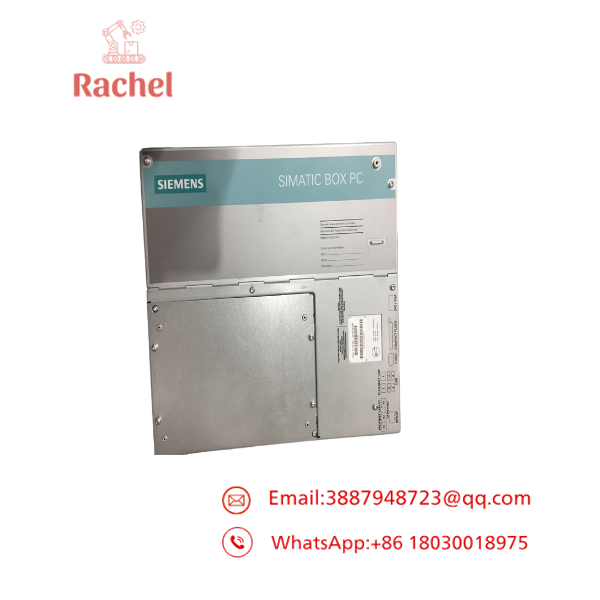

6EQ2020-0AB12-5XX0
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming every 6EQ2020 unit is identical.
They are not. Siemens produced multiple configurations within the 6EQ2020 family. The 0AB12-5XX0 suffix identifies a particular configuration based on the Box PC 627B platform.
PRO TIP: Photograph the rear panel, MBI card, Compact Flash card, label, and cable arrangement before removing the installed unit.
⚠️ Trap #2 — Forgetting the Compact Flash card.
The documented configuration uses the operating system on a Compact Flash card. A replacement chassis without the correct storage media or software environment may not be a functional replacement.
⚠️ Trap #3 — Treating the successor as an automatic drop-in replacement.
6EQ2020-0AC03-5XX0 is identified as the successor, but that does not mean it should be substituted blindly in a production APACS+/QUADLOG installation. Software, interfaces, system configuration, and migration requirements must be checked first.
⚠️ Trap #4 — Ignoring the MBI interface.
The Ethernet port is only one part of the system. The MBI card and associated communication architecture are central to the module’s intended APACS+/QUADLOG application.
Dynamic FAQ
What is Siemens 6EQ2020-0AB12-5XX0?
It is a Siemens Industrial Ethernet Module based on the SIMATIC Box PC 627B, configured for APACS+ / QUADLOG applications with an MBI card and onboard RJ45 Ethernet.
What operating system storage does it use?
The documented configuration places the operating system on a Compact Flash card. The exact installed software image should be verified when purchasing used or refurbished stock.
What power supply does the 6EQ2020-0AB12-5XX0 use?
The published configuration specifies 120/230 VAC power. Radwell additionally lists a 100/240 VAC, 50/60 Hz range and 2–3 A information. For installation, the actual nameplate and applicable Siemens documentation should take precedence.
Is this Siemens module discontinued?
Yes. Current industrial-part references identify the unit as discontinued/obsolete. Radwell reports manufacturer discontinuation on August 10, 2018, and identifies 6EQ2020-0AC03-5XX0 as the successor.
What should I verify before ordering new-surplus stock?
Confirm the complete part number, Box PC configuration, MBI card, Compact Flash card/software, Y-cable 16137-215, AC power configuration, and actual Ethernet/MBI functional test results. A bare Box PC 627B is not necessarily equivalent to the complete IEM assembly.
What warranty should I expect?
Warranty depends on the supplier and condition. Current examples vary: PLCH lists a one-year warranty on its surplus/pre-owned offering, while Radwell states a two-year warranty on its own products and repairs. These are supplier warranties, not Siemens factory warranties.
Is the successor 6EQ2020-0AC03-5XX0 a better choice?
It may be the appropriate migration direction, but not automatically the correct drop-in spare. Siemens documentation specifically identifies the newer IEM as a means of providing MBUS and Ethernet connectivity to APACS+/QUADLOG systems. A migration should be evaluated against the existing software, communication architecture, and engineering-station requirements.
