Supcon COM741-S01 Serial Communication Module ECS-700 DCS Series

Description

Product Introduction & Engineering Value

When upgrading or maintaining high-integrity industrial process networks, maintaining stable serial data links across legacy field devices is critical for continuous plant operation. The Supcon COM741-S01 communication module integrates directly into WebField ECS-700 control racks, establishing reliable serial data pathways without creating system bottlenecks.

Engineered for demanding process environments, this module handles protocol conversion and real-time polling locally. Plant instrumentation teams rely on its stable multi-channel architecture to maintain seamless communication between third-party instrumentation, analyzers, and primary DCS controllers.

Technical Specifications

• System Compatibility: Supcon WebField ECS-700 Distributed Control System (DCS) architecture
• Module Type: Serial Communication Interface Module (COM series)
• Interface Ports: Configurable multi-channel industrial serial communication lines (RS-232 / RS-485 support)
• Redundancy Support: Compatible with system-level redundant controller and communication slot pairings
• Diagnostic Indicators: Front-panel status LEDs for module health, power, and active transmit/receive (TX/RX) traffic
• Mounting Configuration: Plug-in module designed for standard ECS-700 subrack backplane bases
• Operating Temperature Range: Standard industrial temperature thresholds for enclosed control cabinets

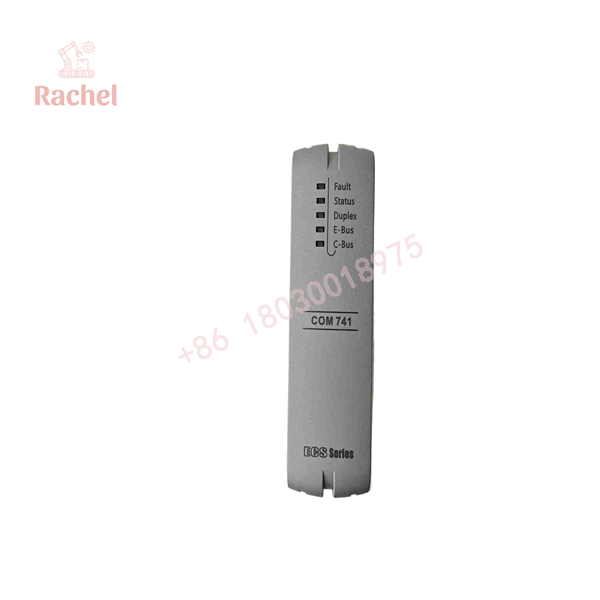

COM741-S01

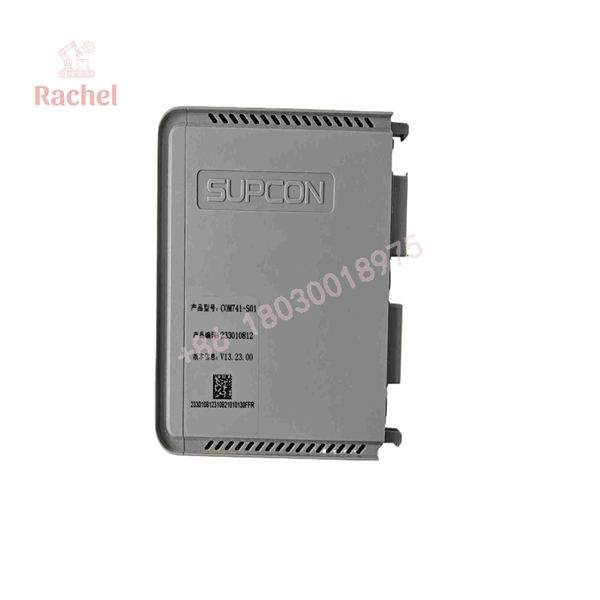

COM741-S01

Field Application & The “Trench” Experience

During a scheduled turnaround at a chemical processing plant, an ECS-700 control node managing raw material feed analyzers lost serial telemetry when an aging communication card suffered an internal bus fault. Restoring data visibility was mandatory before restarting reactant feeds. The instrumentation lead swapped in a verified surplus Supcon COM741-S01 module from the plant’s safety spares, slotted it into the redundant backplane base, and re-established clean Modbus/serial polling with the field gas chromatographs in under twenty minutes.

Specific Niche Application Scenarios:

• Refinery Tank Farm Telemetry Gateways: Polling multi-channel radar level gauges and terminal automation nodes.
• Chemical Analyzer Skid Integration: Interfacing standalone online process chromatographs back to the main ECS-700 controller.
• Boiler Combustion Control Loops: Bridging legacy auxiliary temperature and pressure scanners onto the primary DCS network.

Transparency SOP: QA & Testing

1. Backplane Pin Audit: Inspect gold-plated edge connectors and module guide pins under optical magnification for oxidation or bending.
2. Cold Power-Rail Resistance Check: Verify electrical isolation across internal power terminals and ground planes using a calibrated digital multimeter.
3. Serial Loopback Verification: Mount the module onto a dedicated ECS-700 test rig, running continuous character-stream tests across all serial channels to confirm zero data errors.
4. Redundancy Handshake Test: Validate backplane synchronization and failover response timing to ensure flawless integration with redundant controller pairings.
5. Thermal Chamber Burn-In: Operate the hardware under power inside a 50°C environmental cabinet for 24 continuous hours to screen out early component degradation.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Always verify your physical jumper settings, termination resistors, and baud rate configurations before installing a replacement communication module. Mismatched parity or protocol settings will cause immediate communication timeouts upon system startup.

Warning: Never insert or remove modules from an ECS-700 rack while the main chassis power supply is energized unless the specific base supports authorized hot-swapping. Hot-swapping unapproved slots can induce transient voltage spikes across the backplane bus, risking damage to adjacent control cards.

Dynamic FAQ

1. Is this Supcon COM741-S01 unit brand new or surplus? We supply certified New Surplus and fully bench-tested refurbished hardware, backed by complete historical traceability records.
2. What warranty covers this communication module? Every unit is backed by our comprehensive 12-month replacement warranty covering structural and operational performance.
3. Does this module support redundant rack configurations? Yes, the COM741-S01 is engineered to operate within redundant communication slots on supported ECS-700 backplane bases.
4. What software tool is used to configure this module? Configuration and communication parameters are managed through Supcon’s engineering and programming environment software suites.
5. How does the module receive operating power? The unit draws its required operating voltage directly from the internal power bus of the ECS-700 rack backplane base.
