SUPCON FW214 Module Cage

Description

Product Introduction & Engineering Value

The SUPCON FW214 is a card cage rather than a CPU or conventional I/O module. It forms the mechanical and electrical foundation of an ECS-100 DCS control station, providing 20 slots for the system cards. The backplane supplies 5 VDC and 24 VDC and provides the necessary electrical connections between installed cards.

For legacy ECS-100 maintenance, that distinction matters. A damaged FW214 can create intermittent card faults, power-distribution problems, or communication issues even when the individual controller and I/O cards are healthy. Replacement should therefore include inspection of the backplane and every card connector.

Technical Specifications

The documented slot arrangement is 2 power indication cards, 2 data-transmission cards, and 16 I/O cards, totaling 20 positions.

SUPCON’s ECS-100 documentation also identifies FW214 as the cage associated with the FW247 controller architecture. The broader ECS-100 architecture uses SBUS communications between control-system cages.

Field Application & the “Trench” Experience

A maintenance engineer dealing with an aging ECS-100 cabinet may initially suspect an I/O card when several channels begin behaving intermittently. But if multiple cards in the same cage exhibit unrelated faults, the FW214 backplane becomes a prime suspect.

That is the practical value of keeping a complete FW214 spare. Instead of replacing individual cards one at a time and chasing intermittent connector or backplane problems, the maintenance team can replace the cage and then restore the existing controller and I/O card population.

Typical applications include:

1. ECS-100 DCS control stations
2. FW247/FW247(B)-based controller cabinets
3. Distributed I/O cabinets located near the process
4. Legacy process-control cabinet refurbishment

SUPCON continues to support DCS applications across process industries, including chemical, energy, and other industrial sectors.

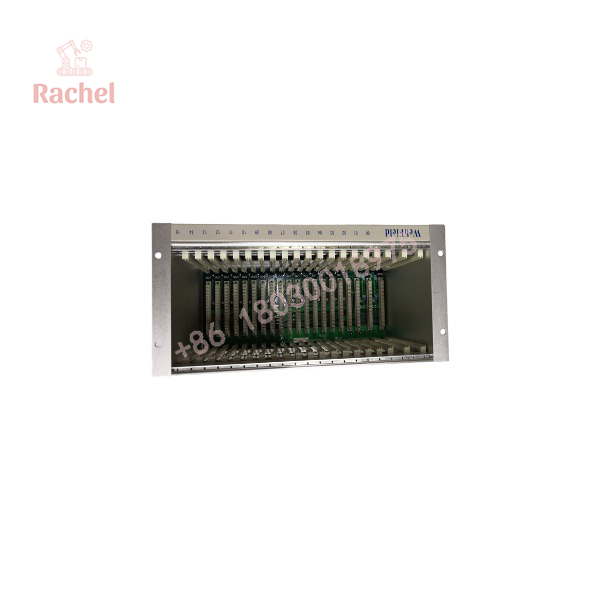

FW214

Transparency SOP: QA & Testing

For New Surplus or Refurbished SUPCON FW214 stock:

1. Mechanical inspection
Inspect the metal frame, mounting rails, card guides, rear backplane, connectors, and fasteners.

2. Backplane inspection
Check all 20 European-style connectors for bent contacts, oxidation, contamination, cracked solder joints, or mechanical damage.

3. Power-distribution verification
Verify continuity and isolation of the 5 VDC and 24 VDC backplane distribution before installing expensive controller or I/O cards.

4. Card-fit test
Use compatible ECS-100 cards to confirm that every slot accepts and mechanically retains the appropriate module.

5. System-level test
Where an ECS-100 test environment is available, install the FW247/FW247(B) controller and representative I/O/data-transmission cards and verify system operation.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Calling FW214 an I/O module.
It is a module cage/card rack. The I/O modules are installed inside it.

⚠️ Trap #2 — Assuming all 20 slots are interchangeable.
The documented architecture allocates specific positions for power indication and data-transmission cards, with the remaining positions used for I/O. Follow the ECS-100 slot arrangement rather than inserting cards arbitrarily.

⚠️ Trap #3 — Checking only mechanical condition.
A cage can look perfect while its backplane has an intermittent connector, damaged trace, or power-distribution fault.

PRO TIP: Before replacing FW214, photograph the complete rack with every card installed. Mark each card’s original slot position. That makes restoration much less error-prone.

Dynamic FAQ

What is the SUPCON FW214?

The SUPCON FW214 is a 20-slot module cage/card rack for the ECS-100 DCS. It provides card mounting, backplane power, and electrical interconnection.

How many cards can FW214 hold?

The cage has 20 card slots. The documented arrangement includes two power indication cards, two data-transmission cards, and sixteen I/O cards.

Which controller works with FW214?

FW214 is designed to work with the /(B) main controller family in the ECS-100 architecture.

What voltages are distributed by the FW214 backplane?

The documented backplane distributes 5 VDC and 24 VDC to the installed cards.

Is FW214 a controller?

No. FW214 is the card cage. The controller is a separate module, such as FW247/FW247(B).

Is New Surplus FW214 acceptable?

Yes. For a legacy ECS-100 installation, New Surplus is a practical spare option when the frame, backplane, connectors, and slot configuration are verified.

What warranty should I request?

Request written coverage for backplane continuity, 5 V/24 V power distribution, connector integrity, mechanical fit, and system-level functionality where testing is available. Also ask whether the actual FW214 was electrically tested or only visually inspected.
