Sutron BT5N071010 HS000656 Operator Panel

Description

Product Introduction & Engineering Value

Hook option B (Pain-Point First): Every hydrology tech knows the drill — a gaging station two miles down a levee road, a laptop with 8% battery, and a setup change that takes two minutes… if the laptop boots. The BT5 exists to kill that scenario dead.

It’s a purpose-built handheld terminal that plugs straight into Sutron’s 9210 and Xpert loggers and speaks their native menu structure. Read live data, run a setup menu, trigger a manual transmit, check battery status — all from a sealed, field-grade display that doesn’t care about rain, dust, or a drop onto a platform grate. For agencies maintaining dozens of remote stations, it’s the difference between a five-minute stop and a wasted trip.

Technical Specifications

Field Application & The “Trench” Experience

The Trench Story: A water-conservation district tech I’ve worked with keeps a BT5 zip-tied inside his truck’s door pocket, and he’ll tell you why. During a spring flood event, a streamgage on a rising river started transmitting garbage on the GOES schedule. He couldn’t remote in — cellular was downriver-dead — so he hiked the levee with just the BT5 clipped to his belt. Plugged in, scrolled the menu, and found a pressure transducer reading pinned full-scale because debris had packed the orifice. No laptop, no XTerm session, no serial dongle drama. He re-zerod what he could, flagged the sensor, logged the visit into the record, and called in the maintenance order from his phone — all before the crest. Two-minute fix. The BT5 paid for itself in one afternoon of not driving back to the office for a computer.

Niche application scenarios:

1. GOES satellite gage stations during scheduled transmit-window audits — verifying the logger’s transmit status and self-test results on-site without a PC connection.
2. Dam seepage weir monitoring vaults — confined-space enclosures where a laptop is impractical and a quick keypad read of daily totals is all the inspection needs.
3. Winter-season precipitation gauges at high-altitude sites — battery and solar-charge status checks when sub-zero temps make touchpads and laptop batteries useless.

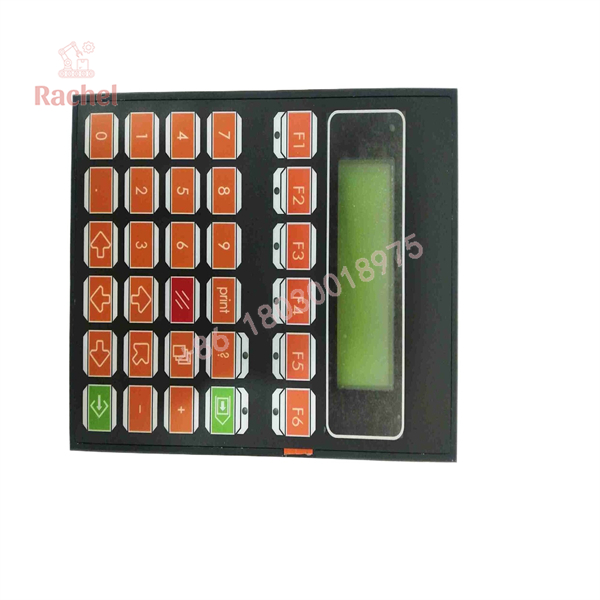

BT5N071010 HS000656

Transparency SOP: QA & Testing

Every BT5N071010 leaving our shelf — New Surplus or Refurbished — goes through this sequence:

1. Visual and keypad inspection — every key depressed and confirmed, gasket and cable strain relief checked
2. LCD verification — backlight and full character-cell test, no dead segments
3. Live host test — connected to a bench Sutron 9210 logger; menu navigation, live data display, and setup access confirmed end-to-end
4. Serial continuity and connector pin condition check on the host cable
5. Serial number and OEM part verification, logged on the QA record that ships with the unit

The Veteran’s Tech Trap Guide

⚠️ Check your logger generation before you buy. Sutron’s display terminals evolved with the 9210 line. A BT5 built for early 9210 firmware may not render the full menu tree on a later 9210B. Match your logger’s firmware version to the panel’s supported set — or let us confirm compatibility against your serial number before you order.

PRO TIP: The connector is the failure point, not the display. Years of field plugging wears the host cable’s connector and stretches gasket seals. On any used unit, inspect the pins and boot. Ours are checked — do the same if you’re pulling one from a spares drawer.

⚠️ Don’t confuse BT5 and BT10. The BT5 is the handheld field terminal; the BT10 is the electronic display panel meant for fixed mounting. They look related, they serve different jobs, and ordering the wrong one means your tech is standing in the rain holding a panel-mount unit with no way to hold it.

PRO TIP: The LCD in extreme cold goes sluggish — contrast drifts and response lags. If you’re winter-testing a unit and the display looks half-dead at 10°F, warm it inside your jacket before condemning it. True display failure is consistent at room temperature; cold lag isn’t.

Dynamic FAQ

Q1: Which Sutron loggers will the BT5N071010 work with?
It’s designed for the Sutron 9210/XLite and Xpert data logger families. Because menu support varies with logger firmware revision, send us your logger model and firmware version and we’ll confirm compatibility before you commit.

Q2: Can it fully replace a laptop with XTerm software?
For field tasks — live readings, menu navigation, minor setup changes, status checks — yes. For full configuration, script editing, or data retrieval, you’ll still want XTerm on a PC. The BT5 is the tool that saves the trip; the laptop remains the deep-access tool.

Q3: What does the HS000656 reference on my unit mean?
It’s the spec/serial-family reference associated with this BT5 build. We verify OEM part numbers and serials against Sutron factory records before listing, and the verification is documented on the QA record included in the shipment.

Q4: Is this genuine Sutron if it’s “New Surplus”?
Yes — New Surplus means original Sutron manufacture that never entered field service: excess OEM, distributor, or agency stock. Original labels and serials intact, verified against factory records. You get the QA record to prove the unit was functionally tested, not just shelved.

Q5: What warranty do you offer?
Both New Surplus and Refurbished units carry our full functional warranty covering display, keypad, and serial interface defects, including DOA replacement. Current term length for this SKU is available from the sales desk.

Q6: Do you stock the 9210 loggers and sensors too?
We regularly stock Sutron 9210-series loggers, SatLink transmitters, and common hydrometeorological sensors. Sourcing the complete station from one vendor means we can bench-verify the panel against the actual logger you’ll deploy it with.
