TDK-Lambda JWS300-24 24V 14A Power Supply

Description

Product Introduction & Engineering Value

The JWS300-24 is a universal-input, enclosed AC-DC power supply designed around a 24 VDC industrial load. Its input accepts 85–265 VAC or 120–330 VDC, making the unit suitable for equipment where input conditions can vary substantially. TDK specifies a nominal 24 VDC output adjustable within 21.6–28.8 VDC.

There is an important lifecycle consideration. TDK-Lambda has marked the JWS300-24 obsolete, with a discontinuation notice dated January 21, 2019, a final purchase-order date of December 2, 2019, and a final shipment date of June 30, 2020. TDK recommends HWS300-24 as an alternate, but explicitly states that interchangeability is not guaranteed.

Technical Specifications

TDK’s specification sheet gives the JWS300-24 a 24 V output, 14 A maximum current, 336 W maximum power, 80% typical efficiency, and universal AC/DC input capability.

Output Performance

The published technical data specifies 150 mV maximum ripple and noise under the stated 0 to +65°C condition. Maximum line regulation is listed at 96 mV, while maximum load regulation is 144 mV. The power supply also provides overcurrent and overvoltage protection.

The official product page gives the physical package as approximately 120 mm wide × 92 mm high × 190 mm deep, with a typical weight of 1.9 kg.

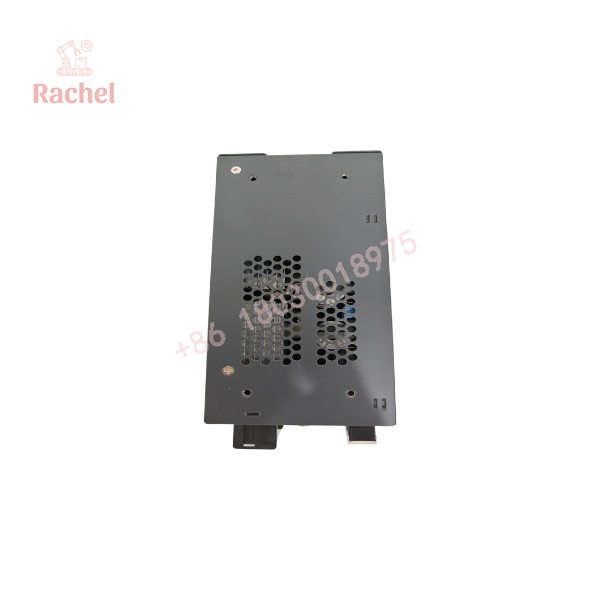

JWS300-24

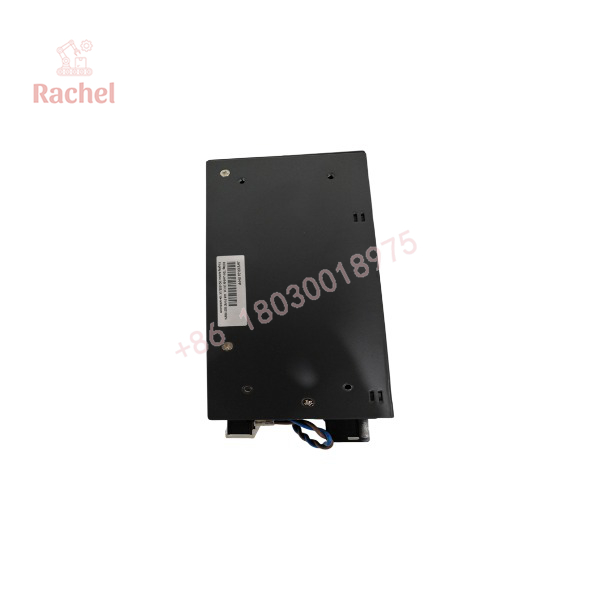

JWS300-24

Field Application & the “Trench” Experience

A JWS300-24 failure can be deceptively disruptive. The downstream PLC, sensors, relays, solenoids, or control electronics may all remain individually healthy, yet the entire control cabinet becomes unreliable because the 24 VDC rail is sagging or intermittently dropping out.

Consider a legacy machine with several hundred watts of 24 VDC demand. The original JWS300-24 begins showing increased output ripple and eventually trips under peak load. The maintenance team does not need to redesign the cabinet; they need a correctly identified replacement capable of delivering the original 24 V/14 A output.

Typical applications include:

1. PLC and industrial-control cabinet power
2. Factory automation equipment
3. Machine-tool control systems
4. Instrumentation and electronic equipment
5. Legacy control cabinets requiring a 336 W 24 VDC supply

The JWS series is a chassis-mounted enclosed supply family, and TDK’s documentation identifies the JWS300 as a 300 W-class product family.

Transparency SOP: QA & Testing

For New Surplus or Refurbished JWS300-24 inventory, testing should cover more than output voltage at no load.

Identification

• Confirm TDK-Lambda JWS300-24.
• Check the nameplate and production markings.
• Confirm that the unit is not a /PV, /508, or another special variant unless specifically required.

Electrical inspection

• Inspect AC input terminals.
• Inspect DC output terminals.
• Check wiring and terminal insulation.
• Examine the cooling fan and airflow path.
• Look for heat discoloration or capacitor leakage.

Functional test

1. Apply a controlled AC input within the specified range.
2. Measure no-load output.
3. Apply progressively increasing DC load.
4. Verify output regulation.
5. Monitor ripple/noise.
6. Test overcurrent behavior.
7. Operate the unit at sustained load and monitor temperature.

For critical industrial applications, testing near the intended operating load is preferable to simply confirming that the supply produces 24 VDC.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating HWS300-24 as a drop-in replacement.

TDK officially recommends HWS300-24 as an alternate product, but the manufacturer explicitly states that interchangeability is not guaranteed. Check mounting, terminal arrangement, electrical characteristics, and system requirements before making the substitution.

⚠️ Trap #2 — Confusing JWS300-24 with JWS300-24/PV.

The /PV variant provides external voltage control of the output. It is not simply another way of writing the standard JWS300-24. TDK lists the /PV version separately.

⚠️ Trap #3 — Ignoring the cooling requirement.

The JWS300-24 uses forced-air cooling. A replacement installed in a cabinet with a failed fan or restricted airflow may pass initial testing and then shut down under sustained load.

PRO TIP: When replacing an installed unit, photograph the entire nameplate and terminal layout. If the label says /508, /PV, or another suffix, that suffix belongs in the purchasing specification.

Dynamic FAQ

What is TDK JWS300-24?

The is a TDK-Lambda enclosed AC-DC power supply providing 24 VDC at up to 14 A, with a maximum rated output of 336 W.

What input voltage does it accept?

The unit accepts 85–265 VAC single-phase input and 120–330 VDC input. The AC input frequency range is 47–63 Hz.

Is the JWS300-24 still manufactured?

No. TDK lists it as obsolete. The official lifecycle record states a final purchase-order date of December 2, 2019, and final shipment date of June 30, 2020.

What is the recommended replacement?

TDK recommends HWS300-24, but explicitly warns that interchangeability is not guaranteed. The replacement should therefore be evaluated against the existing installation rather than substituted solely by power rating.

Is JWS300-24/PV the same unit?

No. The /PV model is a separate variant with externally controlled output voltage. TDK lists it separately from the standard JWS300-24.

Is New Surplus JWS300-24 a reasonable spare?

Yes. Because the JWS300-24 is obsolete, verified New Surplus stock can be particularly useful for maintaining existing equipment without redesigning the power section. The unit should be tested under load before installation.

What warranty should I request?

For New Surplus or refurbished stock, request coverage for AC startup, 24 VDC output regulation, full-load operation up to 14 A, ripple/noise performance, protection behavior, cooling-fan operation, and sustained-load thermal performance. A no-load power-on test is not enough for a 336 W industrial power supply.
