TRICONEX 3481 4–20 mA Safety Analog Output Module

Description

Product Introduction & Engineering Value

I’ve seen plenty of shutdown investigations where technicians replaced transmitters, recalibrated valves, and even rewrote control logic before discovering the analog output module was the real culprit. The 3481 has been a dependable choice because it continuously verifies its own output path instead of simply transmitting a current signal.

The TRICONEX 3481 is a TMR analog output module designed for the Trident Safety System. It delivers accurate 4–20 mA outputs while continuously monitoring channel health through built-in diagnostics, making it suitable for Safety Instrumented Systems (SIS) that demand predictable analog control performance.

Technical Specifications

Field Application & The “Trench” Experience

During a turnaround at a petrochemical plant, engineers noticed one control valve hunting despite stable PID tuning and a recently calibrated positioner. Oscilloscope measurements showed occasional current deviations from one analog output channel. After replacing the TRICONEX 3481, the valve stabilized immediately, and the SIS passed proof testing without further intervention. The field devices were never the problem—the output module was.

Typical applications include:

• Burner fuel valve positioning in Boiler Management Systems
• Catalytic Cracking Unit feed flow control
• Emergency depressurization valve modulation
• Steam turbine governor analog command outputs
• Safety-rated chemical dosing systems

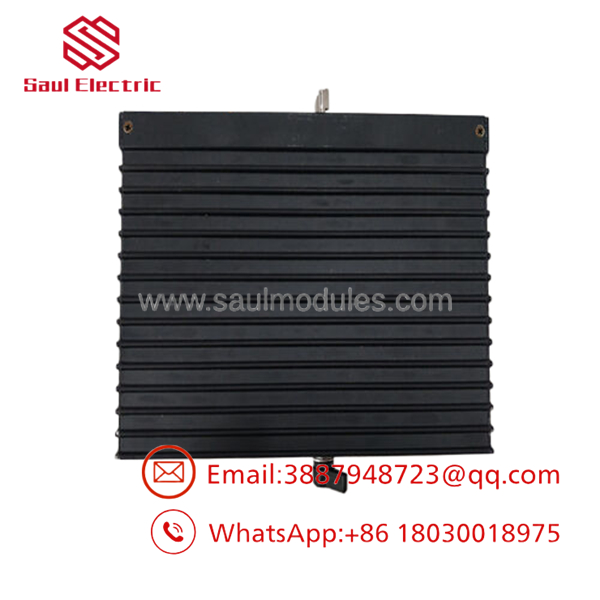

3481

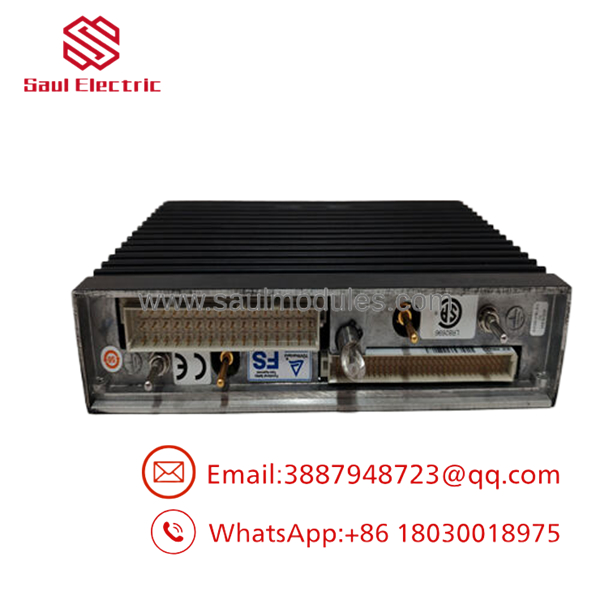

3481

Transparency SOP: QA & Testing

Every New Surplus or professionally refurbished 3481 module undergoes documented verification before shipment.

• ✔ Visual inspection for PCB damage, connector wear, contamination, and corrosion.
• ✔ EEPROM and hardware identification verification.
• ✔ Installation in a compatible Trident test chassis.
• ✔ Functional verification of all four analog output channels across the operating range.
• ✔ Accuracy check using calibrated precision current measurement equipment.
• ✔ Forced-Switch Diagnostic (FSD) verification and alarm confirmation.
• ✔ Final ESD-safe packaging with serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t overlook loop power.
Many output problems blamed on the 3481 are actually caused by insufficient external loop voltage once cable resistance and valve positioner load are included.

⚠️ Verify baseplate compatibility.
The 3481 is designed for specific Trident analog output baseplates. Installing the correct module in the wrong termination assembly can delay commissioning.

PRO TIP:
Before replacing the module, force a known output value (for example, 12 mA or 16 mA) and measure the actual loop current with a calibrated meter. This quickly distinguishes a module fault from wiring or actuator problems.

⚠️ Calibrate the field device after replacement.
Even when the module passes diagnostics, many control valves require loop verification after hardware replacement to eliminate accumulated offset errors.

Dynamic FAQ

Q1. How many analog outputs does the TRICONEX 3481 provide?

The module provides four common-return analog output channels, each designed for 4–20 mA process control signals.

Q2. Does the 3481 support output diagnostics?

Yes. It includes Forced-Switch Diagnostics (FSD) and internal monitoring circuitry to verify proper output operation and help detect latent faults.

Q3. Is the 3481 intended for standard DCS applications?

While it can generate standard 4–20 mA signals, it is specifically designed for Trident Safety Instrumented Systems (SIS) where fault tolerance and diagnostics are required.

Q4. What does “New Surplus” mean?

New Surplus indicates an unused OEM-manufactured module that has remained in inventory. It has not been placed into field service but should still undergo complete functional testing before shipment.

Q5. Can this module directly power field devices?

No. The analog loop requires an external DC power source sized appropriately for the connected load and cable resistance. The module controls loop current rather than serving as the primary field power supply.

Q6. Is a warranty available?

Most qualified industrial automation suppliers provide warranty coverage for both New Surplus and professionally refurbished 3481 modules after inspection, functional testing, and documentation.
