Triconex 3009X Tricon CX Main Processor Module

Description

Product Introduction

The Triconex 3009X is the Main Processor (MP) for the Tricon CX Safety Instrumented System (SIS). Installed in the 8120X Main Chassis, three identical 3009X processors operate simultaneously—one in each TMR channel—to independently execute safety logic, exchange data, and perform hardware voting for fault-tolerant operation.

Compared with earlier processors such as the 3008/3009, the 3009X introduces the Tricon CX hardware platform with substantially higher processing performance, expanded memory, Gigabit TriBus communication, and Ethernet-based chassis expansion. It is intended for high-availability SIL-rated applications where continuous operation is a design requirement.

Key Technical Specifications

Important: The 3009X is designed specifically for the Tricon CX platform and 8120X Main Chassis. It is not a plug-in replacement for legacy Tricon 3008/3009 processors used in earlier controller generations. Verify hardware generation and firmware compatibility before installation.

Application Scenarios & The “Trench” Experience

Here’s something every SIS engineer eventually learns.

A processor alarm doesn’t always mean the processor has failed.

One offshore platform experienced intermittent processor diagnostics during compressor startup. Maintenance prepared to replace the MP module immediately. After reviewing diagnostics, the actual cause turned out to be an unstable redundant power supply that was producing brief voltage dips. The processor was simply reporting the problem—not causing it.

That’s why experienced engineers read the event log before ordering hardware.

Typical Applications

Oil & Gas — Emergency Shutdown (ESD) Systems — Executes SIL safety logic for production facilities.

LNG Plants — Compressor Protection — Processes overspeed, surge, and shutdown algorithms.

Refineries — Burner Management Systems — Maintains continuous execution of combustion safety logic.

Power Generation — Turbine Protection — Performs redundant turbine trip calculations with hardware voting.

Chemical Processing — Reactor Safety Systems — Coordinates critical shutdown functions in hazardous processes.

Field Replacement Example

During a refinery turnaround, one processor channel repeatedly reported internal diagnostics while the remaining two channels maintained normal controller operation. Engineers confirmed identical firmware revisions, replaced only the affected 3009X, synchronized the controller using the engineering workstation, and completed functional testing before returning the SIS to service. No application logic changes were required, and the remaining controller hardware stayed in operation throughout the maintenance window permitted by plant procedures.

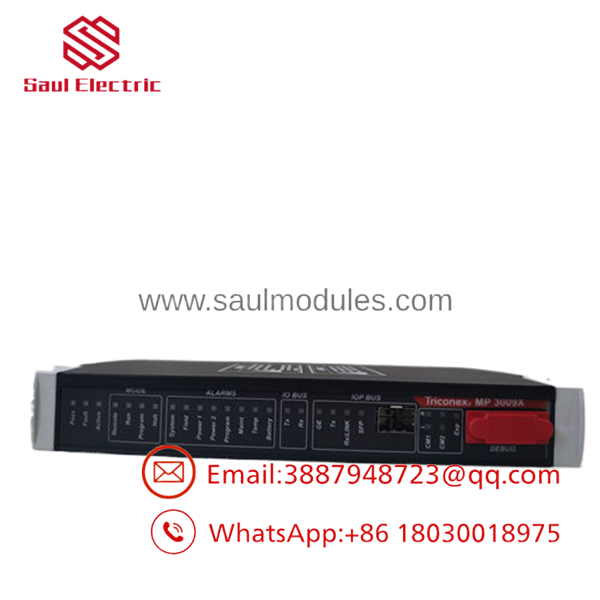

3009X

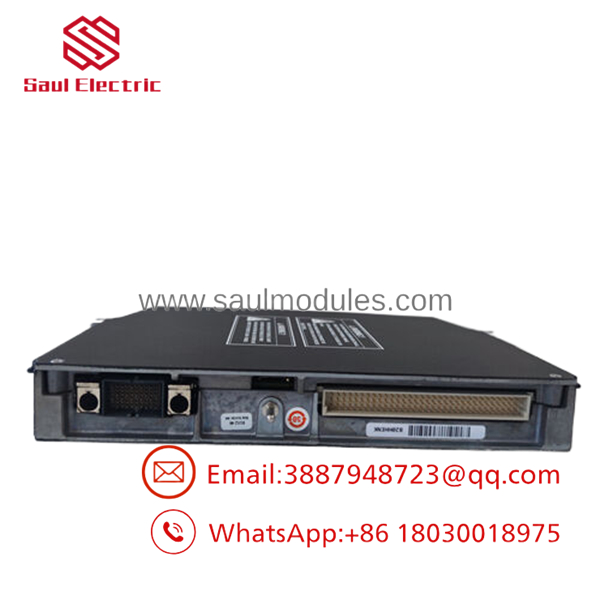

3009X

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Tricon CX hardware whenever compatible equipment is available.

• Inbound Inspection
  • Verify Schneider Electric identification labels
  • Inspect PCB, connectors, and shielding
  • Check for corrosion, contamination, or repair history
• Live Rig Testing
  • Install into an 8120X chassis
  • Verify processor boot sequence
  • Confirm TriBus communication
  • Verify diagnostic LEDs
  • Confirm controller recognition
• Electrical Parameter Checks
  • Input power verification
  • Internal voltage rail measurements
  • Connector continuity inspection
• Firmware Verification
  • Record firmware revision
  • Record hardware revision
  • Verify compatibility with customer controller version
• Final QC & Anti-static Packaging
  • Functional inspection
  • Anti-static moisture-barrier packaging
  • Protective industrial cushioning
  • Serialized inventory tracking
  • 12-month warranty documentation

The Veteran’s Tech Trap Guide

⚠️ Don’t Mix Processor Generations

The 3009X belongs to the Tricon CX family. It cannot simply replace a legacy 3008 or 3009 processor in an older Tricon chassis. Always verify the chassis model first.

⚠️ All Three MPs Must Match

Install processors with compatible hardware and firmware revisions. Mixing revisions can result in synchronization faults or prevent the controller from entering normal operation.

❗Read the Diagnostics Before Swapping Hardware

Power supply instability, backplane faults, or communication issues frequently trigger processor alarms. The MP may be reporting another subsystem’s problem.

⚠️ Follow Approved Online Replacement Procedures

Although the TMR architecture is fault tolerant, replacing a processor temporarily reduces system redundancy. Perform online maintenance only in accordance with Schneider Electric documentation and your site’s Management of Change (MOC) procedures.

Frequently Asked Questions (FAQ)

Q1. Is the Triconex 3009X the CPU of the Tricon CX system?

Yes. The 3009X is the Main Processor responsible for executing safety logic, diagnostics, and system communications. Every controller requires three identical processor modules operating in a Triple Modular Redundant architecture.

Q2. Which chassis supports the 3009X?

The 3009X is designed for the 8120X Main Chassis used by the Tricon CX platform. It is not intended for earlier Tricon main chassis models.

Q3. Can I replace a 3008 or 3009 with a 3009X?

Generally, no. The 3009X is part of the Tricon CX architecture and requires compatible hardware, chassis, and firmware. Migration from earlier Tricon systems typically involves platform-specific hardware changes rather than a simple processor swap.

Q4. Does the 3009X support online replacement?

The processor is designed for use in a fault-tolerant TMR system, but online replacement should only be performed according to Schneider Electric’s approved maintenance procedures and plant operating policies. During replacement, redundancy is temporarily reduced.

Q5. Why is firmware compatibility important?

Processor firmware affects synchronization, diagnostics, and communication. Before installing a replacement, verify the hardware revision, firmware revision, and controller software version to avoid commissioning issues.

Q6. Why is surplus inventory less expensive than buying directly from the OEM?

Most surplus units originate from canceled capital projects, strategic spare inventories, or modernization programs. Lower pricing reflects the procurement source rather than reduced operating capability.

Q7. Is every processor tested before shipment?

Yes. Every unit undergoes visual inspection, power-up verification, processor diagnostics, communication testing, firmware identification, and final quality inspection before anti-static packaging.

Veteran’s advice: In SIS maintenance, resist the temptation to replace the processor as soon as a fault LED appears. Review the diagnostic history, check redundant power supplies, inspect the backplane, and verify communication health first. More than once, we’ve seen a perfectly healthy processor blamed for a problem that started somewhere else in the controller.
