Triconex 3664 Digital Output Module

Description

Product Introduction

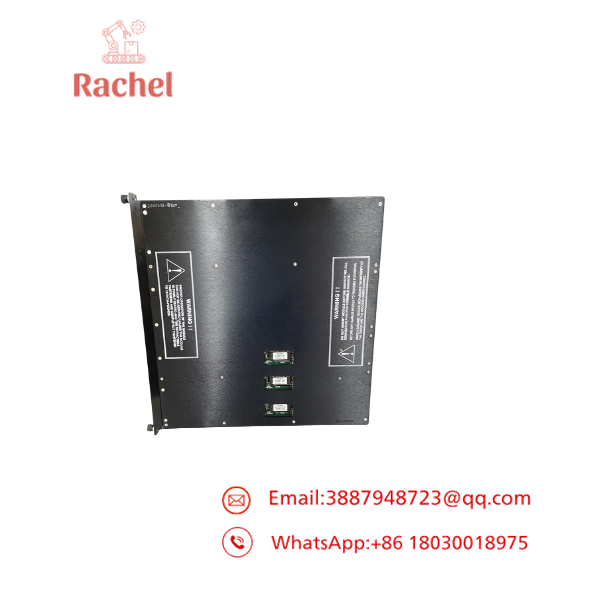

The Triconex 3664 is a heavy-duty 24 VDC Dual Digital Output Module engineered for the industry-standard Tricon Triple Modular Redundant (TMR) safety system. Designed specifically for high-integrity emergency shutdown (ESD), fire and gas monitoring, and burner management systems (BMS), the 3664 delivers uncompromising output reliability where a single logic failure could trigger a catastrophic facility trip or safety breach.

What sets the 3664 apart is its internal fault-tolerant architecture. Utilizing a quadruple-switch output circuit across three independent legs, the module continuously tests its own internal switches without interrupting signal flow to critical field devices like emergency shutdown valves (ESVs) or trip relays. It bridges the gap between ultra-fast fault detection and zero-tolerance false-trip prevention.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 3:15 AM on a sub-zero night at an offshore gas processing plant. A false output trip on a legacy output card drops a high-pressure compressor, causing a severe flare event and risking hundreds of thousands of dollars per hour in lost throughput. The graveyard shift instrument tech has to swap out the fault-indicated card without taking down the remaining active channels or tripping the voting logic on the active Tricon rack.

• Oil & Gas Offshore Platforms – Emergency Shutdown Systems (ESD) – Controls critical isolation valves that must stay energized during normal production and trip instantly on command.
• Chemical Processing Facilities – Interlock & Deluge Control – Actuates high-capacity fire suppression solenoids across classified hazardous zones.
• Refining Operations – Burner Management Systems (BMS) – Controls main fuel gas safety shutoff valves on high-temperature utility boilers.

During a scheduled turnaround at an ethylene plant, a rogue voltage surge on an ungrounded 24V loop damaged two output transistors on an older DO card. Because the plant utilized Triconex 3664 modules on the ESD rack, the internal TMR voting logic isolated the faulted leg, logged the alarm in Tristation 1131, and allowed the plant to safely run on two legs while the tech dropped in a replacement module without interrupting production.

3664

Transparency SOP: Quality Assurance & Testing

We test every Triconex 3664 safety card under real load before it leaves our facility. Here is our direct testing SOP:

1. Inbound & Anti-Counterfeit Verification: Inspect the PCB solder masks, backplane pin connectors, serial block tags, and housing locks against OEM manufacturing standards.
2. Backplane Power-Up Test: The module is seated into a powered Tricon main chassis to verify power rail stability and initial POST (Power-On Self-Test) handshakes.
3. TriStation Communication Handshake: We establish communication via TriStation 1131 to confirm module recognition, slot addressing, and clean health status reporting.
4. Full 32-Channel Load Testing: Every output point is loaded at 0.5A @ 24 VDC using automated test rigs to test full switch closure, voltage drop, and off-state leakage currents.
5. Fault Injection & TMR Diagnostic Test: We force leg-fault scenarios to verify that internal diagnostics correctly trigger the module fault LED and report backplane alerts without dropping the output state.
6. ESD Packaging: Cleaned, pass-verified modules are sealed into heavy-gauge anti-static bags and custom foam box enclosures.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do not force the module into the slot! The backplane pins on Tricon chassis can bend if the card isn’t aligned squarely on the top and bottom guide rails. Slide it smoothly until the top and bottom metal levers engage, then lock them simultaneously.
• ❗ Match your External Termination Panels (ETP). The 3664 requires compatible Triconex field termination assemblies (such as the 9662-810 series). Using an incompatible or non-supervised ETP will throw continuous field-loop fault alarms in TriStation even if the 3664 module itself is healthy.
• ⚠️ Check your field load current. The 3664 is rated for 0.5 Amps per channel. Inductive loads like heavy solenoid valves can draw massive inrush currents on startup. Always verify that flyback suppression diodes are installed across inductive loads at the field device to protect the internal MOSFET switches.
• ❗ Verify slot keying prior to insertion. Before pushing a replacement 3664 into a live slot, verify that the mechanical keys on the backplane slot match the module. Inserting a 3664 into a slot keyed for an AI or DI card can damage the backplane connectors.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I hot-swap the Triconex 3664 while the safety system is active?

A: Yes. The Tricon chassis supports full online hot-replacement of output modules. When inserted into the adjacent slot of a dual-module position, the new 3664 automatically undergoes self-tests, syncs with the active main processors, and takes over its portion of the output voting logic.

Q: What is the primary difference between the 3664 and single-point DO cards like the 3604E?

A: The 3664 utilizes a dual/quadruple switch arrangement designed specifically for 24 VDC applications requiring higher fault tolerance and supervised field wiring detection, whereas standard DO cards may lack the enhanced dual circuit redundancy on every channel.

Q: How do I handle a “Module Fault” yellow light on the front panel?

A: A yellow fault light indicates an internal leg failure or a failed diagnostic self-test. The module is designed to safely run on its remaining healthy channels, but you should pull the diagnostic logs in TriStation 1131, identify the failed leg, and schedule an online module swap as soon as possible.

Q: Are these units brand new or surplus?

A: We stock both New Surplus (factory sealed in original OEM packaging) and fully reconditioned/certified units. Every single card, regardless of condition code, undergoes our 100% full-load rig test before shipping.

Q: What warranty comes with this module?

A: All Triconex 3664 modules sold by us come standard with a comprehensive 12-month replacement warranty covering any operational or hardware failure under normal operating conditions.
