Triconex 2401 DO2401 Digital Output Baseplate Kit

Description

Product Introduction

The Triconex 2401 (DO2401) is a Digital Output Baseplate Kit designed for the Trident Safety Instrumented System (SIS). It provides the physical mounting platform, field wiring interface, and backplane connections required for digital output modules operating in safety-critical control systems. The standard 2401 kit consists of the I/O baseplate, I/O interconnect assembly, slot cover, and terminal cover.

Unlike an output module, the 2401 does not switch field loads or execute logic. Its responsibility is to maintain dependable electrical connections between the Trident controller and field devices. In SIL-rated systems, connector integrity and backplane reliability are just as important as the output electronics themselves.

Key Technical Specifications

Important: The 2401 is a baseplate kit, not a digital output module. It is designed for the Trident platform and should not be confused with Tricon main chassis baseplates or processor assemblies. Verify the associated output module and hardware revision before ordering.

Application Scenarios & The “Trench” Experience

Here’s a failure that’s easy to overlook.

An emergency shutdown system suddenly reports intermittent digital output faults. The output module passes diagnostics, field wiring checks out, and relay panels appear healthy. After hours of troubleshooting, the maintenance team discovers worn contacts on the digital output baseplate caused by years of vibration and repeated module replacements.

The output electronics weren’t the problem.

The passive hardware was.

Typical Applications

Oil & Gas — Emergency Shutdown (ESD) Systems — Interfaces safety output modules with shutdown valves and field relays.

Refineries — Burner Management Systems (BMS) — Provides reliable digital output connections for burner trip circuits.

Chemical Processing — Process Safety Systems — Supports SIL-rated shutdown logic controlling field actuators.

Power Generation — Turbine Protection Systems — Connects digital outputs controlling trip solenoids and protective relays.

LNG Facilities — Critical Process Isolation — Maintains dependable output connections in high-availability safety systems.

Field Replacement Example

During a scheduled turnaround at a petrochemical complex, technicians observed intermittent output failures affecting several shutdown valves. Digital output modules were tested in another chassis and operated normally. Inspection of the installed DO2401 revealed damaged connector contacts and mechanical wear. Replacing the 2401 baseplate, reinstalling the existing modules, and completing loop testing restored normal operation without replacing any output electronics.

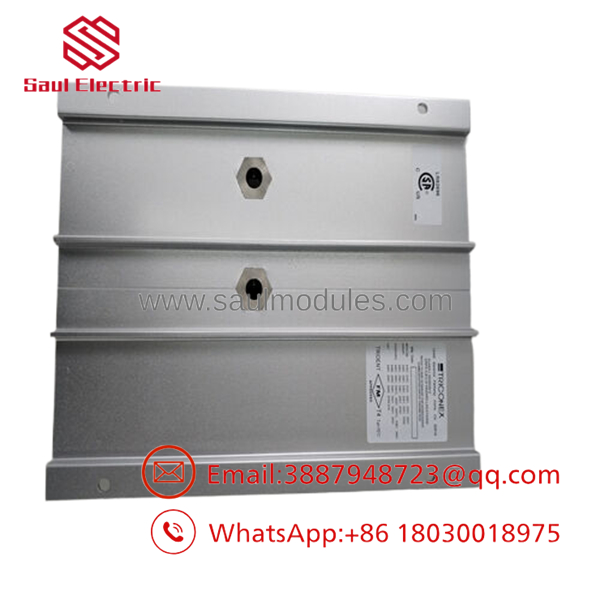

2401

2401

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Triconex/Trident hardware whenever compatible test equipment is available.

1. Inbound Inspection

• Verify Schneider Electric/Triconex identification labels
• Inspect backplane connectors and terminal blocks
• Check PCB for cracks, contamination, or corrosion
• Confirm mounting hardware integrity

2. Live Rig Testing

• Install in a compatible Trident chassis
• Verify module insertion and retention
• Confirm backplane communication
• Validate field connector engagement
• Check mechanical alignment

3. Electrical Parameter Checks

• Connector continuity testing
• Backplane resistance verification
• Ground continuity inspection
• Terminal isolation checks

4. Hardware Verification

• Record hardware revision
• Verify kit components are complete
• Confirm compatibility with installed digital output modules

5. Final QC & Anti-static Packaging

• Final visual inspection
• Anti-static moisture-barrier packaging
• Industrial shock-resistant cushioning
• Serialized inventory tracking
• 12-month warranty documentation

The Veteran’s Tech Trap Guide

⚠️ Don’t Replace the Output Module First

If several output channels fail intermittently, inspect the baseplate before ordering new electronics. Connector wear can create faults that closely resemble a defective output module.

⚠️ Check Every Terminal Connection

Loose field wiring can produce nuisance trips that appear to be controller failures. Torque every terminal according to the maintenance procedure.

❗Inspect for Mechanical Wear

Repeated insertion and removal of output modules eventually wears connector contacts. Even minor damage can introduce intermittent faults under vibration.

⚠️ Verify the Correct Baseplate Version

The Trident platform includes multiple baseplate variants such as 2401, 2401L, and 2402 for different output configurations. They are not interchangeable. Always confirm the complete kit number before installation.

Frequently Asked Questions (FAQ)

Q1. Is the Triconex 2401 a digital output module?

No. The 2401 (DO2401) is a digital output baseplate kit. It provides the mounting, field termination, and backplane interface for the output module but does not generate output signals itself.

Q2. What is included in the 2401 kit?

The standard kit includes:

• I/O Baseplate
• I/O Interconnect Assembly
• Slot Cover
• Terminal Cover

These components form the complete baseplate assembly for compatible Trident digital output modules.

Q3. Can the baseplate be replaced while the system is energized?

No. Replacement should normally be carried out during a planned shutdown with the safety system de-energized, following the site’s approved maintenance procedures.

Q4. What is the difference between 2401 and 2401L?

The 2401 is the standard digital output baseplate kit, while the 2401L is intended for low-current digital output applications. Confirm the required output module and field load before selecting a replacement.

Q5. Why is this part difficult to source?

The Trident platform is a mature SIS platform. Many available units come from strategic spare inventories, plant modernization projects, or professionally tested surplus stock.

Q6. Is every baseplate electrically tested?

Yes. Each unit undergoes connector inspection, continuity verification, chassis fit testing where compatible hardware is available, and final quality inspection before shipment.

Q7. How do I verify compatibility before ordering?

Confirm the following before purchasing:

• Part number (2401 / DO2401)
• Associated digital output module
• Hardware revision
• Trident chassis type
• Baseplate assembly number
• Terminal configuration

Veteran’s advice: When troubleshooting safety systems, don’t ignore passive components. A worn baseplate can cause intermittent digital output faults that mimic failed I/O modules. Inspect the connector surfaces carefully before replacing expensive electronics.
