Description
Product Introduction & Engineering Value
The TRICONEX 4000212-020L is a four-channel analog input module associated with the Tricon 3625L architecture. It converts field transmitter signals into digital process values for the Tricon controller, making it suitable for measurement loops where pressure, temperature, level, flow, or other analog process variables must be brought into the SIS.
The “-020L” suffix should be matched exactly during replacement. Third-party listings also contain contradictory descriptions of this part number, including one that calls it a safety-system main processor. For procurement and technical documentation, the module identification should therefore be confirmed against the physical label and Tricon system documentation rather than relying on a generic marketplace title.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | TRICONEX |
| Part Number | 4000212-020L |
| Module Model | Tricon 3625L |
| Module Type | Analog Input |
| Number of Channels | 4 |
| Current Input | 4–20 mA |
| Voltage Input | 1–5 VDC |
| A/D Resolution | 16-bit |
| Input Impedance | 250 Ω in current mode; 1 MΩ in voltage mode |
| Reported Accuracy | ±0.1% of span |
| Reported Isolation | 1500 VDC, channel-to-bus |
| Diagnostics | Wire-break / open-circuit / short-circuit monitoring |
| Reported Power Consumption | 1.5 W per module |
| Reported Operating Temperature | 0 °C to +60 °C |
The specifications above come primarily from an industrial spare-parts listing and should be treated as catalog-level identification data, not a substitute for the applicable Tricon hardware manual or safety certification documentation.

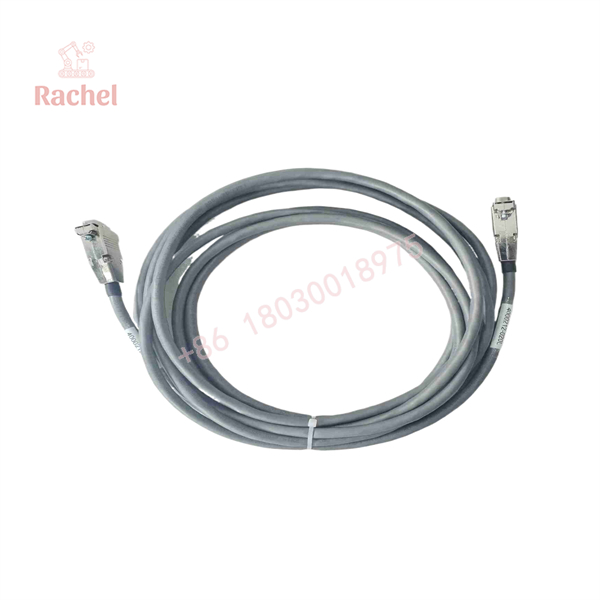

4000212-020L
Field Application & the “Trench” Experience
A typical plant problem is not dramatic at first: one transmitter begins reporting an implausible value, followed by intermittent diagnostics on another channel. An engineer checks the transmitter loop, junction box, shield termination, and field wiring before condemning the Tricon I/O hardware.
With 4000212-020L, the useful diagnostic approach is channel-by-channel. The module is reported to support four analog channels with wire-fault monitoring, allowing the technician to distinguish a field-loop problem from a module-level problem before replacing an expensive SIS component.
Specific application scenarios
- Reactor pressure monitoring: 4–20 mA pressure transmitters feeding safety-related process measurements.
- Boiler drum level measurement: analog transmitter signals entering the Tricon SIS for protective logic.
- Compressor discharge monitoring: pressure or temperature transmitters connected to dedicated analog-input channels.
- Process flow protection: 4–20 mA flow-transmitter inputs used as permissive or trip-related process variables.
Transparency SOP: QA & Testing
For New Surplus inventory, the receiving process should be structured around exact identification:
1. Part-number verification
Confirm 4000212-020L on the module label and record any additional revision or date codes.
2. Mechanical inspection
Check the housing, connector interface, terminal arrangement, PCB area, retaining hardware, and labels for physical damage.
3. Channel verification
Confirm that the module is the four-channel analog-input variant rather than a visually similar Tricon module.
4. Controlled functional test
Where an approved Tricon test environment is available, verify module recognition, channel diagnostics, analog signal acquisition, and communication with the controller.
5. Loop validation
After installation, apply known test signals and compare the displayed values with the approved engineering range and calibration records.
For a safety instrumented system, a simple power-on test should not be presented as a complete acceptance test.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Verify the exact module number.
The web contains conflicting descriptions for 4000212-020L. One source identifies it as the Tricon 3625L analog input module, while another labels the same number as a main processor. That conflict is enough reason to verify the physical nameplate before purchasing.
⚠️ Trap #2 — Don’t assume every Tricon analog input is interchangeable.
A four-channel analog module is not automatically interchangeable with another Tricon analog-input model. Check channel count, input range, termination arrangement, system revision, and approved hardware configuration.
PRO TIP: Record the existing module’s complete label before removal. Photograph the module face, part number, rack position, neighboring modules, and termination wiring.
⚠️ Trap #3 — 4–20 mA and 1–5 VDC are not the same installation.
The available specification lists both input types, but the actual transmitter configuration and system configuration must be verified before wiring. Do not assume that changing the field transmitter automatically requires no configuration changes.
Dynamic FAQ
What is TRICONEX 4000212-020L?
It is identified by current industrial spare-parts documentation as a Tricon 3625L four-channel analog input module.
How many analog inputs does it provide?
The referenced specification lists four analog input channels.
What signals can it accept?
The available listing specifies 4–20 mA and 1–5 VDC input signals from field transmitters.
Is it a Tricon processor?
The available evidence is contradictory: one listing calls 4000212-020L a main processor, while another specifically identifies it as the 3625L analog input module. For a product page, the module should be identified from the physical label and authoritative Tricon documentation before treating either description as definitive.
What should I verify before ordering a replacement?
Verify the complete 4000212-020L part number, module label, rack position, associated Tricon chassis, termination arrangement, channel configuration, and the required analog signal type.
Is New Surplus the same as refurbished?
No. New Surplus generally means unused inventory outside the normal current-production supply chain. Refurbished equipment has undergone some form of inspection, repair, or reconditioning. The supplier should state the actual condition and warranty terms.
What warranty information should I request?
Ask for the warranty period, DOA policy, return conditions, and the stated stock condition. For a Tricon SIS component, also request confirmation that the supplied unit is the exact 4000212-020L configuration rather than a visually similar Tricon module.
