Product Introduction & Engineering Value
A safety system can only make a sound process decision if its field measurements are trustworthy. The Triconex AI3281 provides a high-density analog-input interface between field transmitters and the Tricon control architecture, with 32 channels reported for the module and support for common industrial analog signals including 4–20 mA.
The important engineering feature is its integration with the Tricon TMR architecture. Field measurements are acquired through redundant processing paths and passed through the Tricon architecture for fault-tolerant evaluation. This makes the AI3281 fundamentally different from an ordinary PLC analog-input card.
Technical Specifications
| Parameter | AI3281 |
|---|---|
| Manufacturer | Triconex |
| Model | AI3281 |
| Module Type | Analog Input |
| Channel Count | 32 |
| Typical Input Signal | 4–20 mA |
| Architecture | TMR |
| Operational Current Range | Sources report up to approximately 0–22 mA |
| Resolution | Reported as 12-bit by Tricon-family reference material |
| Accuracy | Approximately 0.15% full scale reported by secondary sources |
| Diagnostics | Channel and module fault diagnostics |
| System Interface | Tricon I/O bus / backplane architecture |
| Typical Applications | SIS, ESD, process measurement and safety monitoring |
Important specification note: Publicly indexed sources contain conflicting technical descriptions for AI3281, including different channel counts and signal specifications. The most consistent current product listings identify AI3281 as a 32-channel Tricon analog-input module.
One particularly useful Tricon-family reference describes the redundant analog-input architecture: the three acquisition paths independently measure field signals, pass their values toward the respective main processors, and the Tricon TMR architecture uses the appropriate voted value.
For procurement or safety-system replacement, the exact module label, hardware revision, termination arrangement, and existing Tricon system revision should be verified before installation.

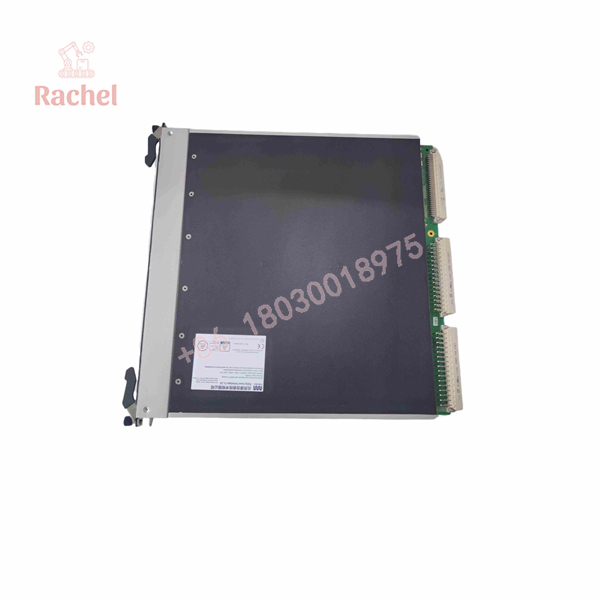

AI3281

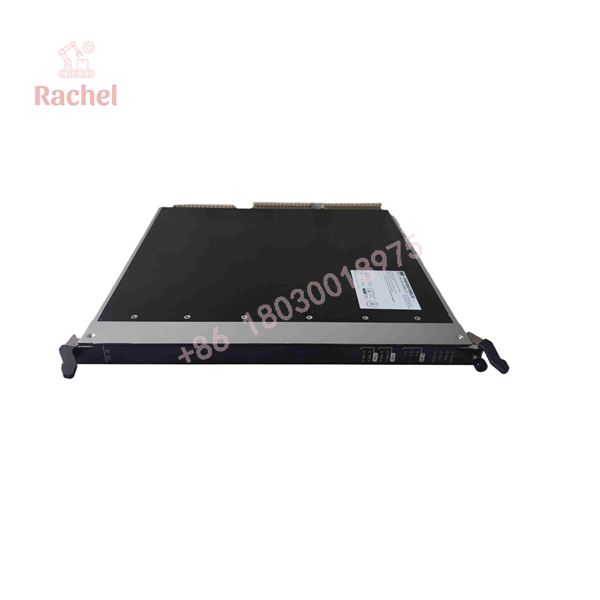

AI3281
Field Application & the “Trench” Experience
Consider a refinery emergency-shutdown rack monitoring dozens of pressure and flow transmitters. One analog input module begins reporting diagnostic faults. The problem is not simply a bad measurement card: removing the wrong module or installing a non-equivalent variant can affect the I/O architecture, termination wiring, and safety-system configuration.
With an exact replacement, the maintenance team can preserve the established Tricon I/O arrangement rather than redesigning the entire analog measurement layer. Before returning the rack to service, engineers would verify channel assignments, transmitter loop wiring, termination hardware, diagnostic status, and the application’s configured scaling.
Specific application scenarios
- Hydrocracker reactor pressure monitoring — 4–20 mA pressure transmitters feeding SIS shutdown logic.
- Distillation column high-temperature protection — analog temperature measurements used as permissive or trip inputs.
- Gas compression train monitoring — suction/discharge pressure and process-temperature transmitters connected to the safety system.
- Pipeline pump-station ESD — multiple pressure and flow transmitters collected through a high-density Tricon analog I/O rack.
- Boiler and turbine protection — process measurements requiring redundant acquisition and safety-system diagnostics.
These applications align with the broader use of Tricon analog I/O in SIS, process safety, oil and gas, petrochemical, and power-generation systems.
Transparency SOP: QA & Testing
For New Surplus or refurbished AI3281 inventory, a meaningful inspection should cover more than the front-panel LEDs.
1. Part-number verification
Confirm the AI3281 marking, serial information, hardware revision, and associated termination equipment.
2. Physical inspection
Check the PCB enclosure, connector interface, locking mechanism, terminals, labels, and signs of corrosion or previous field installation.
3. Electrical inspection
Verify appropriate supply/backplane behavior and inspect representative analog-input circuits. For used inventory, check for abnormal resistance, damaged input components, or evidence of electrical overstress.
4. Channel verification
Where the appropriate Tricon test environment is available, simulate representative analog signals and verify that the expected input values are correctly reported.
5. Diagnostic verification
Check module and channel diagnostics, including simulated open-loop or abnormal-input conditions where supported by the applicable test procedure.
6. Documentation check
Record the hardware revision and test results. For a safety-system spare, retaining the test record with the procurement documentation is worthwhile.
Tricon analog input modules use automatic calibration and redundant acquisition architecture; secondary technical documentation also describes extensive diagnostics for identifying module and channel faults.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing AI3281 with an ordinary 4–20 mA input card.
It is tempting to compare the AI3281 with a standard PLC analog-input module simply because both handle 4–20 mA signals. That misses the important part: AI3281 belongs to a Tricon safety architecture with redundant processing and diagnostics. A conventional PLC AI card is not a functional substitute.
⚠️ Trap #2 — Ignoring the termination arrangement.
The module itself is only one part of the field I/O path. Verify the associated termination panel, field wiring, channel assignment, and rack configuration before swapping hardware.
PRO TIP: Photograph the existing AI3281 and its termination assembly before removing it. Record every occupied channel and its corresponding transmitter tag. This is particularly useful when dozens of process transmitters terminate on the same rack.
⚠️ Trap #3 — Trusting an online specification without checking the actual hardware.
Several current web listings contain inconsistent AI3281 specifications. Some even incorrectly describe it as an analog output module.
For a safety-system replacement, the physical nameplate and original Tricon documentation should take precedence over generic marketplace descriptions.
Dynamic FAQ
What is the Triconex AI3281?
The AI3281 is a Triconex analog input module used within Tricon safety systems. Current industrial listings identify it as a 32-channel module for acquiring analog process signals.
Does AI3281 support 4–20 mA signals?
Yes. 4–20 mA is consistently identified as a supported analog signal for AI3281 in current industrial product references.
Is the AI3281 a TMR module?
AI3281 is associated with the Tricon TMR architecture. The Tricon analog-input architecture uses three independent acquisition paths, with the redundant system processing and voting the acquired data.
How many analog inputs does AI3281 have?
Current product references consistently describe the AI3281 as a 32-channel analog input module.
Can I replace an AI3281 with another analog input module?
Not on signal type alone. Verify the Tricon system generation, module hardware revision, termination panel, channel configuration, field wiring, and application configuration before approving a substitute. A generic 4–20 mA PLC input card should not be treated as a direct safety-system replacement.
What should I verify when buying New Surplus AI3281?
Request clear photographs of the actual AI3281 nameplate, serial number, hardware revision, connectors, and packaging. Also confirm whether the unit is genuinely unused surplus or refurbished, what testing was performed, and what warranty applies. For safety-critical inventory, a documented functional test is considerably more useful than a simple power-on confirmation.
