Product Introduction & Engineering Value

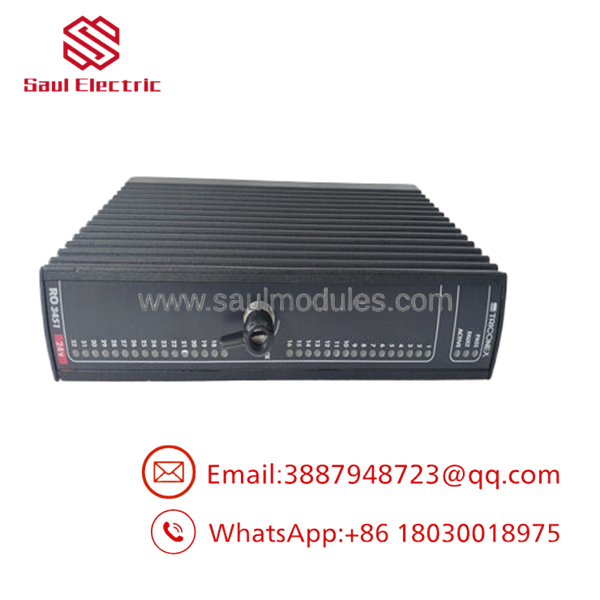

When an Emergency Shutdown (ESD) or Fire & Gas system needs to drop a trip solenoid or energize an interlock relay, output failure is not an option. The Triconex 3451 solid-state relay output module bridges the gap between Tricon’s Triple Modular Redundant (TMR) processing core and critical field actuators.
Each of the 3451’s 32 output channels receives command signals from three independent Main Processors. Internal quad-switch output circuitry votes on those commands before applying voltage to field loads, preventing a single switch short from causing an unintended trip or an open fault from failing on demand.
Technical Specifications
| Parameter | Specification |
| Output Channels | 32 points, commoned in pairs |
| Nominal Input Voltage | +24 VDC |
| Operational Voltage Range | Up to +30 VDC |
| Max Switching Voltage | +33 VDC peak |
| Max Nominal Current | 0.5 A per channel |
| Max Over-Current Limit | 0.7 A per channel |
| Max Switching Power | 12 W resistive |
| Off-State Leakage Current | <100 µA |
| Baseplate Voltage Drop | <0.25 V @ 0.5 A |
| Baseplate Fusing | 1 per output (0.75 A fast-acting) |
| Functional-to-Earth Isolation | 500 VDC minimum |
| Logic-Side Isolation | 800 VDC minimum |
Field Application & The “Trench” Experience
The Trench Story
A offshore platform processing unit experienced intermittent nuisance alarms on an automated blowdown valve assembly. Diagnostics pointed to a degraded solid-state output switch on an aging rack card that drifted high under high ambient enclosure temperatures. Rather than taking the safety loop offline, site technicians inserted a pre-tested surplus Triconex 3451 into the adjacent slot on the Tricon I/O chassis. The Tricon controller performed automatic background health checks, synchronized TMR output voting registers, and took over load driving smoothly—allowing the degraded module to be pulled without dropping a single valve or disturbing process operations.
Specific Field Application Scenarios
- De-ethanizer Column ESD Trips: Activating 24 VDC fuel gas isolation solenoid valves during emergency overpressure conditions.
- Boiler Management Systems (BMS): Controlling pilot gas ignition interlocks and main fuel trip (MFT) contactors.
- Compressor Deluge Control: Driving high-reliability alarm beacons, horns, and deluge valve actuation circuits in hazardous gas processing environments.
- 3451
- 3451
Transparency SOP: QA & Testing
- Step 1: Visual & Mechanical Inspection

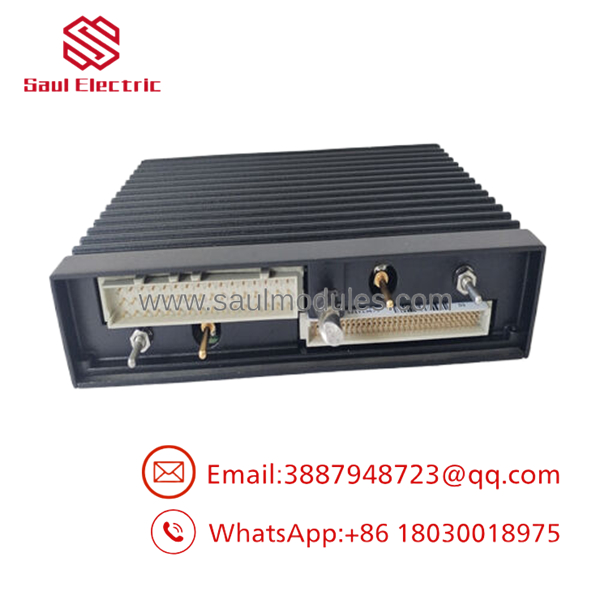

We inspect backplane edge connectors, PCB conformal coatings, trace paths, and structural guide rails for signs of thermal stress, corrosion, or pin bending.
- Step 2: Powered Rig Diagnostics
The 3451 is powered inside a live Tricon chassis system to confirm dual power rail health and active TriBus backplane communication.
- Step 3: Output Load & Leakage Testing
Every individual channel is loaded to 0.5 A nominal current while measuring forward voltage drop (<0.25 V) and verified in the OFF state to confirm off-state leakage stays below 100 µA.
- Step 4: Loop Back & Diagnostic Verification
Automated diagnostic routines verify that the module correctly reports internal switch states back to the Main Processors without triggering fault flags in TriStation 1131 software.
The Veteran’s Tech Trap Guide
⚠️ Baseplate Fast-Acting Fuse Selection: The 3451 relies on 0.75 A fast-acting fuses mounted directly on the field termination baseplate. Replacing a blown baseplate fuse with a standard slow-blow fuse compromises short-circuit protection and risks damaging the solid-state switching elements during a field wiring dead-short.
PRO TIP: Inductive Load Snubbing
While solid-state outputs feature fast switching, driving highly inductive loads (like heavy-duty 24 VDC interposing relays or large solenoids) without external flyback diodes will cause inductive voltage spikes. These spikes exceed the +33 VDC peak limit over time, leading to premature channel failure. Always install suppression diodes directly at the coil terminals.
⚠️ Paired Commoning Limits: Channels on the 3451 are commoned in pairs. If your loop drawings assume complete channel-to-channel electrical isolation for every single field point, double-check your field wiring land points before powering up to prevent unintended cross-channel ground loops.
Dynamic FAQ
Q: What is the main difference between solid-state relay output modules like the 3451 and mechanical relay output cards?
A: The 3451 uses solid-state switches rather than mechanical relay contacts. This offers virtually unlimited switching cycles, faster response times, and immunity to contact pitting, making it ideal for high-duty-cycle or high-reliability 24 VDC safety applications.
Q: Can I hot-swap a faulted 3451 in a live Tricon system?
A: Yes. Tricon I/O architecture fully supports online hot replacement. Slotted into a running chassis, the new module initializes, synchronizes its output state with the active Main Processors, and assumes load driving without interrupting process control.
Q: Are your surplus Triconex 3451 modules fully tested before dispatch?
A: Absolutely. Every module undergoes visual inspection, full 32-channel load switching tests, diagnostic loop-back checks, and thermal burn-in on live test chassis before receiving a QA clearance pass.
Q: What warranty is provided with this module?
A: We back all New Surplus and reconditioned Triconex 3451 modules with a full 1-year functional replacement warranty.
Q: What happens if a single solid-state switch fails on a channel?
A: Because the 3451 incorporates internal voter circuitry across three output paths, a single switch failure (open or shorted) is detected by internal diagnostics and reported to the controller, while the remaining switches maintain the correct output state without triggering a false trip or failing to actuate.
