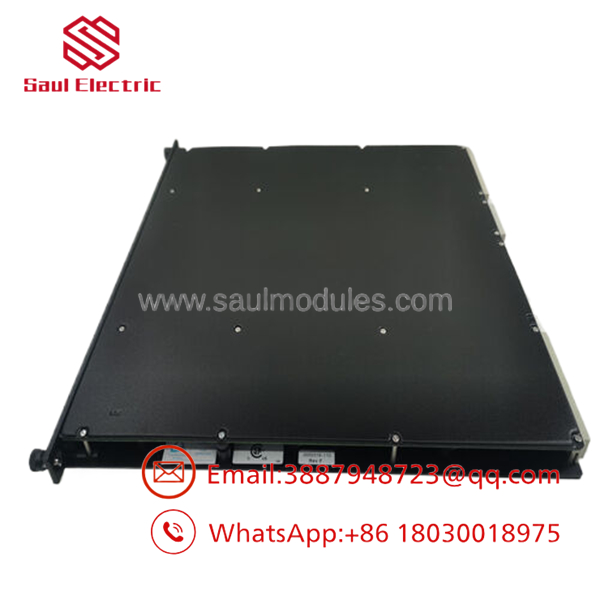

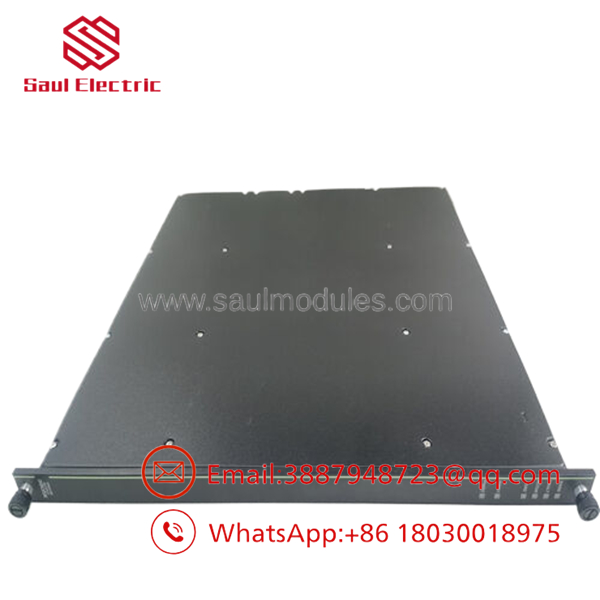

Triconex 3805E Analog Output Module TMR Safety System Parts

Description

Product Introduction & Engineering Value

Controlling critical throttling actuators—like turbine governor valves or anti-surge bypass line positioners—leaves zero room for output drift or runaway signals. The Triconex 3805E Analog Output module drives up to 8 individual 4–20 mA current loops using Tricon’s proven Triple Modular Redundant (TMR) architecture.

Rather than relying on a single digital-to-analog converter (DAC), the 3805E uses three independent internal output channels that continuously vote on command signals from the Main Processors. Onboard dual-loop feedback circuits verify output current at the field terminal level, ensuring that an internal component fault or individual DAC failure never mispositions a safety valve or triggers an unintended process trip.

Technical Specifications

Field Application & The “Trench” Experience

The Trench Story

During a winter startup at an ethylene plant in Alberta, an anti-surge control valve on a main cracked-gas compressor began oscillating violently. Diagnostics flagged channel 3 on an aging analog output card as unable to hold a steady 12.4 mA positioning signal due to thermal drift in its output driver. Site technicians brought a pre-tested surplus Triconex 3805E from storage and inserted it into the secondary hot-spare slot on the Tricon chassis. The Main Processors recognized the module, verified firmware alignment, synchronized output registers, and seamlessly transferred current control—stabilizing valve positioning and preventing a compressor trip without disturbing throughput.

Specific Field Application Scenarios

1. Compressor Anti-Surge Control: Driving high-speed electro-hydraulic actuators on centrifugal compressor recycling loops.
2. Turbine Steam Governor Valves: Precision positioning of steam admission valves on critical mechanical-drive turbines.
3. Fuel Gas Pressure Regulation: Controlling modulating control valves on high-pressure gas headers for large power boilers.

3805E

3805E

Transparency SOP: QA & Testing

• Step 1: Visual & Pin Alignment Inspection

  We check backplane edge connectors, inspect PCB trace condition, verify conformal coatings, and test mechanical locking latches.

• Step 2: Live Chassis Initialization

  The 3805E is powered up inside a live Tricon test chassis to verify triple power rail health, microprocessor startup, and TriBus backplane communications.

• Step 3: Multi-Point Current Loop Verification

  Using precision current meters across all 8 channels simultaneously, we command outputs across 4.00 mA, 8.00 mA, 12.00 mA, 16.00 mA, and 20.00 mA. We verify 12-bit conversion linearity and ensure accuracy stays within ±0.2%.

• Step 4: Loop Load Stress & Diagnostic Validation

  We vary external loop resistance from 100 Ω up to 750 Ω while monitoring diagnostic loopback circuits to confirm zero false current-fault flags under full field loading.

The Veteran’s Tech Trap Guide

⚠️ External 24 VDC Loop Power Required: The 3805E does not source 24 VDC loop power to the field terminals internally. The module acts as a precision current regulator on an externally powered loop. If you land a 2-wire control valve actuator without connecting an external 24 VDC supply to the External Termination Panel (ETP), the output loop will remain completely dead (0 mA).

PRO TIP: Managing Hot-Spare Synchronization

When inserting a 3805E into an active system as a hot-spare, ensure that the field loop cabling on the ETP is fully landed and the external 24 VDC loop supply is energizing the termination panel. If the module detects missing external loop voltage on insertion, it may fail initial health checks and decline to sync with the active primary card.

⚠️ Checking Field Loop Impedance: The maximum load driving capacity of the 3805E is 750 Ω at 24 VDC. If long field cable runs combined with I/P positioner coil resistance exceed 750 Ω, the output driver will rail at a lower current limit (e.g., topping out at 17.5 mA instead of reaching 20.0 mA). Always calculate total loop impedance before commissioning long field runs.

Dynamic FAQ

Q: Is the Triconex 3805E hot-swappable in an active Tricon chassis?

A: Yes. The 3805E supports online hot replacement. Inserting a replacement module into an adjacent slot allows the Main Processors to run background diagnostics and synchronize current-command registers before taking over active loop driving.

Q: Can the 3805E output voltage signals (e.g., 0–10 VDC) directly?

A: No. The 3805E is engineered specifically for 4–20 mA current loops. If your final control element requires a voltage input, you must install precision parallel load resistors on the termination panel or use an external I/V signal converter.

Q: What is the primary operational difference between the 3805E and older 3805 series cards?

A: The 3805E is an enhanced revision featuring updated onboard microprocessor components and improved noise immunity across field lines while maintaining drop-in functional backward compatibility with standard Tricon chassis slots and ETP assemblies.

Q: What warranty and test documentation do you supply with surplus 3805E modules?

A: All New Surplus and reconditioned 3805E modules are backed by a full 1-year functional replacement warranty and arrive complete with multi-point bench calibration reports.

Q: What happens if an output driver on one leg of the 3805E fails?

A: Because the 3805E uses a vote-and-conduct output architecture, a failure on a single internal leg is out-voted by the remaining two healthy channels. The system logs a hardware alarm in TriStation 1131, but the 4–20 mA field output signal remains stable and accurate.
